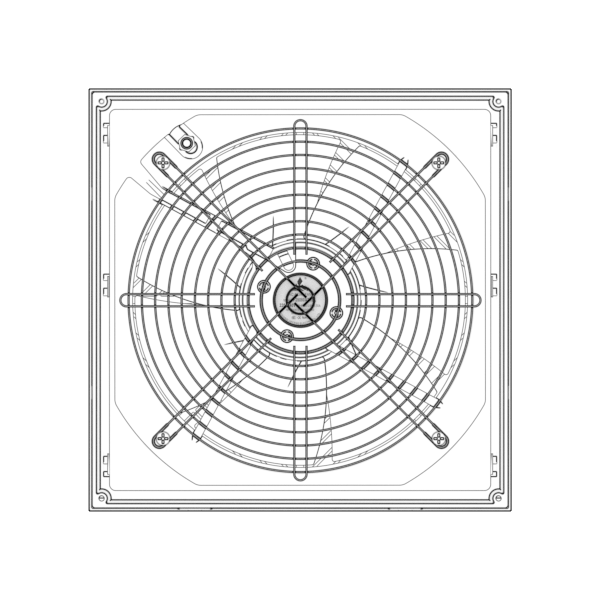

JW6608.220
JW6608.220 from Jiefeng Electric. AC Cabinet Filter Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM …
Product overview
Product dimension drawing: Unit: mm Specification Table: Model Voltage Freq Bearing Current Power Speed Airflow Noise PART.NO. VAC Freq Bearing AMP Watt RPM M ³ /min CFM dBA JW6608.110 110 50/60 BALL 1.50/1.00 165.0/110.0 2550/2700 15.43/16.00 545.0/565.0 68/70 JW6608.220 220 50/60 BALL 0.82/0.60 180.4/132.0 2550/2700 15.43/16.00 545.0/565.0 68/70 JW6608.380 380 50/60 BALL 0.35/0.30 133.0/114.0 2550/2700 15.43/16.00 545.0/565.0 68/70
Product specifications
- productType
- 过滤器
- brand
- JIEFENGFAN
- correspondingFan
- 28080
- netCoverMaterial
- ABS
- netCoverColor
- RAL7032/RAL7035/RAL9005
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 7
- overallSize
- 324.0*324.0 MM
- Ventilation Opening Size
- 291.0*291.0 MM
- motorType
- 罩极电机/感应异步外转子
- insulationClass
- B级
- driveType
- 滚珠
- powerType
- 交流
- ratedVoltage
- 110V/220V/380V
- ratedPower
- 110.0/180.4 W
- workingTemperature
- -10℃~+55℃
- workingHumidity
- 30%~70%RH
- speed
- 2550/2700 RPM
- airFlow
- 545.0/565.0 CFM
- noiseLevel
- 70 dBA
- protectionGrade
- IP54
- lifeSpan
- 40000 h
- weight
- 3538.3 g
- wiringMethod
- 引线/端子/插片
- safetyCertification
- 3C/CE/ROHS
