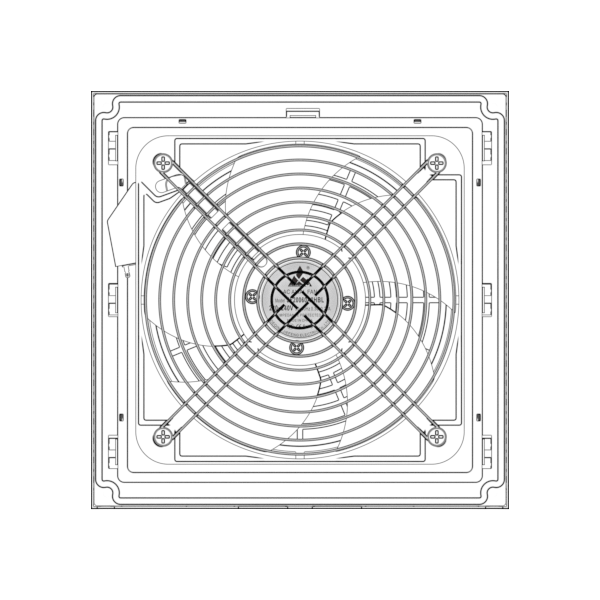

JW6606.220
Product Parameters:
- Brand：
- JIEFENGFAN
- Corresponding Fan：
- 20060
- Guard Material：
- ABS
- Guard Color：
- RAL7032/RAL7035/RAL9005
- Impeller Material：
- Plastic PBT+28%GF
- Blade Quantity：
- 5
- Overall Size：
- 255.0*255.0 MM
- Ventilation Opening Size：
- 222.0*222.0 MM
- Motor Type：
- Shaded Pole Motor/感应异步External Rotor
- Insulation Class：
- Class B
- Drive Type：
- Ball
- Power Type：
- AC
- Rated Voltage：
- 110V/220V/380V
- Rated Power：
- 38.0/79.2 W
- Working Temperature：
- -10℃~+55℃
- Working Humidity：
- 30%~70%RH
- Speed：
- 2400/3050 RPM
- Air Flow：
- 180.0/210.0 CFM
- Noise Level：
- 66 dBA
- Protection Grade：
- IP54
- Life Span：
- 40000 h
- Weight：
- 1632.2/1715.2 g
- Connection Method：
- Lead Wire/Terminal/Terminal
- Safety Certification：
- 3C/CE/ROHS
Product dimension drawing:
Unit: mm
Specification Table:
| Model | Voltage | Freq | Bearing | Current | Power | Speed | Airflow | Noise | |
| PART.NO. | VAC | Freq | Bearing | AMP | Watt | RPM | M³/min | CFM | dBA |
| JW6606.110 | 110 | 50/60 | BALL | 0.60/0.58 | 66.0/63.8 | 2400/2700 | 5.10/5.41 | 180.0/191.0 | 62/66 |
| JW6606.220 | 220 | 50/60 | BALL | 0.36/0.34 | 79.2/74.8 | 2400/2700 | 5.10/5.41 | 180.0/191.0 | 62/66 |
| JW6606.380 | 380 | 50/60 | BALL | 0.17/0.16 | 64.6/60.8 | 2400/2700 | 5.10/5.41 | 180.0/191.0 | 62/66 |
| JW6616.110 | 110 | 50/60 | BALL | 0.40/0.36 | 44.0/39.6 | 2600/3050 | 5.38/5.95 | 190.0/210.0 | 62/66 |
| JW6616.220 | 220 | 50/60 | BALL | 0.21/0.18 | 46.2/39.6 | 2600/3050 | 5.38/5.95 | 190.0/210.0 | 62/66 |
| JW6616.380 | 380 | 50/60 | BALL | 0.12/0.10 | 45.6/38.0 | 2600/3050 | 5.38/5.95 | 190.0/210.0 | 62/66 |
