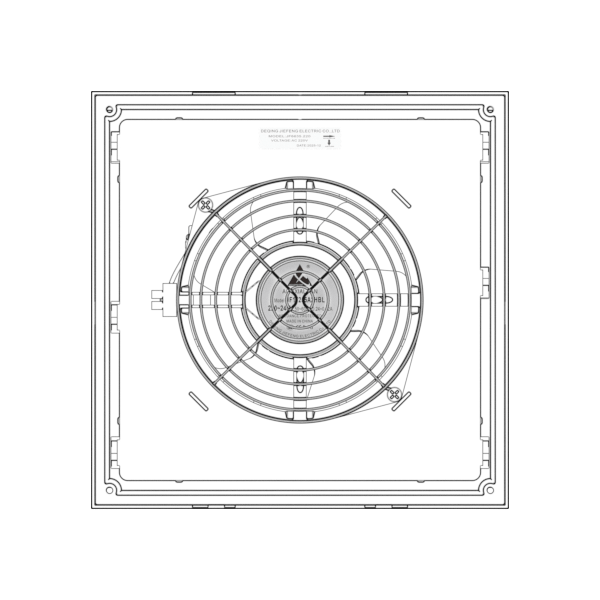

JW6605.220
JW6605.220 from Jiefeng Electric. AC Cabinet Filter Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM …
Product overview

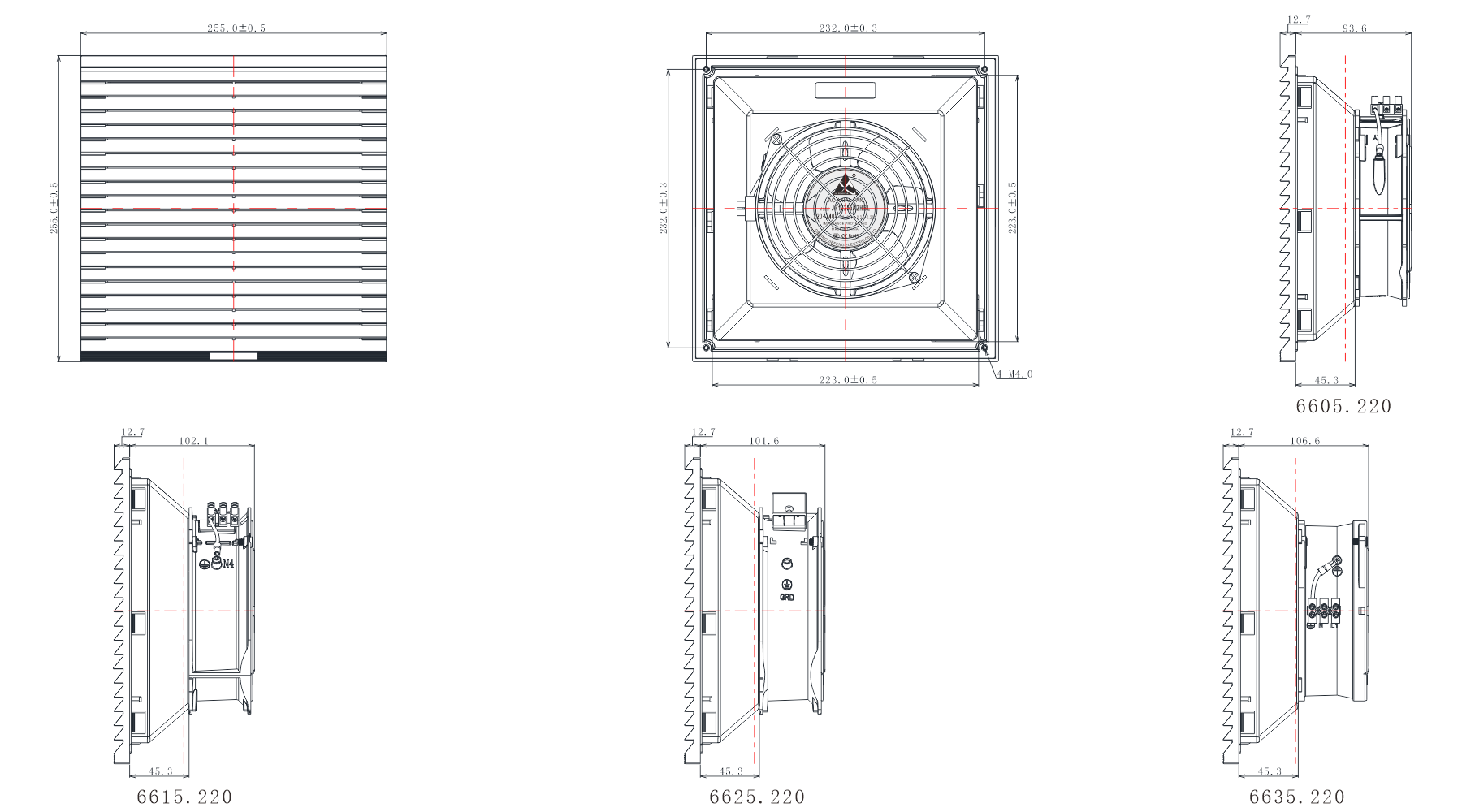

Product dimension drawing: Unit: mm Specification Table: Model Voltage Freq Bearing Current Power Speed Airflow Noise PART.NO. VAC Freq Bearing AMP Watt RPM M ³ /min CFM dBA JW6605.110 110 50/60 BALL 0.37/0.35 40.7/38.5 2600/2800 2.27/2.69 80.0/95.0 52/59 JW6605.220 220 50/60 BALL 0.19/0.17 41.8/37.4 2600/2800 2.27/2.69 80.0/95.0 52/59 JW6605.380 380 50/60 BALL 0.09/0.08 34.2/30.4 2600/2800 2.27/2.69 80.0/95.0 52/59 JW6615.110 110 50/60 BALL 0.42/0.40 46.2/44.0 2750/3200 2.48/2.83 87.5/100 53/59 JW6615.220 220 50/60 BALL 0.22/0.20 48.4/44.0 2750/3200 2.48/2.83 87.5/100 53/59 JW6615.380 380 50/60 BALL 0.12/0.11 45.6/41.8 2750/3200 2.48/2.83 87.5/100 53/59 JW6625.110 110 50/60 BALL 0.23/0.21 25.3/23.1 2750/3200 2.76/3.26 97.5/115.0 56/63 JW6625.220 220 50/60 BALL 0.12/0.11 26.4/24.2 2750/3200 2.76/3.26 97.5/115.0 56/63 JW6625.380 380 50/60 BALL 0.07/0.06 26.6/22.8 2750/3200 2.76/3.26 97.5/115.0 56/63 JW6635.110 110 50/60 BALL 0.48/0.46 52.8/50.6 2400/2500 2.62/2.83 92.5/100.0 48/52 JW6635.220 220 50/60 BALL 0.25/0.23 55.0/50.6 2400/2500 2.62/2.83 92.5/100.0 48/52 JW6635.380 380 50/60 BALL 0.13/0.11 49.4/41.8 2400/2500 2.62/2.83 92.5/100.0 48/52
Product specifications
- productType
- 过滤器
- brand
- JIEFENGFAN
- correspondingFan
- 17243,17251,17255
- netCoverMaterial
- ABS
- netCoverColor
- RAL7032/RAL7035/RAL9005
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 5/7
- overallSize
- 255.0*255.0 MM
- Ventilation Opening Size
- 223.0*223.0 MM
- motorType
- 罩极电机
- insulationClass
- B级
- driveType
- 滚珠
- powerType
- 交流
- ratedVoltage
- 110V/220V/380V
- ratedPower
- 22.8/55.0 W
- workingTemperature
- -10℃~+55℃
- workingHumidity
- 30%~70%RH
- speed
- 2400/3200 RPM
- airFlow
- 80.0/115.0 CFM
- noiseLevel
- 59 dBA
- protectionGrade
- IP54
- lifeSpan
- 40000 h
- weight
- 1191.1/1404.5 g
- wiringMethod
- 引线/端子/插片
- safetyCertification
- 3C/CE/ROHS
