JW5505.24
Product Parameters:
- Brand：
- JIEFENGFAN
- Corresponding Fan：
- 15050,17251,18060,20060,22060
- Guard Material：
- ABS
- Guard Color：
- RAL7032/RAL7035/RAL9005
- Impeller Material：
- Plastic PBT+28%GF
- Blade Quantity：
- 5/7
- Overall Size：
- 258.0*258.0 MM
- Mounting Size：
- 233.0*233.0 MM
- Mounting Hole Diameter：
- M4.0
- Ventilation Opening Size：
- 222.5*222.5 MM
- Motor Type：
- 无刷Motor
- Insulation Class：
- Class B
- Drive Type：
- Ball
- Power Type：
- DC
- Rated Voltage：
- 12V/24V/48V
- Rated Power：
- 28.8/35.04 W
- Working Temperature：
- -10℃~+55℃
- Working Humidity：
- 30%~70%RH
- Speed：
- 2500/3000 RPM
- Air Flow：
- 104.70/256.70 CFM
- Noise Level：
- 60.0 dBA
- Protection Grade：
- IP54
- Life Span：
- 40000 h
- Weight：
- 974.1/1507.2 g
- Connection Method：
- Lead Wire/Terminal/Terminal
- Safety Certification：
- 3C/CE/ROHS

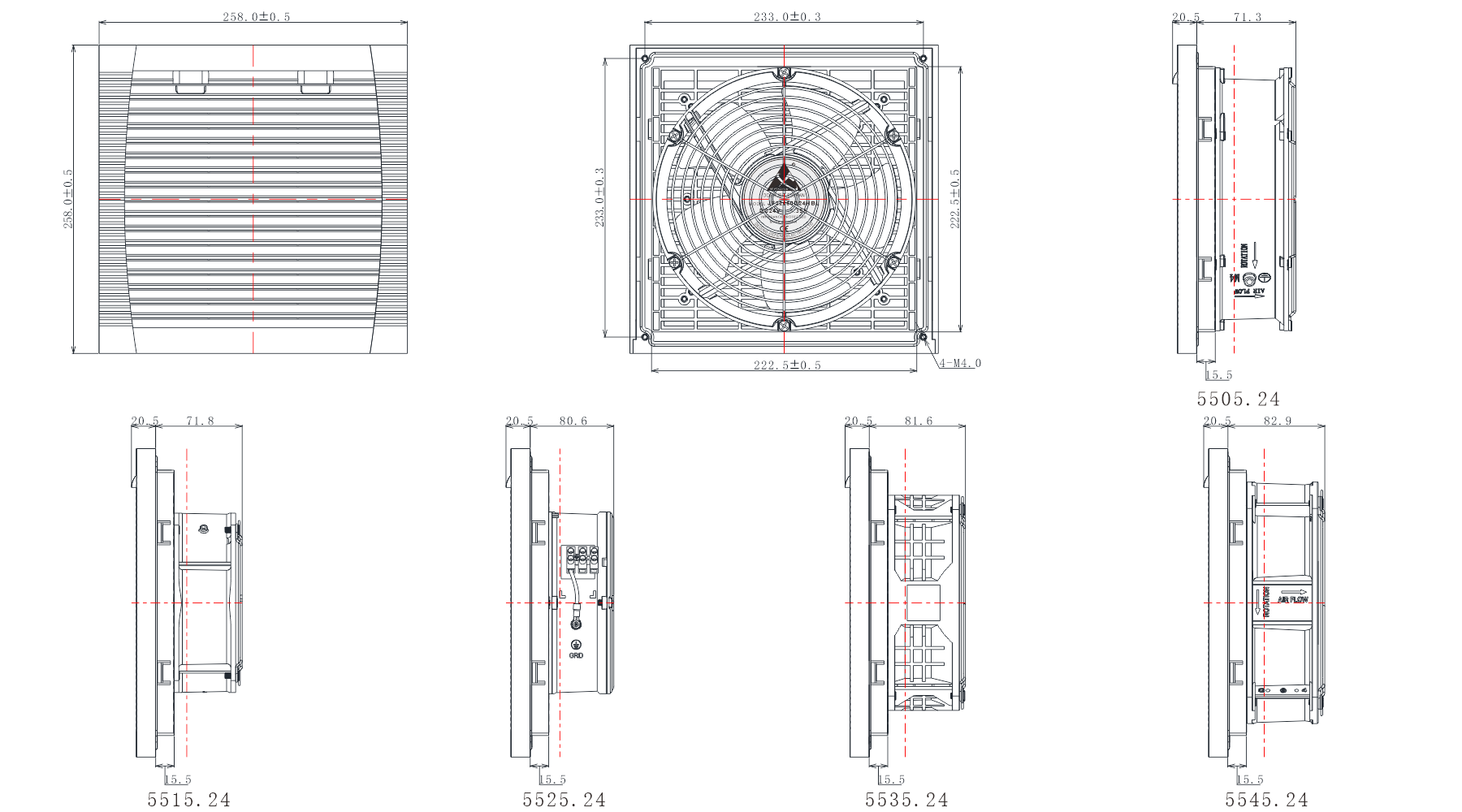

Product dimension drawing:
Unit: mm
Specification Table:
| Model | Voltage | Bearing | Current | Power | Speed | Airflow | Noise | |
| PART.NO. | VDC | Bearing | AMP | Watt | RPM | M³/min | CFM | dBA |
| JW5505.12 | 12 | BALL | 2.40 | 28.80 | 3000 | 2.96 | 104.70 | 58.3 |
| JW5505.24 | 24 | BALL | 1.20 | 28.80 | 3000 | 2.96 | 104.70 | 58.3 |
| JW5505.48 | 48 | BALL | 0.60 | 28.80 | 3000 | 2.96 | 104.70 | 58.3 |
| JW5515.12 | 12 | BALL | 2.40 | 28.80 | 3000 | 2.96 | 104.70 | 58.3 |
| JW5515.24 | 24 | BALL | 1.20 | 28.80 | 3000 | 2.96 | 104.70 | 58.3 |
| JW5515.48 | 48 | BALL | 0.60 | 28.80 | 3000 | 2.96 | 104.70 | 58.3 |
| JW5525.12 | 12 | BALL | 2.80 | 33.60 | 2500 | 4.57 | 161.45 | 58.9 |
| JW5525.24 | 24 | BALL | 1.40 | 33.60 | 2500 | 4.57 | 161.45 | 58.9 |
| JW5525.48 | 48 | BALL | 0.70 | 33.60 | 2500 | 4.57 | 161.45 | 58.9 |
| JW5535.12 | 12 | BALL | 2.92 | 35.04 | 2500 | 7.27 | 256.70 | 60.0 |
| JW5535.24 | 24 | BALL | 1.39 | 33.36 | 2500 | 7.27 | 256.70 | 60.0 |
| JW5535.48 | 48 | BALL | 0.66 | 31.68 | 2500 | 7.27 | 256.70 | 60.0 |
| JW5545.12 | 12 | BALL | 2.92 | 35.04 | 2500 | 7.27 | 256.70 | 60.0 |
| JW5545.24 | 24 | BALL | 1.39 | 33.36 | 2500 | 7.27 | 256.70 | 60.0 |
| JW5545.48 | 48 | BALL | 0.66 | 31.68 | 2500 | 7.27 | 256.70 | 60.0 |
