JW5506.220
JW5506.220 from Jiefeng Electric. AC Cabinet Filter Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM …
Product overview

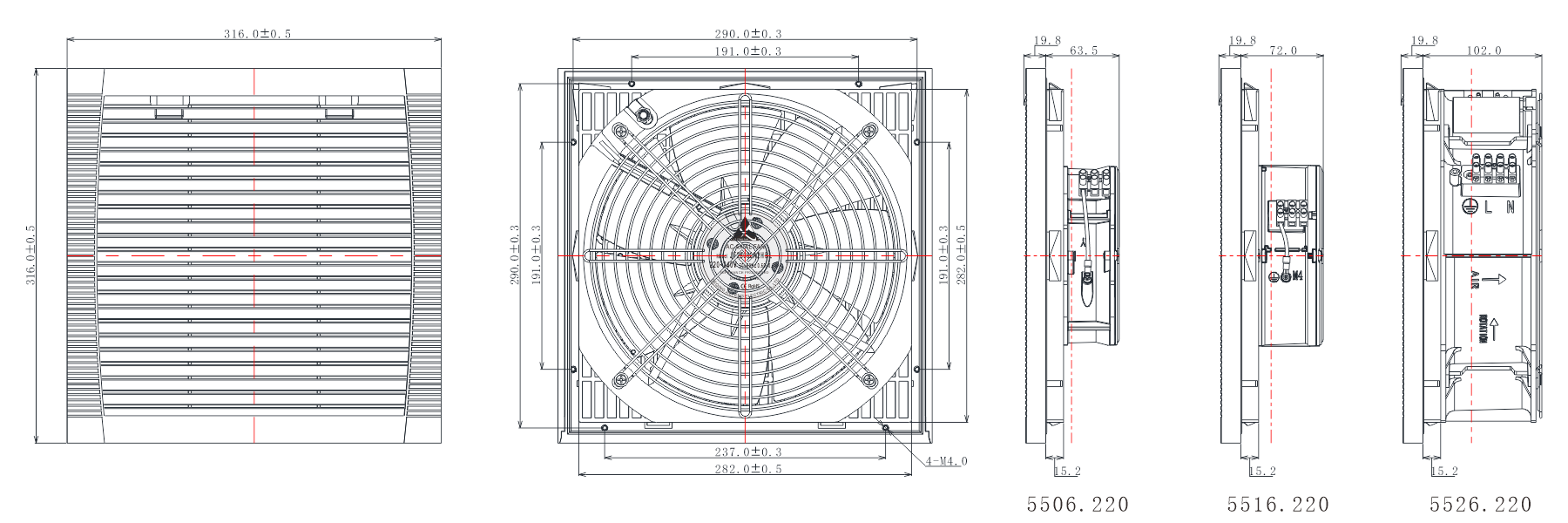

Product dimension drawing: Unit: mm Specification Table: Model Voltage Freq Bearing Current Power Speed Airflow Noise PART.NO. VAC Freq Bearing AMP Watt RPM M ³ /min CFM dBA JW5506.110 110 50/60 BALL 0.37/0.35 40.7/38.5 2600/2800 2.27/2.69 80.0/95.0 52/59 JW5506.220 220 50/60 BALL 0.19/0.17 41.8/37.4 2600/2800 2.27/2.69 80.0/95.0 52/59 JW5506.380 380 50/60 BALL 0.09/0.08 34.2/30.4 2600/2800 2.27/2.69 80.0/95.0 52/59 JW5516.110 110 50/60 BALL 0.42/0.40 46.2/44.0 2750/3200 2.48/2.83 87.5/100.0 53/59 JW5516.220 220 50/60 BALL 0.22/0.20 48.4/44.0 2750/3200 2.48/2.83 87.5/100.0 53/59 JW5516.380 380 50/60 BALL 0.12/0.11 45.6/41.8 2750/3200 2.48/2.83 87.5/100.0 53/59 JW5526.110 110 50/60 BALL 1.50/1.00 165.0/110.0 2550/2700 15.43/16.00 545.0/565.0 68/70 JW5526.220 220 50/60 BALL 0.82/0.60 180.4/132.0 2550/2700 15.43/16.00 545.0/565.0 68/70 JW5526.380 380 50/60 BALL 0.35/0.30 133.0/114.0 2550/2700 15.43/16.00 545.0/565.0 68/70
Product specifications
- productType
- 过滤器
- brand
- JIEFENGFAN
- correspondingFan
- 17243,17251,28080
- netCoverMaterial
- ABS
- netCoverColor
- RAL7032/RAL7035/RAL9005
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 5/7
- overallSize
- 316.0*316.0 MM
- mountingSize
- 289.0*289.0 MM
- mountingHoleDiameter
- M4.0
- Ventilation Opening Size
- 282.0*282.0 MM
- motorType
- 罩极电机/感应异步外转子
- insulationClass
- B级
- driveType
- 滚珠
- powerType
- 交流
- ratedVoltage
- 110V/220V/380V
- ratedPower
- 30.4/180.4 W
- workingTemperature
- -10℃~+55℃
- workingHumidity
- 30%~70%RH
- speed
- 2550/3200 RPM
- airFlow
- 80.0/565.0 CFM
- noiseLevel
- 70 dBA
- protectionGrade
- IP54
- lifeSpan
- 40000 h
- weight
- 1377.6/3564.8 g
- wiringMethod
- 引线/端子/插片
- safetyCertification
- 3C/CE/ROHS
