JW5505.220
JW5505.220 from Jiefeng Electric. AC Cabinet Filter Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM …
Product overview

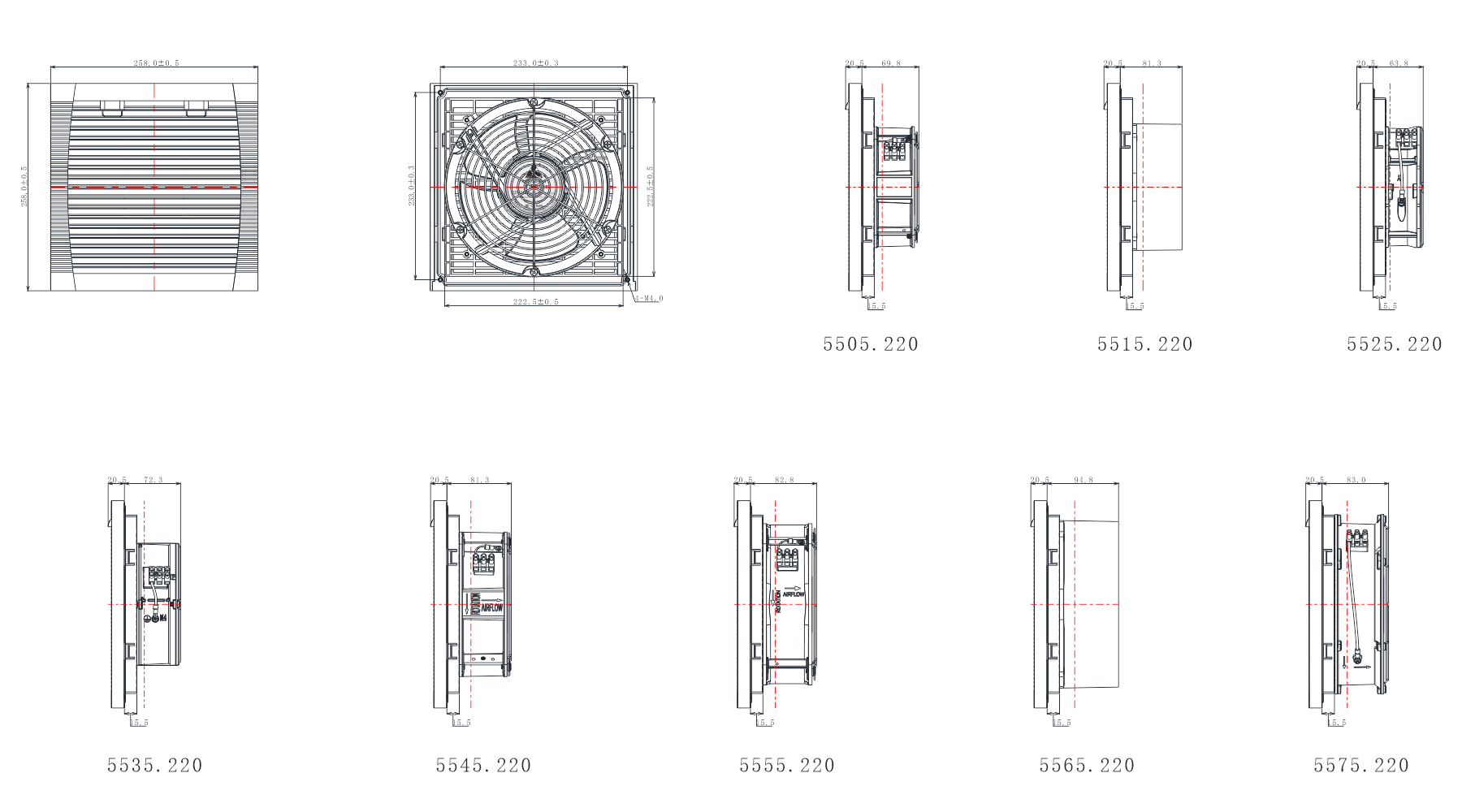

Product dimension drawing: Unit: mm Specification Table: Model Voltage Freq Bearing Current Power Speed Airflow Noise PART.NO. VAC Freq Bearing AMP Watt RPM M ³ /min CFM dBA JW5505.110 110 50/60 BALL 0.42/0.40 46.2/44.0 2750/3200 2.48/2.83 87.5/100 53/59 JW5505.220 220 50/60 BALL 0.22/0.20 48.4/44.0 2750/3200 2.48/2.83 87.5/100 53/59 JW5505.380 380 50/60 BALL 0.12/0.11 45.6/41.8 2750/3200 2.48/2.83 87.5/100 53/59 JW5515.110 110 50/60 BALL 0.32/0.28 35.2/30.8 2900/3200 2.76/3.11 97.5/110 65/68 JW5515.220 220 50/60 BALL 0.13/0.11 28.6/24.2 2900/3200 2.76/3.11 97.5/110 65/68 JW5515.380 380 50/60 BALL 0.11/0.10 41.8/38.0 2900/3200 2.76/3.11 97.5/110 65/68 JW5525.110 110 50/60 BALL 0.37/0.35 40.7/38.5 2600/2800 2.27/2.69 80.0/95.0 52/59 JW5525.220 220 50/60 BALL 0.19/0.17 41.8/37.4 2600/2800 2.27/2.69 80.0/95.0 52/59 JW5525.380 380 50/60 BALL 0.09/0.08 34.2/30.4 2600/2800 2.27/2.69 80.0/95.0 52/59 JW5535.110 110 50/60 BALL 0.42/0.40 46.2/44.0 2750/3200 2.48/2.83 87.5/100 53/59 JW5535.220 220 50/60 BALL 0.22/0.20 48.4/44.0 2750/3200 2.48/2.83 87.5/100 53/59 JW5535.380 380 50/60 BALL 0.12/0.11 45.6/41.8 2750/3200 2.48/2.83 87.5/100 53/59 JW5545.110 110 50/60 BALL 0.50/0.48 55.0/52.8 2700/2800 3.75/4.25 132.5/150.0 60/64 JW5545.220 220 50/60 BALL 0.27/0.25 59.4/55.0 2700/2800 3.75/4.25 132.5/150.0 60/64 JW5545.380 380 50/60 BALL 0.13/0.12 49.4/45.6 2700/2800 3.75/4.25 132.5/150.0 60/64 JW5555.110 110 50/60 BALL 0.60/0.58 66.0/63.8 2400/2700 5.10/5.41 180.0/191.0 62/66 JW5555.220 220 50/60 BALL 0.36/0.34 79.2/74.8 2400/2700 5.10/5.41 180.0/191.0 62/66 JW5555.380 380 50/60 BALL 0.17/0.16 64.6/60.8 2400/2700 5.10/5.41 180.0/191.0 62/66 JW5565.110 110 50/60 BALL 0.43/0.35 47.3/38.5 2600/2800 5.88/6.51 207.5/230.0 70/75 JW5565.220 220 50/60 BALL 0.26/0.20 57.2/44.0 2600/2800 5.88/6…
Product specifications
- productType
- 过滤器
- brand
- JIEFENGFAN
- correspondingFan
- 15050,16060,17243,17251,18060,20060,21070,22060
- netCoverMaterial
- ABS
- netCoverColor
- RAL7032/RAL7035/RAL9005
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 5/6
- overallSize
- 258.0*258.0 MM
- mountingSize
- 233.0*233.0 MM
- mountingHoleDiameter
- M4.0
- Ventilation Opening Size
- 222.5*222.5 MM
- motorType
- 罩极电机/感应异步外转子
- insulationClass
- B级
- driveType
- 滚珠
- powerType
- 交流
- ratedVoltage
- 110V/220V/380V
- ratedPower
- 24.2/79.2 W
- workingTemperature
- -10℃~+55℃
- workingHumidity
- 30%~70%RH
- speed
- 2400/3200 RPM
- airFlow
- 80.0/230.0 CFM
- noiseLevel
- 75 dBA
- protectionGrade
- IP54
- lifeSpan
- 40000 h
- weight
- 1130.1/1717.3 g
- wiringMethod
- 引线/端子/插片
- safetyCertification
- 3C/CE/ROHS
