JW5504.220
Product Parameters:
- Brand：
- JIEFENGFAN
- Corresponding Fan：
- 11025,12025,12038,15050,16060,17243,17251
- Guard Material：
- ABS
- Guard Color：
- RAL7032/RAL7035/RAL9005
- Impeller Material：
- Plastic PBT+28%GF
- Blade Quantity：
- 5/6
- Overall Size：
- 209.0*209.0 MM
- Mounting Size：
- 180.5*180.5 MM
- Mounting Hole Diameter：
- M4.0
- Ventilation Opening Size：
- 175.0*175.0 MM
- Motor Type：
- Shaded Pole Motor/感应异步External Rotor
- Insulation Class：
- Class B
- Drive Type：
- Ball
- Power Type：
- AC
- Rated Voltage：
- 110V/220V/380V
- Rated Power：
- 14.3/48.4 W
- Working Temperature：
- -10℃~+55℃
- Working Humidity：
- 30%~70%RH
- Speed：
- 2200/3200 RPM
- Air Flow：
- 29.0/100.0 CFM
- Noise Level：
- 68 dBA
- Protection Grade：
- IP54
- Life Span：
- 40000 h
- Weight：
- 570.5/1194.0 g
- Connection Method：
- Lead Wire/Terminal/Terminal
- Safety Certification：
- 3C/CE/ROHS

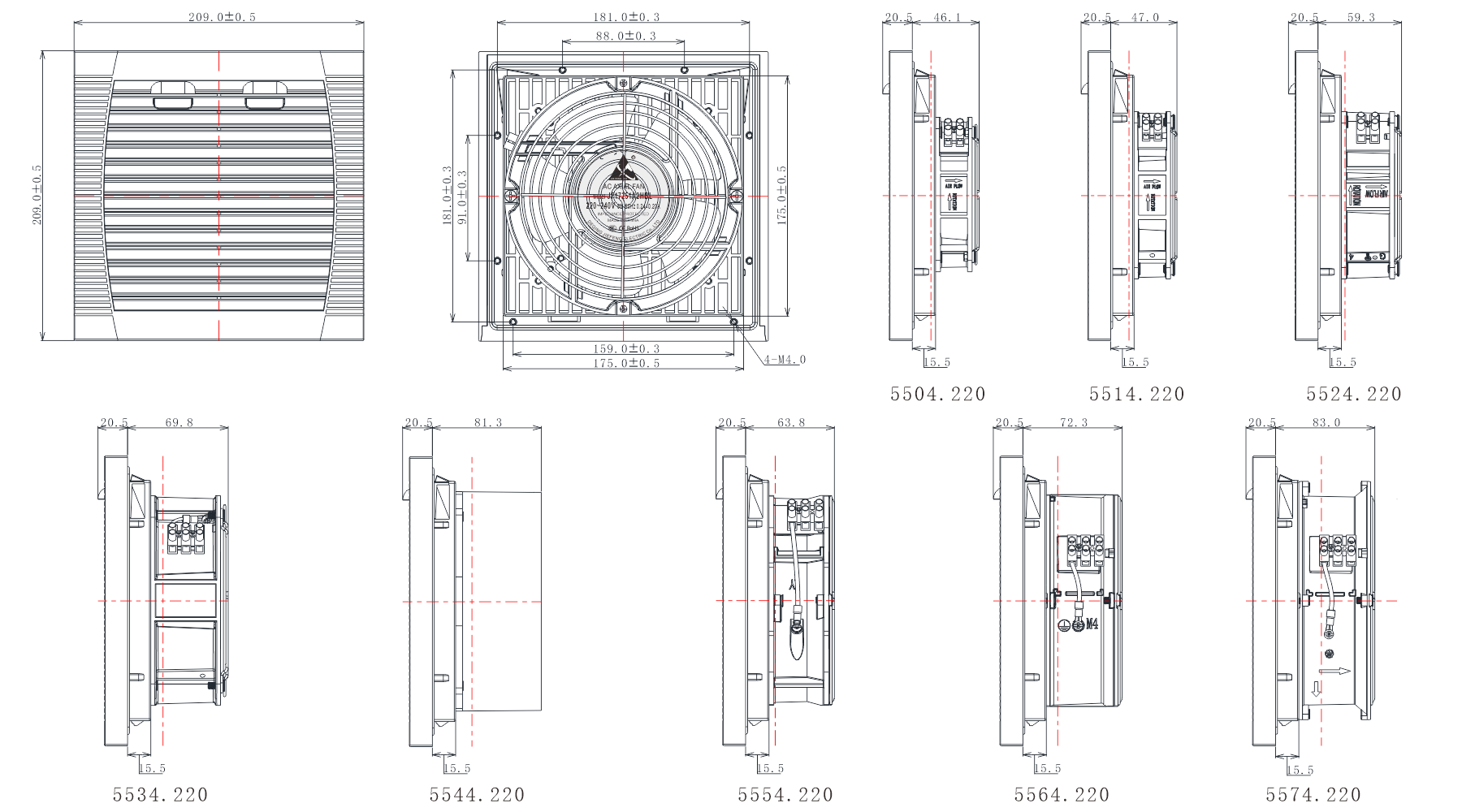

Product dimension drawing:
Unit: mm
Specification Table:
| Model | Voltage | Freq | Bearing | Current | Power | Speed | Airflow | Noise | |
| PART.NO. | VAC | Freq | Bearing | AMP | Watt | RPM | M³/min | CFM | dBA |
| JW5504.110 | 110 | 50/60 | BALL | 0.17/0.13 | 18.7/14.3 | 2300/2750 | 0.82/0.96 | 29.0/34.0 | 36/38 |
| JW5504.220 | 220 | 50/60 | BALL | 0.09/0.07 | 19.8/15.4 | 2300/2750 | 0.82/0.96 | 29.0/34.0 | 36/38 |
| JW5504.380 | 380 | 50/60 | BALL | 0.05/0.04 | 19.0/15.2 | 2300/2750 | 0.82/0.96 | 29.0/34.0 | 36/38 |
| JW5514.110 | 110 | 50/60 | BALL | 0.17/0.13 | 18.7/14.3 | 2200/2400 | 0.89/1.02 | 31.5/36.0 | 39/41 |
| JW5514.220 | 220 | 50/60 | BALL | 0.09/0.07 | 19.8/15.4 | 2200/2400 | 0.89/1.02 | 31.5/36.0 | 39/41 |
| JW5514.380 | 380 | 50/60 | BALL | 0.05/0.04 | 19.0/15.2 | 2200/2400 | 0.89/1.02 | 31.5/36.0 | 39/41 |
| JW5524.110 | 110 | 50/60 | BALL | 0.23/0.21 | 25.3/23.1 | 2600/3100 | 1.27/1.35 | 45.0/47.5 | 41/45 |
| JW5524.220 | 220 | 50/60 | BALL | 0.12/0.10 | 26.4/22.0 | 2600/3100 | 1.27/1.35 | 45.0/47.5 | 41/45 |
| JW5524.380 | 380 | 50/60 | BALL | 0.08/0.07 | 30.4/26.6 | 2600/3100 | 1.27/1.35 | 45.0/47.5 | 41/45 |
| JW5534.110 | 110 | 50/60 | BALL | 0.42/0.40 | 46.2/44.0 | 2750/3200 | 2.48/2.83 | 87.5/100 | 53/59 |
| JW5534.220 | 220 | 50/60 | BALL | 0.22/0.20 | 48.4/44.0 | 2750/3200 | 2.48/2.83 | 87.5/100 | 53/59 |
| JW5534.380 | 380 | 50/60 | BALL | 0.12/0.11 | 45.6/41.8 | 2750/3200 | 2.48/2.83 | 87.5/100 | 53/59 |
| JW5544.110 | 110 | 50/60 | BALL | 0.32/0.28 | 35.2/30.8 | 2900/3200 | 2.76/3.11 | 97.5/110 | 65/68 |
| JW5544.220 | 220 | 50/60 | BALL | 0.13/0.11 | 28.6/24.2 | 2900/3200 | 2.76/3.11 | 97.5/110 | 65/68 |
| JW5544.380 | 380 | 50/60 | BALL | 0.11/0.10 | 41.8/38.0 | 2900/3200 | 2.76/3.11 | 97.5/110 | 65/68 |
| JW5554.110 | 110 | 50/60 | BALL | 0.37/0.35 | 40.7/38.5 | 2600/2800 | 2.27/2.69 | 80.0/95.0 | 52/59 |
| JW5554.220 | 220 | 50/60 | BALL | 0.19/0.17 | 41.8/37.4 | 2600/2800 | 2.27/2.69 | 80.0/95.0 | 52/59 |
| JW5554.380 | 380 | 50/60 | BALL | 0.09/0.08 | 34.2/30.4 | 2600/2800 | 2.27/2.69 | 80.0/95.0 | 52/59 |
| JW5564.110 | 110 | 50/60 | BALL | 0.42/0.40 | 46.2/44.0 | 2750/3200 | 2.48/2.83 | 87.5/100 | 53/59 |
| JW5564.220 | 220 | 50/60 | BALL | 0.22/0.20 | 48.4/44.0 | 2750/3200 | 2.48/2.83 | 87.5/100 | 53/59 |
| JW5564.380 | 380 | 50/60 | BALL | 0.12/0.11 | 45.6/41.8 | 2750/3200 | 2.48/2.83 | 87.5/100 | 53/59 |
| JW5574.110 | 110 | 50/60 | BALL | 0.42/0.40 | 46.2/44.0 | 2750/3200 | 2.48/2.83 | 87.5/100 | 53/59 |
| JW5574.220 | 220 | 50/60 | BALL | 0.22/0.20 | 48.4/44.0 | 2750/3200 | 2.48/2.83 | 87.5/100 | 53/59 |
| JW5574.380 | 380 | 50/60 | BALL | 0.12/0.11 | 45.6/41.8 | 2750/3200 | 2.48/2.83 | 87.5/100 | 53/59 |
