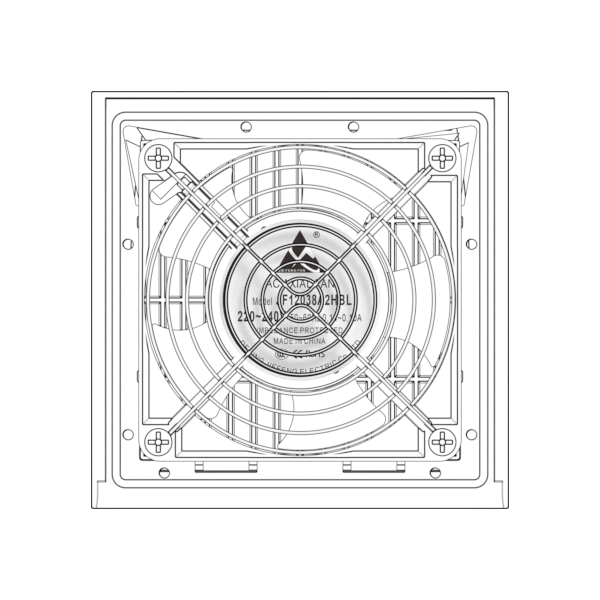

JW5503.220
JW5503.220 from Jiefeng Electric. AC Cabinet Filter Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM …
Product overview

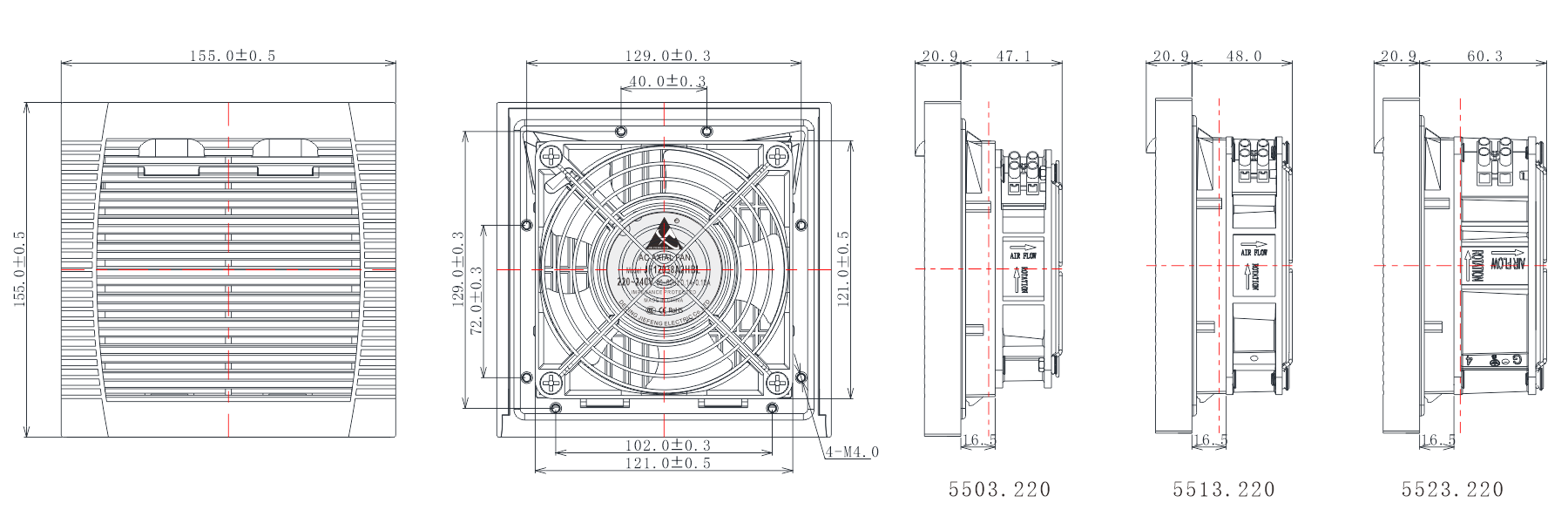

Product dimension drawing: Unit: mm Specification Table: Model Voltage Freq Bearing Current Power Speed Airflow Noise PART.NO. VAC Freq Bearing AMP Watt RPM M ³ /min CFM dBA JW5503.110 110 50/60 BALL 0.17/0.13 18.7/14.3 2300/2750 0.82/0.96 29.0/34.0 36/38 JW5503.220 220 50/60 BALL 0.09/0.07 19.8/15.4 2300/2750 0.82/0.96 29.0/34.0 36/38 JW5503.380 380 50/60 BALL 0.05/0.04 19.0/15.2 2300/2750 0.82/0.96 29.0/34.0 36/38 JW5513.110 110 50/60 BALL 0.17/0.13 18.7/14.3 2200/2400 0.89/1.02 31.5/36.0 39/41 JW5513.220 220 50/60 BALL 0.09/0.07 19.8/15.4 2200/2400 0.89/1.02 31.5/36.0 39/41 JW5513.380 380 50/60 BALL 0.05/0.04 19.0/15.2 2200/2400 0.89/1.02 31.5/36.0 39/41 JW5523.110 110 50/60 BALL 0.23/0.21 25.3/23.1 2600/3100 1.27/1.35 45.0/47.5 41/45 JW5523.220 220 50/60 BALL 0.12/0.10 26.4/22.0 2600/3100 1.27/1.35 45.0/47.5 41/45 JW5523.380 380 50/60 BALL 0.08/0.07 30.4/26.6 2600/3100 1.27/1.35 45.0/47.5 41/45
Product specifications
- productType
- 过滤器
- brand
- JIEFENGFAN
- correspondingFan
- 11025,12025,12038
- netCoverMaterial
- ABS
- netCoverColor
- RAL7032/RAL7035/RAL9005
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 5
- overallSize
- 155.0*155.0 MM
- mountingSize
- 128.0*128.0 MM
- mountingHoleDiameter
- M4.0
- Ventilation Opening Size
- 121.0*121.0 MM
- motorType
- 罩极电机
- insulationClass
- B级
- driveType
- 滚珠
- powerType
- 交流
- ratedVoltage
- 110V/220V/380V
- ratedPower
- 14.3/30.4 W
- workingTemperature
- -10℃~+55℃
- workingHumidity
- 30%~70%RH
- speed
- 2200/3100 RPM
- airFlow
- 29.0/47.5 CFM
- noiseLevel
- 45 dBA
- protectionGrade
- IP54
- lifeSpan
- 40000 h
- weight
- 462.5/651.4 g
- wiringMethod
- 引线/端子/插片
- safetyCertification
- 3C/CE/ROHS
Related products

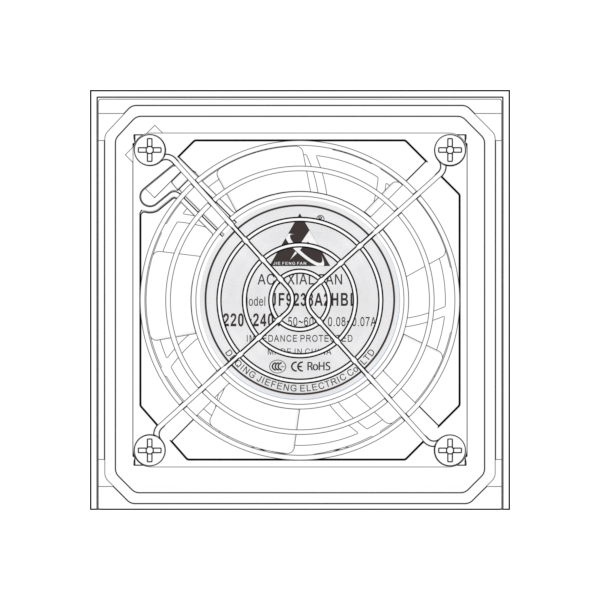

JW3302.220
Product dimension drawing: Unit: mm Specification Table: Model Voltage Freq Bearing Current Power Speed Airflow Noise PART.NO. VAC Freq Bea…

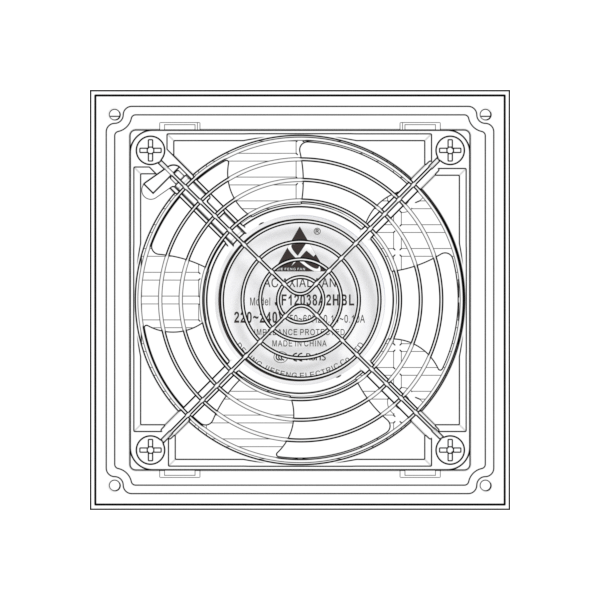

JW3303.220
Product dimension drawing: Unit: mm Specification Table: Model Voltage Freq Bearing Current Power Speed Airflow Noise PART.NO. VAC Freq Bea…
JW3304.220
Product dimension drawing: Unit: mm Specification Table: Model Voltage Freq Bearing Current Power Speed Airflow Noise PART.NO. VAC Freq Bea…
JW3305.220
Product dimension drawing: Unit: mm Specification Table: Model Voltage Freq Bearing Current Power Speed Airflow Noise PART.NO. VAC Freq Bea…
JW3306.220
Product dimension drawing: Unit: mm Specification Table: Model Voltage Freq Bearing Current Power Speed Airflow Noise PART.NO. VAC Freq Bea…

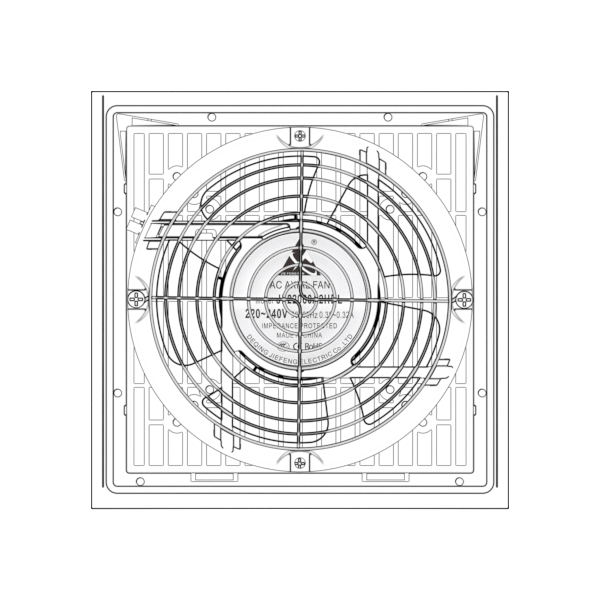

JW5504.220
