JW3306.24
JW3306.24 from Jiefeng Electric. DC Cabinet Filter Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM a…
Product overview

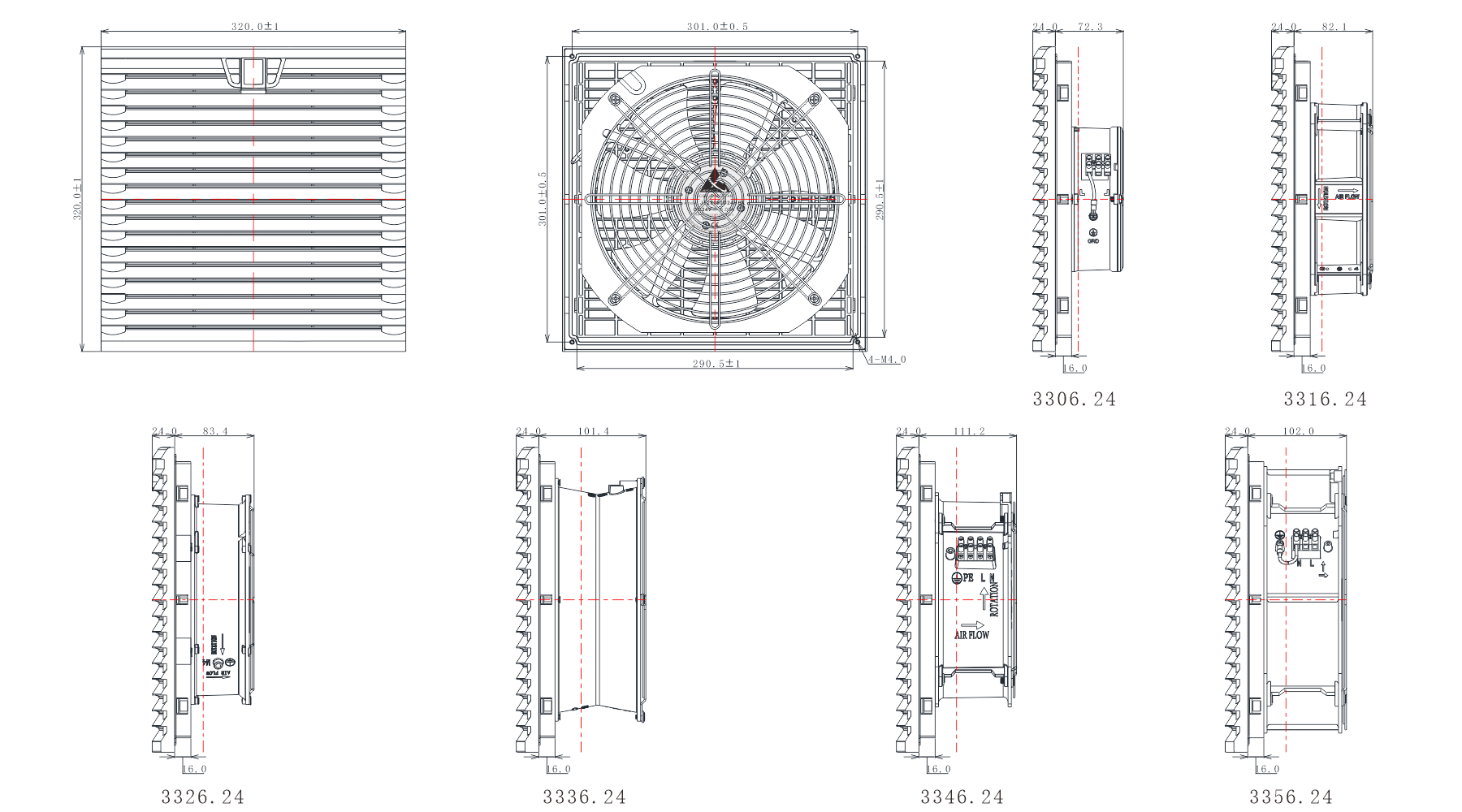

Product dimension drawing: Unit: mm Specification Table: Model Voltage Bearing Current Power Speed Airflow Noise PART.NO. VDC Bearing AMP Watt RPM M ³ /min CFM dBA JW3306.12 12 BALL 2.40 28.80 3000 2.96 104.70 58.3 JW3306.24 24 BALL 1.20 28.80 3000 2.96 104.70 58.3 JW3306.48 48 BALL 0.60 28.80 3000 2.96 104.70 58.3 JW3316.12 12 BALL 2.92 35.04 2500 7.27 256.70 60.0 JW3316.24 24 BALL 1.39 33.36 2500 7.27 256.70 60.0 JW3316.48 48 BALL 0.66 31.68 2500 7.27 256.70 60.0 JW3326.12 12 BALL 2.92 35.04 2500 7.27 256.70 60.0 JW3326.24 24 BALL 1.39 33.36 2500 7.27 256.70 60.0 JW3326.48 48 BALL 0.66 31.68 2500 7.27 256.70 60.0 JW3336.12 12 BALL 4.00 48.00 2700 9.61 339.35 66.9 JW3336.24 24 BALL 2.00 48.00 2700 9.61 339.35 66.9 JW3336.48 48 BALL 1.00 48.00 2700 9.61 339.35 66.9 JW3346.12 12 BALL 5.50 66.00 2500 9.79 345.90 71.2 JW3346.24 24 BALL 2.90 69.60 2500 9.79 345.90 71.2 JW3346.48 48 BALL 1.40 67.20 2500 9.79 345.90 71.2 JW3356.12 12 BALL 10.80 129.60 2800 16.43 580.21 71.3 JW3356.24 24 BALL 5.40 129.60 2800 16.43 580.21 71.3 JW3356.48 48 BALL 2.70 129.60 2800 16.43 580.21 71.3
Product specifications
- productType
- 过滤器
- brand
- JIEFENGFAN
- correspondingFan
- 17251,20060,22060,22580,25489,28080
- netCoverMaterial
- ABS
- netCoverColor
- RAL7032/RAL7035/RAL9005
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 5/6/7
- overallSize
- 320.0*320.0 MM
- mountingSize
- 301.0*301.0 MM
- mountingHoleDiameter
- M4.0
- Ventilation Opening Size
- 290.5*290.5 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 滚珠
- powerType
- 直流
- ratedVoltage
- 12V/24V/48V
- ratedPower
- 28.8/129.6 W
- workingTemperature
- -10℃~+55℃
- workingHumidity
- 30%~70%RH
- speed
- 2500/3000 RPM
- airFlow
- 104.70/580.21 CFM
- noiseLevel
- 71.3 dBA
- protectionGrade
- IP54
- lifeSpan
- 40000 h
- weight
- 1210.1/3172.3 g
- wiringMethod
- 引线/端子/插片
- safetyCertification
- 3C/CE/ROHS
