JW3306.220
Product Parameters:
- Brand：
- JIEFENGFAN
- Corresponding Fan：
- 17243,17251,20060,21070,22060,22580,25489,28080
- Guard Material：
- ABS
- Guard Color：
- RAL7032/RAL7035/RAL9005
- Impeller Material：
- Plastic PBT+28%GF
- Blade Quantity：
- 5/6/7/9
- Overall Size：
- 320.0*320.0 MM
- Mounting Size：
- 301.0*301.0 MM
- Mounting Hole Diameter：
- M4.0
- Ventilation Opening Size：
- 290.5*290.5 MM
- Motor Type：
- Shaded Pole Motor/感应异步External Rotor
- Insulation Class：
- Class B
- Drive Type：
- Ball
- Power Type：
- AC
- Rated Voltage：
- 110V/220V/380V
- Rated Power：
- 30.4/180.4 W
- Working Temperature：
- -10℃~+55℃
- Working Humidity：
- 30%~70%RH
- Speed：
- 2400/3200 RPM
- Air Flow：
- 80.0/565.0 CFM
- Noise Level：
- 75 dBA
- Protection Grade：
- IP54
- Life Span：
- 40000 h
- Weight：
- 1405.1/3592.3 g
- Connection Method：
- Lead Wire/Terminal/Terminal
- Safety Certification：
- 3C/CE/ROHS

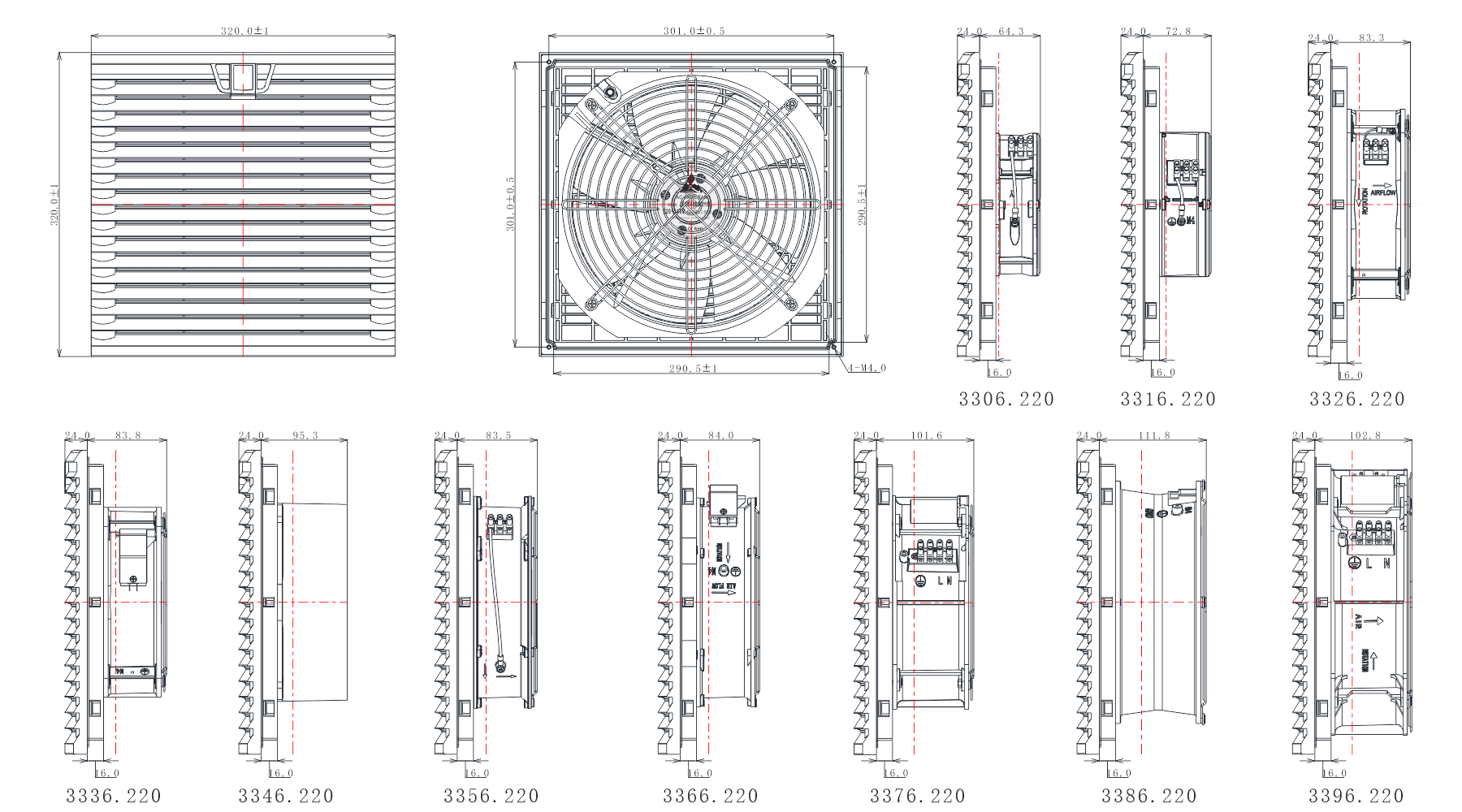

Product dimension drawing:
Unit: mm
Specification Table:
| Model | Voltage | Freq | Bearing | Current | Power | Speed | Airflow | Noise | |
| PART.NO. | VAC | Freq | Bearing | AMP | Watt | RPM | M³/min | CFM | dBA |
| JW3306.110 | 110 | 50/60 | BALL | 0.37/0.35 | 40.7/38.5 | 2600/2800 | 2.27/2.69 | 80.0/95.0 | 52/59 |
| JW3306.220 | 220 | 50/60 | BALL | 0.19/0.17 | 41.8/37.4 | 2600/2800 | 2.27/2.69 | 80.0/95.0 | 52/59 |
| JW3306.380 | 380 | 50/60 | BALL | 0.09/0.08 | 34.2/30.4 | 2600/2800 | 2.27/2.69 | 80.0/95.0 | 52/59 |
| JW3316.110 | 110 | 50/60 | BALL | 0.42/0.40 | 46.2/44.0 | 2750/3200 | 2.48/2.83 | 87.5/100.0 | 53/59 |
| JW3316.220 | 220 | 50/60 | BALL | 0.22/0.20 | 48.4/44.0 | 2750/3200 | 2.48/2.83 | 87.5/100.0 | 53/59 |
| JW3316.380 | 380 | 50/60 | BALL | 0.12/0.11 | 45.6/41.8 | 2750/3200 | 2.48/2.83 | 87.5/100.0 | 53/59 |
| JW3326.110 | 110 | 50/60 | BALL | 0.60/0.58 | 66.0/63.8 | 2400/2700 | 5.10/5.41 | 180.0/191.0 | 62/66 |
| JW3326.220 | 220 | 50/60 | BALL | 0.36/0.34 | 79.2/74.8 | 2400/2700 | 5.10/5.41 | 180.0/191.0 | 62/66 |
| JW3326.380 | 380 | 50/60 | BALL | 0.17/0.16 | 64.6/60.8 | 2400/2700 | 5.10/5.41 | 180.0/191.0 | 62/66 |
| JW3336.110 | 110 | 50/60 | BALL | 0.40/0.36 | 44.0/39.6 | 2600/3050 | 5.38/5.95 | 190.0/210.0 | 62/66 |
| JW3336.220 | 220 | 50/60 | BALL | 0.21/0.18 | 46.2/39.6 | 2600/3050 | 5.38/5.95 | 190.0/210.0 | 62/66 |
| JW3336.380 | 380 | 50/60 | BALL | 0.12/0.10 | 45.6/38.0 | 2600/3050 | 5.38/5.95 | 190.0/210.0 | 62/66 |
| JW3346.110 | 110 | 50/60 | BALL | 0.43/0.35 | 47.3/38.5 | 2600/2800 | 5.88/6.51 | 207.5/230.0 | 70/75 |
| JW3346.220 | 220 | 50/60 | BALL | 0.26/0.20 | 57.2/44.0 | 2600/2800 | 5.88/6.51 | 207.5/230.0 | 70/75 |
| JW3346.380 | 380 | 50/60 | BALL | 0.15/0.13 | 57.0/49.4 | 2600/2800 | 5.88/6.51 | 207.5/230.0 | 70/75 |
| JW3356.110 | 110 | 50/60 | BALL | 0.60/0.58 | 66.0/63.8 | 2400/2700 | 5.10/5.41 | 180.0/191.0 | 62/66 |
| JW3356.220 | 220 | 50/60 | BALL | 0.36/0.34 | 79.2/74.8 | 2400/2700 | 5.10/5.41 | 180.0/191.0 | 62/66 |
| JW3356.380 | 380 | 50/60 | BALL | 0.17/0.16 | 64.6/60.8 | 2400/2700 | 5.10/5.41 | 180.0/191.0 | 62/66 |
| JW3366.110 | 110 | 50/60 | BALL | 0.40/0.36 | 44.0/39.6 | 2600/3050 | 5.38/5.95 | 190.0/210.0 | 62/66 |
| JW3366.220 | 220 | 50/60 | BALL | 0.21/0.18 | 46.2/39.6 | 2600/3050 | 5.38/5.95 | 190.0/210.0 | 62/66 |
| JW3366.380 | 380 | 50/60 | BALL | 0.12/0.10 | 45.6/38.0 | 2600/3050 | 5.38/5.95 | 190.0/210.0 | 62/66 |
| JW3376.110 | 110 | 50/60 | BALL | 0.70/0.58 | 77.0/63.8 | 2550/2800 | 7.50/8.50 | 265.0/300.0 | 65/68 |
| JW3376.220 | 220 | 50/60 | BALL | 0.40/0.30 | 88.0/66.0 | 2550/2800 | 7.50/8.50 | 265.0/300.0 | 65/68 |
| JW3376.380 | 380 | 50/60 | BALL | 0.25/0.20 | 95.0/76.0 | 2550/2800 | 7.50/8.50 | 265.0/300.0 | 65/68 |
| JW3386.110 | 110 | 50/60 | BALL | 1.00/0.90 | 110.0/99.0 | 2500/2700 | 10.76/11.30 | 380.0/400.0 | 68/70 |
| JW3386.220 | 220 | 50/60 | BALL | 0.46/0.39 | 101.2/85.8 | 2500/2700 | 10.76/11.30 | 380.0/400.0 | 68/70 |
| JW3386.380 | 380 | 50/60 | BALL | 0.30/0.24 | 114.0/91.2 | 2500/2700 | 10.76/11.30 | 380.0/400.0 | 68/70 |
| JW3396.110 | 110 | 50/60 | BALL | 1.50/1.00 | 165.0/110.0 | 2550/2700 | 15.43/16.00 | 545.0/565.0 | 68/70 |
| JW3396.220 | 220 | 50/60 | BALL | 0.82/0.60 | 180.4/132.0 | 2550/2700 | 15.43/16.00 | 545.0/565.0 | 68/70 |
| JW3396.380 | 380 | 50/60 | BALL | 0.35/0.30 | 133.0/114.0 | 2550/2700 | 15.43/16.00 | 545.0/565.0 | 68/70 |
