JW3302.220
JW3302.220 from Jiefeng Electric. AC Cabinet Filter Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM …
Product overview

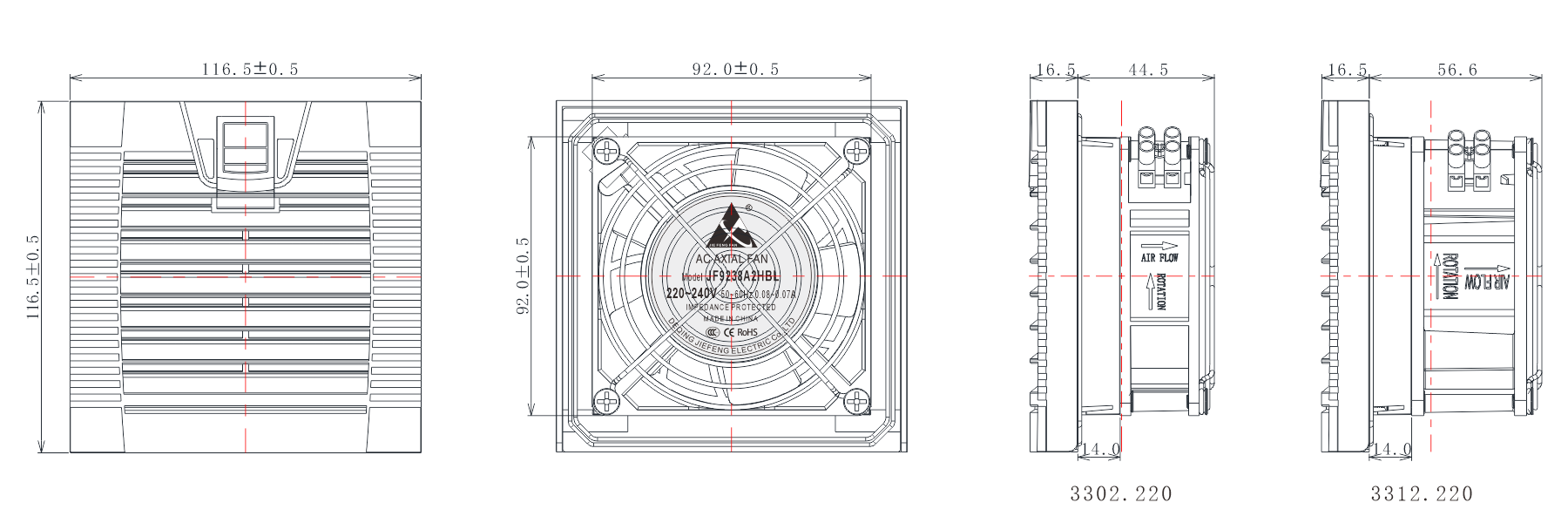

Product dimension drawing: Unit: mm Specification Table: Model Voltage Freq Bearing Current Power Speed Airflow Noise PART.NO. VAC Freq Bearing AMP Watt RPM M ³ /min CFM dBA JW3302.110 110 50/60 BALL 0.17/0.15 18.7/16.5 2450/3000 0.42/0.53 15.0/18.7 34/40 JW3302.220 220 50/60 BALL 0.09/0.07 19.8/15.4 2450/3000 0.42/0.53 15.0/18.7 34/40 JW3302.380 380 50/60 BALL 0.05/0.04 19.0/15.2 2450/3000 0.42/0.53 15.0/18.7 34/40 JW3312.110 110 50/60 BALL 0.19/0.16 20.9/17.6 2700/3100 0.55/0.65 19.5/23.0 38/48 JW3312.220 220 50/60 BALL 0.10/0.08 22.0/17.6 2700/3100 0.55/0.65 19.5/23.0 38/48 JW3312.380 380 50/60 BALL 0.05/0.04 19.0/15.2 2700/3100 0.55/0.65 19.5/23.0 38/48
Product specifications
- productType
- 过滤器
- brand
- JIEFENGFAN
- correspondingFan
- 9225,9238
- netCoverMaterial
- ABS
- netCoverColor
- RAL7032/RAL7035/RAL9005
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 5
- overallSize
- 116.5*116.5 MM
- Ventilation Opening Size
- 92.0*92.0 MM
- motorType
- 罩极电机
- insulationClass
- B级
- driveType
- 滚珠
- powerType
- 交流
- ratedVoltage
- 110V/220V/380V
- ratedPower
- 15.2/22.0 W
- workingTemperature
- -10℃~+55℃
- workingHumidity
- 30%~70%RH
- speed
- 2450/3100 RPM
- airFlow
- 15.0/23.0 CFM
- noiseLevel
- 48 dBA
- protectionGrade
- IP54
- lifeSpan
- 40000 h
- weight
- 351.0/469.0 g
- wiringMethod
- 引线/端子/插片
- safetyCertification
- 3C/CE/ROHS
