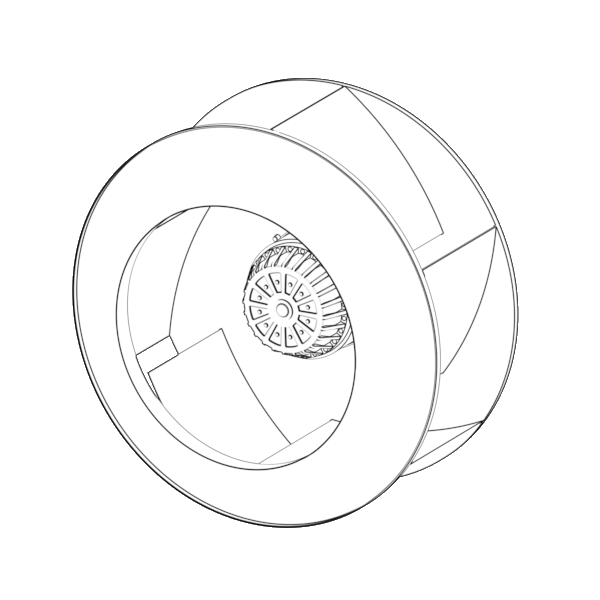

YWFH4E-450-218M-BA
YWFH4E-450-218M-BA from Jiefeng Electric. AC Centrifugal Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications.…
Product overview

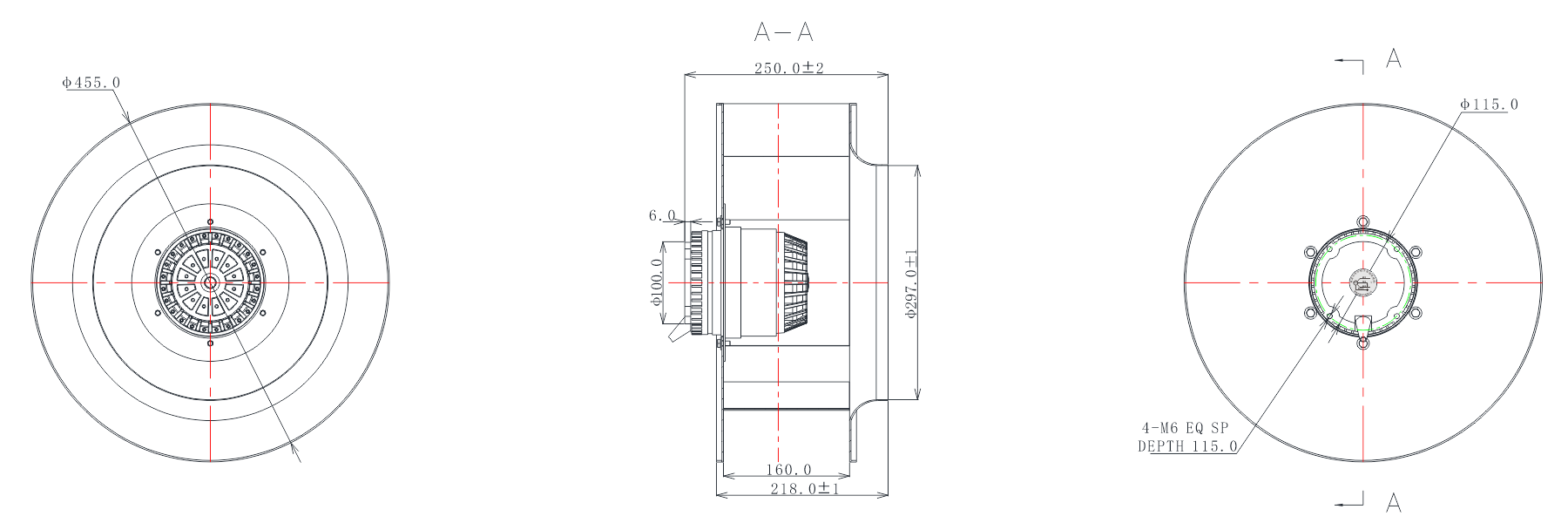

Product dimension drawing: Unit: mm Specification Table: Model Voltage Freq Current Power Speed Capacitor Airflow Temperature Noise PART NO. V Hz A W RPM μF M³/min CFM Min/Max ℃ dB(A) YWFH6E-450-218M-BA 220 50 1.3 260 930 10 64.96 2294 -30/+60 60 220 60 1.6 350 1050 10 69.94 2470 -30/+60 61 YWFH6D-450-218M-BA 380 50 1.0 300 920 / 64.96 2294 -30/+60 60 380 60 1.2 360 1050 / 69.94 2470 -30/+60 61 YWFH4D-450-218M-BA 380 50 1.0 550 1350 / 96.28 3400 -30/+60 69 380 60 1.5 800 1450 / 108.31 3825 -30/+60 74
Product specifications
- productType
- 离心风机
- brand
- JIEFENGFAN
- bladeMaterial
- 钢板DC01/Q195
- bladeDiameter
- φ455.0 MM
- overallSize
- φ455.0*250.0 MM
- mountingSize
- φ115.0 MM
- mountingHoleDiameter
- M6.0|深度14.0
- Ventilation Opening Size
- φ297.0 MM
- motorType
- 感应异步外转子电机
- insulationClass
- F级
- driveType
- 滚珠
- powerType
- 交流
- ratedVoltage
- 110V/220V/380V
- capacitorModel
- 10 µF
- ratedPower
- 260/800 W
- workingTemperature
- -30℃~+60℃
- workingHumidity
- 30%~70%RH
- speed
- 930/1450 RPM
- airFlow
- 2294/3825 CFM
- airPressure
- 1.25/2.58 inch-H₂O
- noiseLevel
- 74 dBA
- protectionGrade
- IP44
- lifeSpan
- 40000 h
- weight
- 13.0 kg
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- 双电压 速度可调
