YWFH4E-400-188M-BA
YWFH4E-400-188M-BA from Jiefeng Electric. AC Centrifugal Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications.…
Product overview

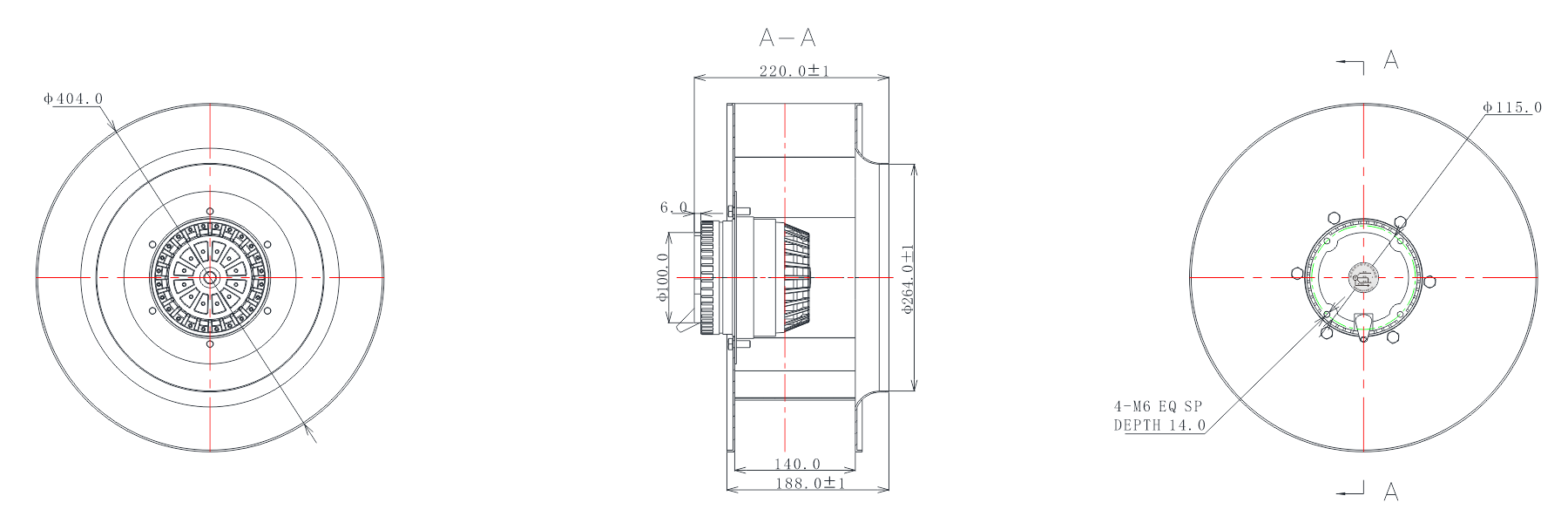

Product dimension drawing: Unit: mm Specification Table: Model Voltage Freq Current Power Speed Capacitor Airflow Temperature Noise PART NO. V Hz A W RPM μF M³/min CFM Min/Max ℃ dB(A) YWFH4E-400-188M-BA 220 50 1.50 430 1380 10 66.63 2353 -30/+60 66 YWFH4D-400-188M-BA 380 50 0.80 440 1380 / 66.63 2353 -30/+60 66
Product specifications
- productType
- 离心风机
- brand
- JIEFENGFAN
- bladeMaterial
- 钢板DC01/Q195
- bladeDiameter
- φ404.0 MM
- overallSize
- φ404.0*220.0 MM
- mountingSize
- φ115.0 MM
- mountingHoleDiameter
- M6.0|深度14.0
- Ventilation Opening Size
- φ264.0 MM
- motorType
- 感应异步外转子电机
- insulationClass
- F级
- driveType
- 滚珠
- powerType
- 交流
- ratedVoltage
- 110V/220V/380V
- capacitorModel
- 10 µF
- ratedPower
- 430/440 W
- workingTemperature
- -30℃~+60℃
- workingHumidity
- 30%~70%RH
- speed
- 1380 RPM
- airFlow
- 2353 CFM
- airPressure
- 1.92 inch-H₂O
- noiseLevel
- 66 dBA
- protectionGrade
- IP44
- lifeSpan
- 40000 h
- weight
- 10.0 kg
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- 双电压 速度可调
