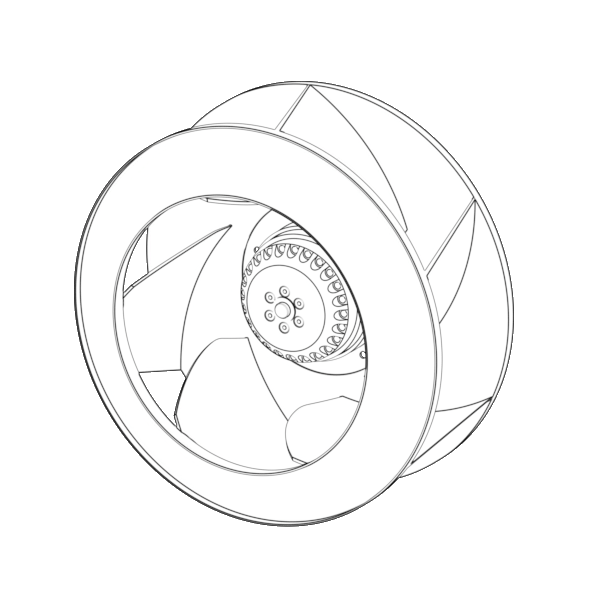

YWFH4E-315-135M-BA
YWFH4E-315-135M-BA from Jiefeng Electric. AC Centrifugal Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications.…
Product overview

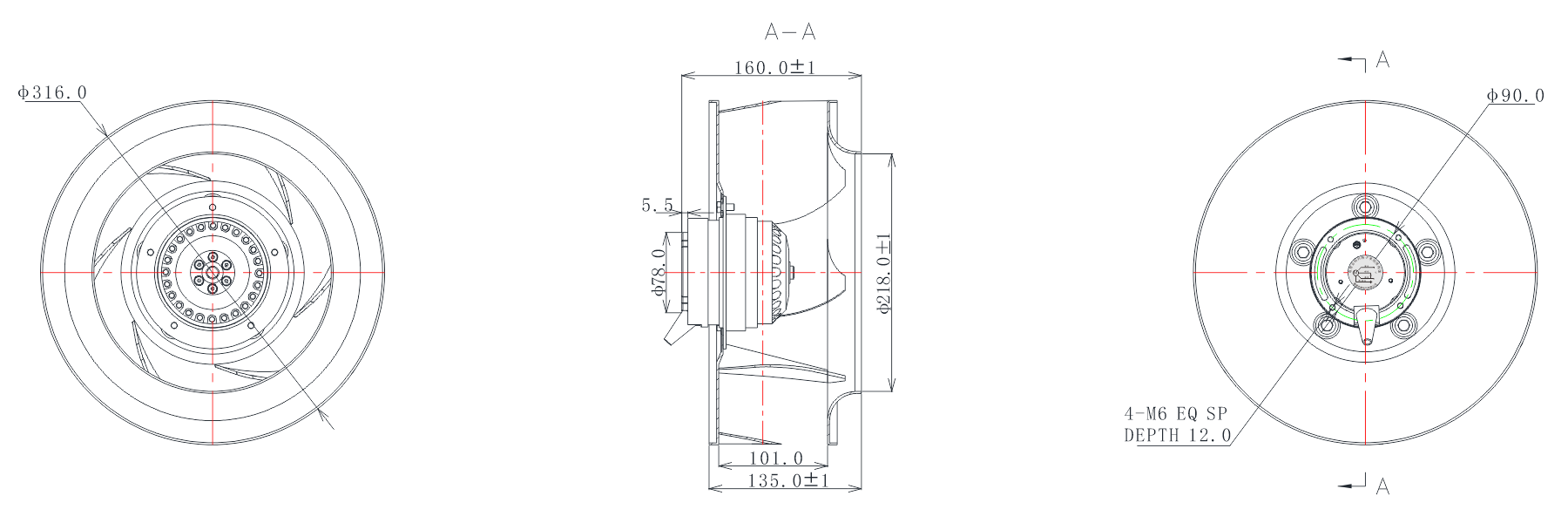

Product dimension drawing: Unit: mm Specification Table: Model Voltage Freq Current Power Speed Capacitor Airflow Temperature Noise PART NO. V Hz A W RPM μF M³/min CFM Min/Max ℃ dB(A) YWFH4E-315-135M-BA 220 50 0.60 135 1350 4 31.63 1117 -30/+60 63 0.40 85 1100 25.82 912 -30/+60 57 0.3 65 850 20.81 735 -30/+60 51
Product specifications
- productType
- 离心风机
- brand
- JIEFENGFAN
- bladeMaterial
- 钢板DC01/Q195
- bladeDiameter
- φ316.0 MM
- overallSize
- φ316.0*160.0 MM
- mountingSize
- φ90.0 MM
- mountingHoleDiameter
- M6.0|深度12.0
- Ventilation Opening Size
- φ218.0 MM
- motorType
- 感应异步外转子电机
- insulationClass
- F级
- driveType
- 滚珠
- powerType
- 交流
- ratedVoltage
- 110V/220V/380V
- capacitorModel
- 4 µF
- ratedPower
- 65/135 W
- workingTemperature
- -30℃~+60℃
- workingHumidity
- 30%~70%RH
- speed
- 850/1350 RPM
- airFlow
- 735/1117 CFM
- airPressure
- 0.88/1.23 inch-H₂O
- noiseLevel
- 63 dBA
- protectionGrade
- IP44
- lifeSpan
- 40000 h
- weight
- 4.0 kg
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- 双电压 速度可调
