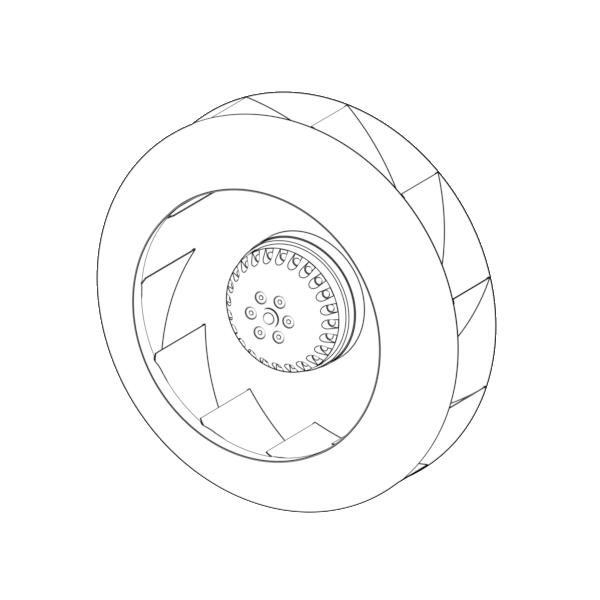

YWFH2E-280-080M-BA
YWFH2E-280-080M-BA from Jiefeng Electric. AC Centrifugal Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications.…
Product overview

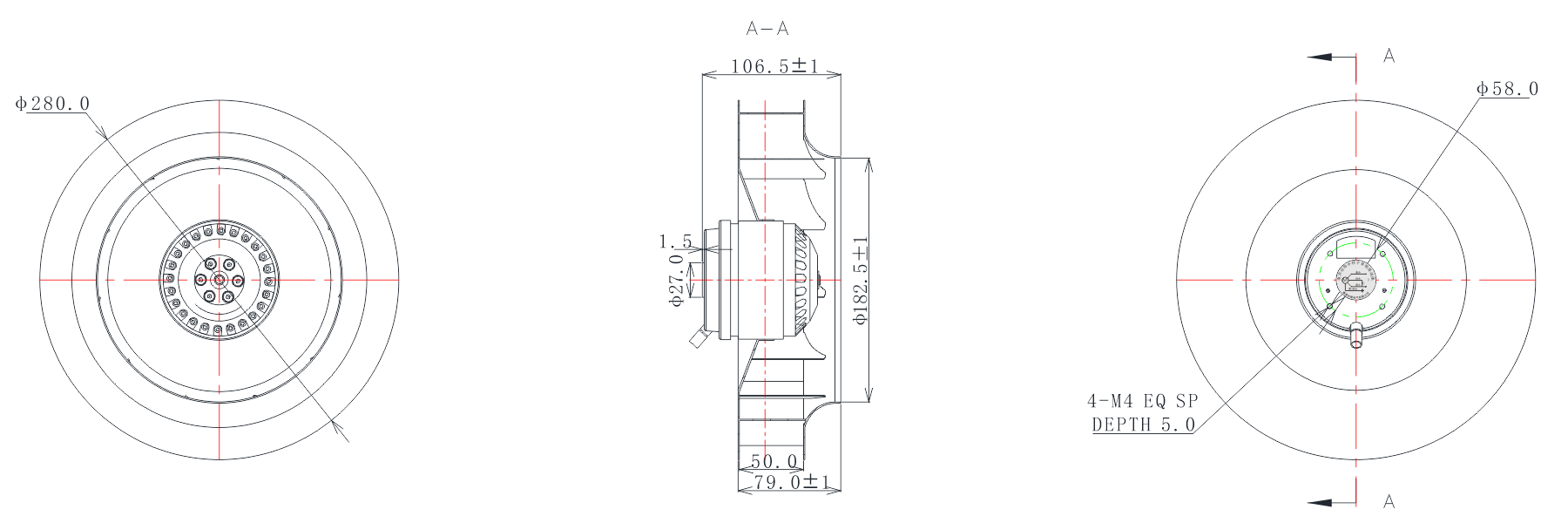

Product dimension drawing: Unit: mm Specification Table: Model Voltage Freq Current Power Speed Capacitor Airflow Temperature Noise PART NO. V Hz A W RPM μF M³/min CFM Min/Max ℃ dB(A) YWFH2E-280-080M-BA 220 50 1.1 220 2350 7 27.47 970 -30/+60 79 YWFH2D-280-080M-BA 380 50 0.6 200 2400 / 27.47 970 -30/+60 79
Product specifications
- productType
- 离心风机
- brand
- JIEFENGFAN
- bladeMaterial
- 钢板DC01/Q195
- bladeDiameter
- φ281.0 MM
- overallSize
- φ281.1*106.5 MM
- mountingSize
- φ58.0 MM
- mountingHoleDiameter
- M4.0|深度5.0
- Ventilation Opening Size
- φ191.0 MM
- motorType
- 感应异步外转子电机
- insulationClass
- F级
- driveType
- 滚珠
- powerType
- 交流
- ratedVoltage
- 110V/220V/380V
- capacitorModel
- 7 µF
- ratedPower
- 200/220 W
- workingTemperature
- -30℃~+60℃
- workingHumidity
- 30%~70%RH
- speed
- 2350/2400 RPM
- airFlow
- 970 CFM
- airPressure
- 2.91 inch-H₂O
- noiseLevel
- 79 dBA
- protectionGrade
- IP44
- lifeSpan
- 40000 h
- weight
- 4.0 kg
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- 双电压 速度可调
