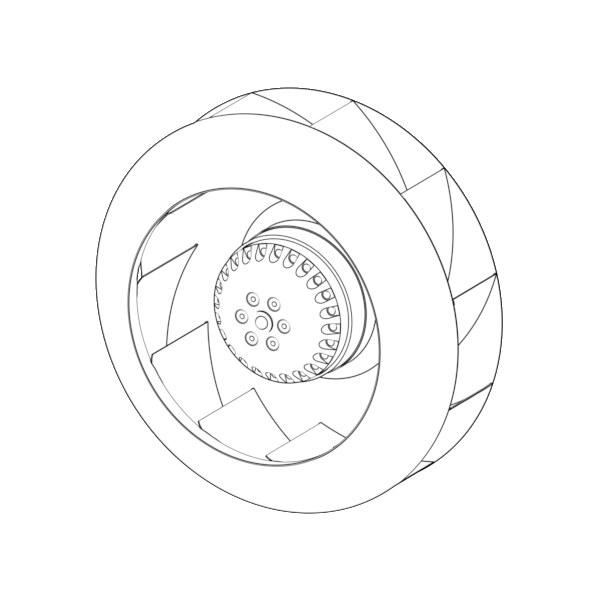

YWFH2E-250-080M-BA
YWFH2E-250-080M-BA from Jiefeng Electric. AC Centrifugal Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications.…
Product overview

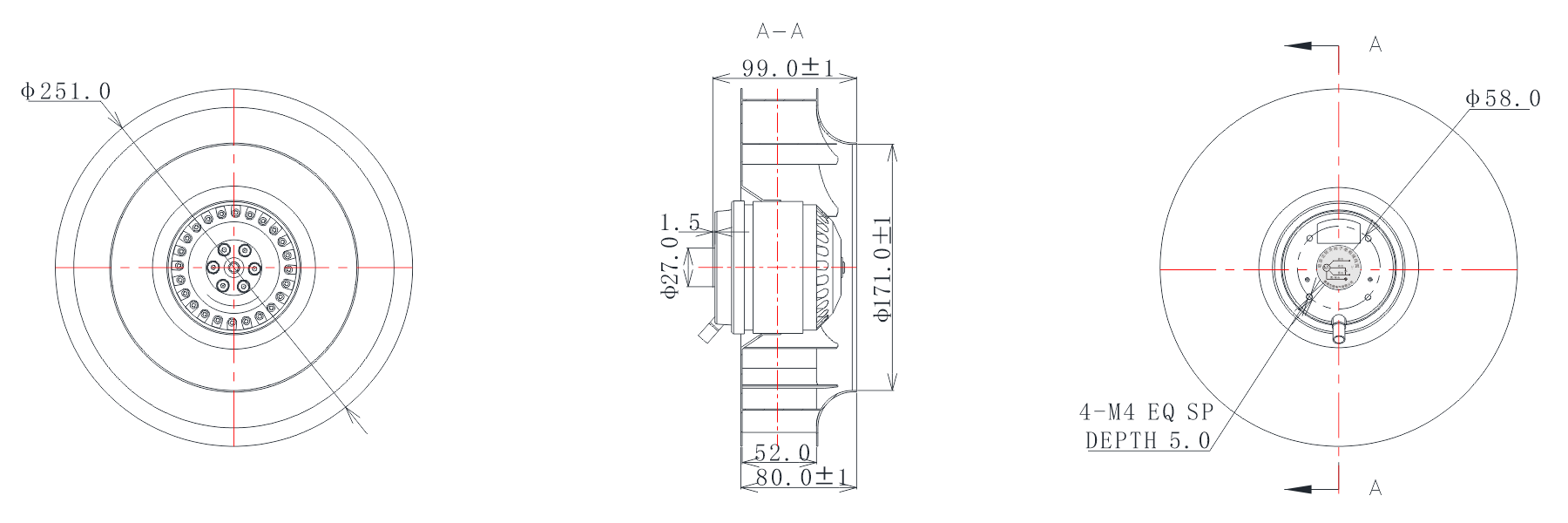

Product dimension drawing: Unit: mm Specification Table: Model Voltage Freq Current Power Speed Capacitor Airflow Temperature Noise PART NO. V Hz A W RPM μF M³/min CFM Min/Max ℃ dB(A) YWFH2E-250-080M-BA 220 50 0.24 50 1400 2 13.82 488 -30/+60 68 60 0.27 60 1600 2 15.80 558 -30/+60 70 YWFH2D-250-080M-BA 380 50 0.15 50 1450 / 13.82 488 -30/+60 68 60 0.15 60 1600 / 15.80 558 -30/+60 70
Product specifications
- productType
- 离心风机
- brand
- JIEFENGFAN
- bladeMaterial
- 钢板DC01/Q195
- bladeDiameter
- φ251.0 MM
- overallSize
- φ251.0*99.0 MM
- mountingSize
- φ58.0 MM
- mountingHoleDiameter
- M4.0|深度5.0
- Ventilation Opening Size
- φ171.0 MM
- motorType
- 感应异步外转子电机
- insulationClass
- F级
- driveType
- 滚珠
- powerType
- 交流
- ratedVoltage
- 110V/220V/380V
- capacitorModel
- 4 µF
- ratedPower
- 50/60 W
- workingTemperature
- -30℃~+60℃
- workingHumidity
- 30%~70%RH
- speed
- 1400/1600 RPM
- airFlow
- 488/558 CFM
- airPressure
- 0.66/0.86 inch-H₂O
- noiseLevel
- 70 dBA
- protectionGrade
- IP44
- lifeSpan
- 40000 h
- weight
- 3.4 kg
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- 双电压 速度可调
