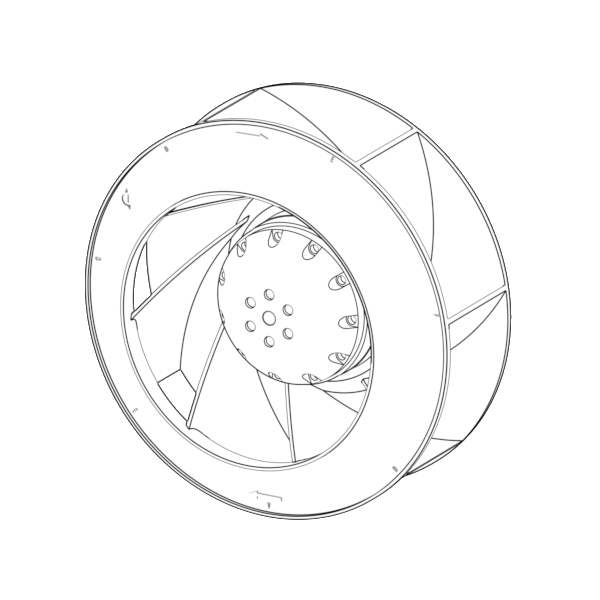

YWFH2E-225-089P-BA
YWFH2E-225-089P-BA from Jiefeng Electric. AC Centrifugal Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications.…
Product overview

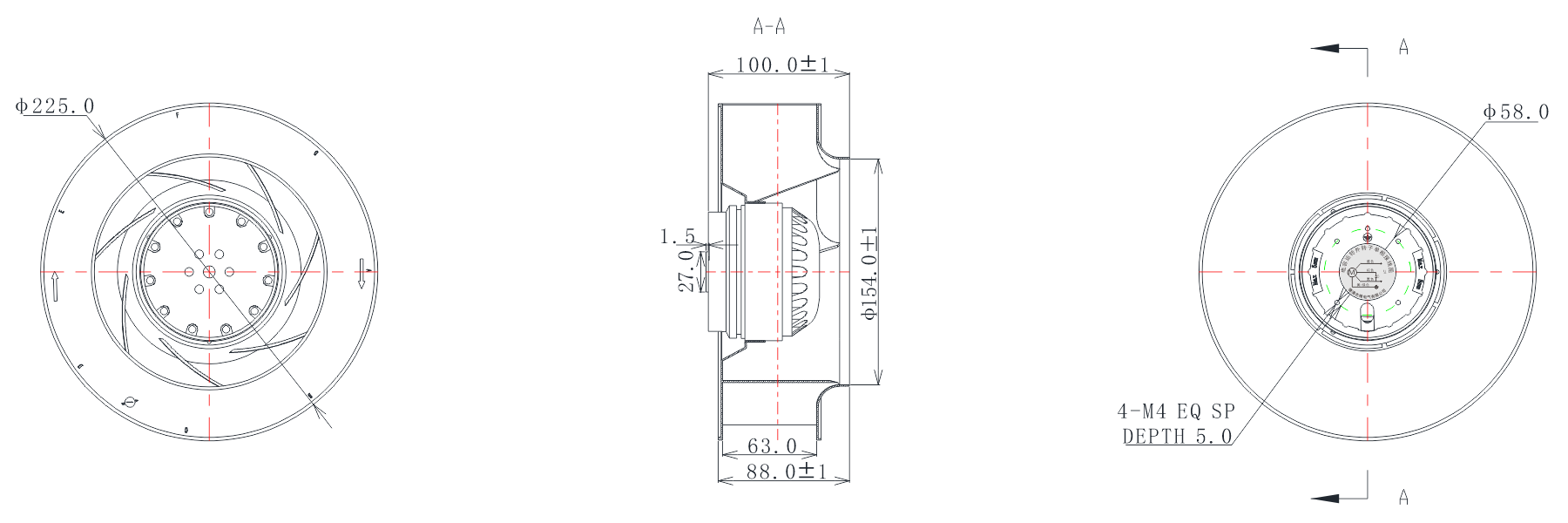

Product dimension drawing: Unit: mm Specification Table: Model Voltage Freq Current Power Speed Capacitor Airflow Temperature Noise PART NO. V Hz A W RPM μF M³/min CFM Min/Max ℃ dB(A) YWFH2E-225-089P-BA 220 50 0.60 125 2630 4 18.32 647 -30/+60 70 0.54 120 2500 4 17.41 615 -30/+60 68.5 0.52 115 2290 4 15.94 563 -30/+60 66
Product specifications
- productType
- 离心风机
- brand
- JIEFENGFAN
- bladeMaterial
- 塑料 PBT+28%GF
- bladeDiameter
- φ225.0 MM
- overallSize
- φ225.0*100.0 MM
- mountingSize
- φ58.0 MM
- mountingHoleDiameter
- M4.0|深度5.0
- Ventilation Opening Size
- φ154.0 MM
- motorType
- 感应异步外转子电机
- insulationClass
- F级
- driveType
- 滚珠
- powerType
- 交流
- ratedVoltage
- 110V/220V/380V
- capacitorModel
- 4 µF
- ratedPower
- 115/125 W
- workingTemperature
- -30℃~+60℃
- workingHumidity
- 30%~70%RH
- speed
- 2290/2630 RPM
- airFlow
- 563/647 CFM
- airPressure
- 1.50/2.15 inch-H₂O
- noiseLevel
- 70 dBA
- protectionGrade
- IP44
- lifeSpan
- 40000 h
- weight
- 2.6 kg
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- 双电压 速度可调
