JF30290D24HBL-L/R
Product Parameters:
- Brand：
- JIEFENGFAN
- Frame Type：
- Metal框
- Housing Material：
- 钢板DC01/Q195
- Surface Treatment：
- Electrophoresis
- Impeller Material：
- Aluminum板1060
- Impeller Diameter：
- φ30 MM
- Impeller Length：
- 90MM, 150MM, 190MM, 290MM, 350MM
- Overall Size：
- 51.8*48.5 MM
- Mounting Size：
- 108MM、168MM、208MM、308MM、368MM
- Mounting Hole Diameter：
- Φ2.5
- Motor Type：
- 无刷Motor
- Insulation Class：
- Class B
- Drive Type：
- Sleeve/Ball
- Power Type：
- DC
- Rated Voltage：
- 12V/24V
- Rated Power：
- 1.68/3.6 W
- Working Temperature：
- -30℃~+70℃
- Working Humidity：
- 30%~70%RH
- Speed：
- 2500/3500 RPM
- Air Flow：
- 17.66/63.57 CFM
- Air Pressure：
- 1.4/1.7 inch-H₂O
- Noise Level：
- 35/38 dBA
- Protection Grade：
- IP43
- Life Span：
- 30000/50000 h
- Weight：
- 310 g
- Connection Method：
- Lead Wire/Terminal
- Safety Certification：
- CE/ROHS
- Custom Function：
- Soft Start/Locked Rotor/RD/FG/PWM

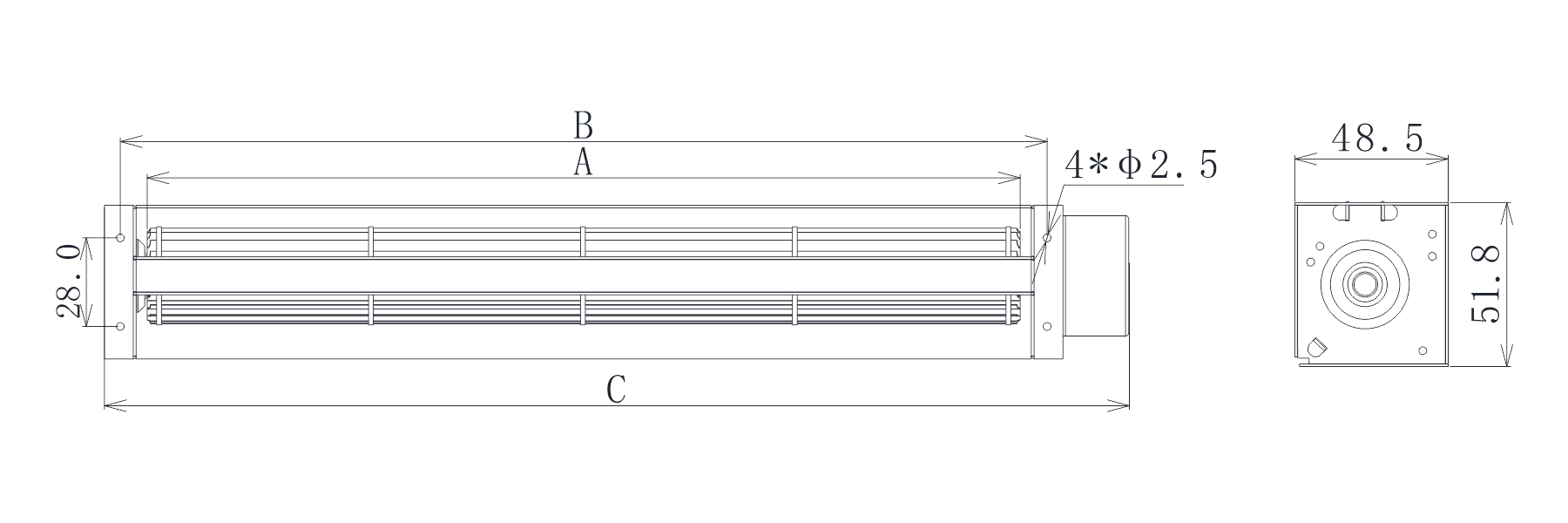

Product dimension drawing:
Unit: mm
详细参数：
Technical Specifications:
| PART.NO. | Size | Voltage | Current | Power | Speed | Airflow | Pressure | Noise | Weight | ||
| A | B | C | |||||||||
| MM | MM | MM | VDC | AMP | Watt | RPM | CFM | mm H²O | dBA | g | |
| JF3090D12 | 90 | 108 | 166 | 12 | 0.17 | 2.04 | 3500 | 17.66 | 1.7 | 38 | 180 |
| JF3090D24 | 24 | 0.07 | 1.68 | ||||||||
| JF30150D12 | 150 | 168 | 226 | 12 | 0.22 | 2.64 | 3100 | 28.25 | 1.7 | 37 | 210 |
| JF30150D24 | 24 | 0.08 | 1.92 | ||||||||
| JF30190D12 | 190 | 208 | 266 | 12 | 0.25 | 3.00 | 2900 | 31.78 | 1.6 | 36 | 230 |
| JF30190D24 | 24 | 0.09 | 2.16 | ||||||||
| JF30290D12 | 290 | 308 | 366 | 12 | 0.29 | 3.48 | 2600 | 45.91 | 1.4 | 35 | 290 |
| JF30290D24 | 24 | 0.11 | 2.64 | ||||||||
| JF30350D12 | 350 | 368 | 420 | 12 | 0.27 | 3.24 | 2500 | 63.57 | 1.4 | 36 | 310 |
| JF30350D24 | 24 | 0.15 | 3.60 | ||||||||
