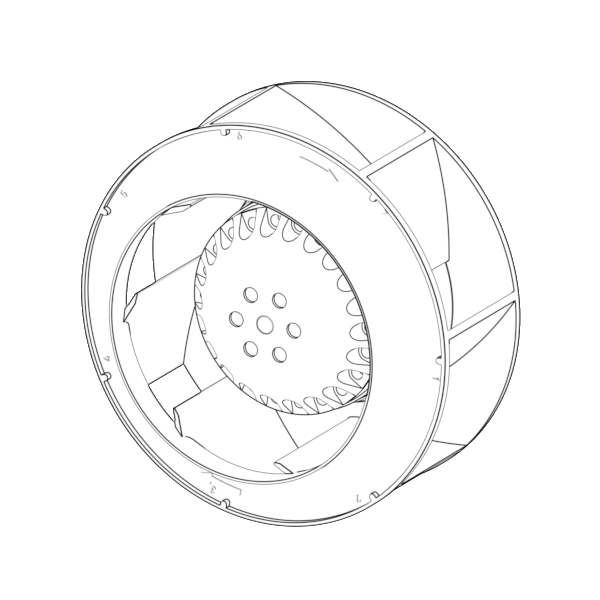

YWFH2E-133-062P-BA
YWFH2E-133-062P-BA from Jiefeng Electric. AC Centrifugal Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications.…
Product overview
Product dimension drawing: Unit: mm Specification Table: Model Voltage Freq Current Power Speed Capacitor Airflow Temperature Noise PART NO. V Hz A W RPM μF M³/min CFM Min/Max ℃ dB(A) YWFH2E-133-062P-BA 220 50 0.24 43 2650 1 3.34 118 -30/+60 52 220 60 0.35 60 3000 0 4.19 148 -30/+60 56
Product specifications
- productType
- 离心风机
- brand
- JIEFENGFAN
- bladeMaterial
- 塑料 PBT+28%GF
- bladeDiameter
- φ133.0 MM
- overallSize
- φ133.0*76.0 MM
- mountingSize
- φ58.0 MM
- mountingHoleDiameter
- M4.0|深度5.0
- Ventilation Opening Size
- φ94.0 MM
- motorType
- 感应异步外转子电机
- insulationClass
- F级
- driveType
- 滚珠
- powerType
- 交流
- ratedVoltage
- 110V/220V/380V
- capacitorModel
- 1 µF
- ratedPower
- 43/60 W
- workingTemperature
- -30℃~+60℃
- workingHumidity
- 30%~70%RH
- speed
- 2650/3000 RPM
- airFlow
- 118/148 CFM
- airPressure
- 0.94/1.09 inch-H₂O
- noiseLevel
- 56 dBA
- protectionGrade
- IP44
- lifeSpan
- 40000 h
- weight
- 0.9 kg
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- 双电压 速度可调
