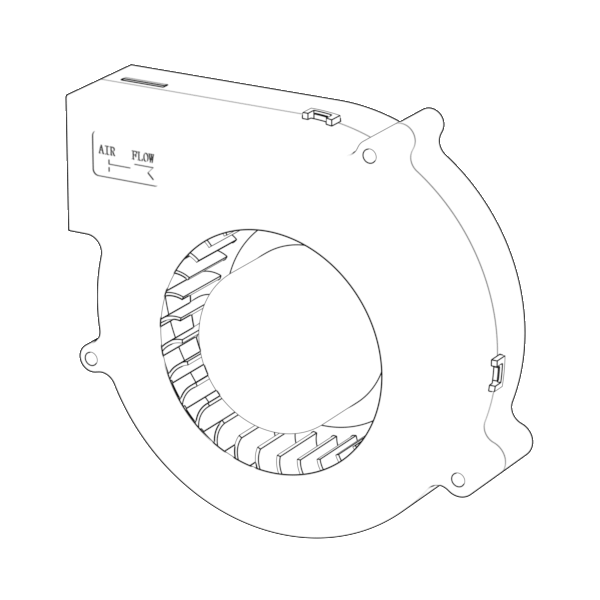

JF14040D12HL
JF14040D12HL from Jiefeng Electric. DC Blower Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM and OD…
Product overview

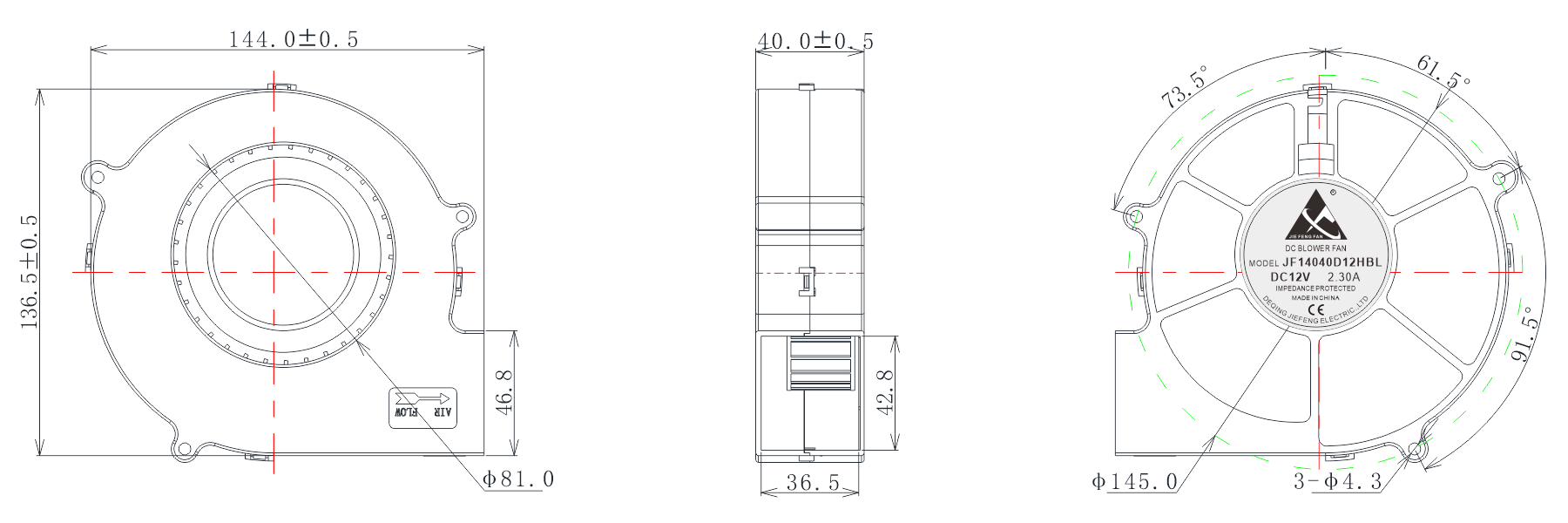

Product dimension drawing: Unit: mm Specification Table: Model Rated Voltage Operating Voltage Range Rated Current Rated Input Power Speed Maximum Airflow Maximum Air Pressure Noise PART.NO. VDC VDC Amp Watt R.P.M M³/min CFM mmH2O InH2O dB-A JF14040D12LBL 12 7.5~13.5 0.500 6.00 2000 1.06 37.30 8.20 0.32 56.0 JF14040D12MBL 12 7.5~13.5 1.400 16.80 2500 1.25 45.70 12.19 0.48 64.2 JF14040D12HBL 12 7.5~13.5 2.300 27.60 3000 1.55 54.70 17.74 0.70 65.7 JF14040D12HHBL 12 7.5~13.5 3.200 38.40 3500 1.93 68.00 33.75 1.33 68.9 JF14040D12VHBL 12 7.5~13.5 4.200 50.40 4000 2.16 76.40 45.48 1.79 70.0 JF14040D12HVBL 12 7.5~13.5 5.100 61.20 4500 2.49 87.90 59.15 2.33 71.9 JF14040D24LBL 24 18~26.5 0.250 6.00 2000 1.06 37.30 8.20 0.32 56.0 JF14040D24MBL 24 18~26.5 0.700 16.80 2500 1.25 45.70 12.19 0.48 64.2 JF14040D24HBL 24 18~26.5 1.150 27.60 3000 1.55 54.70 17.74 0.70 65.7 JF14040D24HHBL 24 18~26.5 1.600 38.40 3500 1.93 68.00 33.75 1.33 68.9 JF14040D24VHBL 24 18~26.5 2.100 50.40 4000 2.16 76.40 45.48 1.79 70.0 JF14040D24HVBL 24 18~26.5 2.550 61.20 4500 2.49 87.90 59.15 2.33 71.9 JF14040D48LBL 48 36~54 0.125 6.00 2000 1.06 37.30 8.20 0.32 56.0 JF14040D48MBL 48 36~54 0.350 16.80 2500 1.25 45.70 12.19 0.48 64.2 JF14040D48HBL 48 36~54 0.575 27.60 3000 1.55 54.70 17.74 0.70 65.7 JF14040D48HHBL 48 36~54 0.800 38.40 3500 1.93 68.00 33.75 1.33 68.9 JF14040D48VHBL 48 36~54 1.050 50.40 4000 2.16 76.40 45.48 1.79 70.0 JF14040D48HVBL 48 36~54 1.275 61.20 4500 2.49 87.90 59.15 2.33 71.9
Product specifications
- productType
- 鼓风机
- brand
- JIEFENGFAN
- housingMaterial
- 塑料PBT+28%GF
- bladeMaterial
- 塑料 PBT+28%GF
- overallSize
- 144.0*136.5*39.9 MM
- mountingSize
- φ140.0 MM
- mountingHoleDiameter
- Φ4.3
- Ventilation Opening Size
- φ81.0 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 滚珠
- powerType
- 直流
- ratedVoltage
- 12V/24V/48V
- ratedPower
- 6.0/61.2 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 2000/4500 RPM
- airFlow
- 37.3/87.9 CFM
- airPressure
- 0.323/71.9 inch-H₂O
- noiseLevel
- 71.9 dBA
- protectionGrade
- IP43
- lifeSpan
- 30000 h
- weight
- 353.0 g
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
