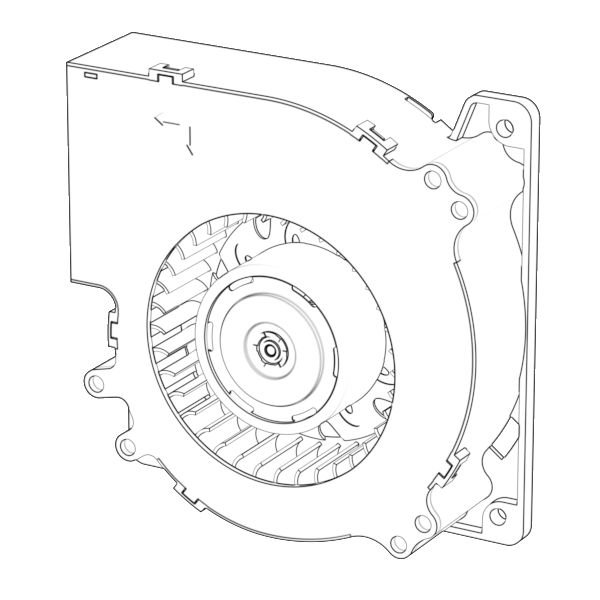

JF12032D12HL
JF12032D12HL from Jiefeng Electric. DC Blower Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM and OD…
Product overview
Product dimension drawing: Unit: mm Specification Table: Model Rated Voltage Operating Voltage Range Rated Current Rated Input Power Speed Maximum Airflow Maximum Air Pressure Noise PART.NO. VDC VDC Amp Watt R.P.M M³/min CFM mmH2O InH2O dB-A JF12032D12LBL 12 7.5~13.5 0.800 9.60 2500 1.14 32.35 18.98 0.75 50.4 JF12032D12MBL 12 7.5~13.5 1.400 16.80 3000 1.43 40.35 25.28 1.15 52.3 JF12032D12HBL 12 7.5~13.5 1.800 21.60 3500 1.64 46.38 40.17 1.58 58.3 JF12032D12HHBL 12 7.5~13.5 2.400 28.80 4000 1.85 52.44 54.63 2.15 59.0 JF12032D12VHBL 12 7.5~13.5 3.000 36.00 4500 2.10 59.32 73.11 2.88 62.2 JF12032D12HVBL 12 7.5~13.5 3.600 43.20 5000 2.33 65.96 83.60 3.25 64.7 JF12032D24LBL 24 18~26.5 0.400 9.60 2500 1.14 32.35 18.98 0.75 50.4 JF12032D24MBL 24 18~26.5 0.700 16.80 3000 1.43 40.35 25.28 1.15 52.3 JF12032D24HBL 24 18~26.5 0.900 21.60 3500 1.64 46.38 40.17 1.58 58.3 JF12032D24HHBL 24 18~26.5 1.200 28.80 4000 1.85 52.44 54.63 2.15 59.0 JF12032D24VHBL 24 18~26.5 1.500 36.00 4500 2.10 59.32 73.11 2.88 62.2 JF12032D24HVBL 24 18~26.5 1.800 43.20 5000 2.33 65.96 83.60 3.25 64.7 JF12032D48LBL 48 36~54 0.200 9.60 2500 1.14 32.35 18.98 0.75 50.4
Product specifications
- productType
- 鼓风机
- brand
- JIEFENGFAN
- housingMaterial
- 塑料PBT+28%GF
- bladeMaterial
- 塑料 PBT+28%GF
- overallSize
- 120.0*120.0*31.8 MM
- mountingSize
- 104.5 MM
- mountingHoleDiameter
- Φ4.3
- Ventilation Opening Size
- φ72.5 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 滚珠
- powerType
- 直流
- ratedVoltage
- 12V/24V/48V
- ratedPower
- 9.6/43.2 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 2500/5000 RPM
- airFlow
- 32.35/65.96 CFM
- airPressure
- 0.747/3.251 inch-H₂O
- noiseLevel
- 64.7 dBA
- protectionGrade
- IP43
- lifeSpan
- 30000 h
- weight
- 284.0 g
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
