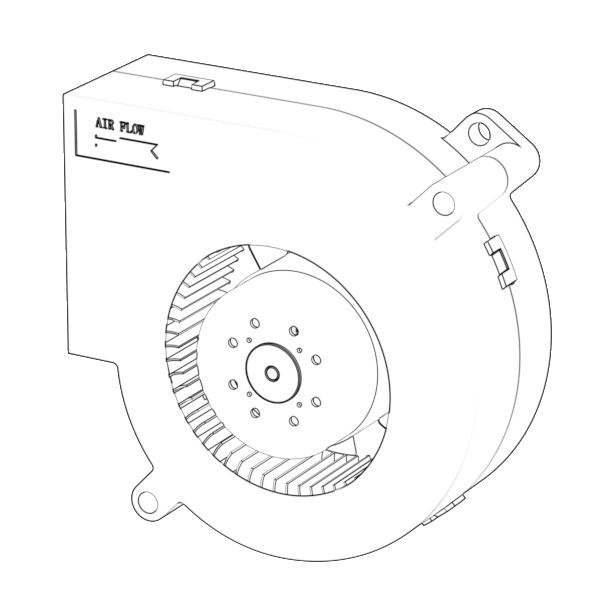

JF9733D12HL-B
Product Parameters:
- Brand：
- JIEFENGFAN
- Housing Material：
- Plastic PBT+28%GF
- Impeller Material：
- Plastic PBT+28%GF
- Overall Size：
- 98.3*95.2*33.8 MM
- Mounting Size：
- 100.5/101.3 MM
- Mounting Hole Diameter：
- Φ4.5
- Ventilation Opening Size：
- φ55.3 MM
- Motor Type：
- 无刷Motor
- Insulation Class：
- Class B
- Drive Type：
- Ball
- Power Type：
- DC
- Rated Voltage：
- 12V/24V
- Rated Power：
- 10.8/38.88 W
- Working Temperature：
- -30℃~+70℃
- Working Humidity：
- 30%~70%RH
- Speed：
- 4500/6850 RPM
- Air Flow：
- 36.7/56.8 CFM
- Air Pressure：
- 1.647/5.14 inch-H₂O
- Noise Level：
- 66 dBA
- Protection Grade：
- IP43
- Life Span：
- 30000/50000 h
- Weight：
- 200.0 g
- Connection Method：
- Lead Wire/Terminal
- Safety Certification：
- CE/ROHS
- Custom Function：
- RD/FG/PWM/Locked Rotor/Soft Start

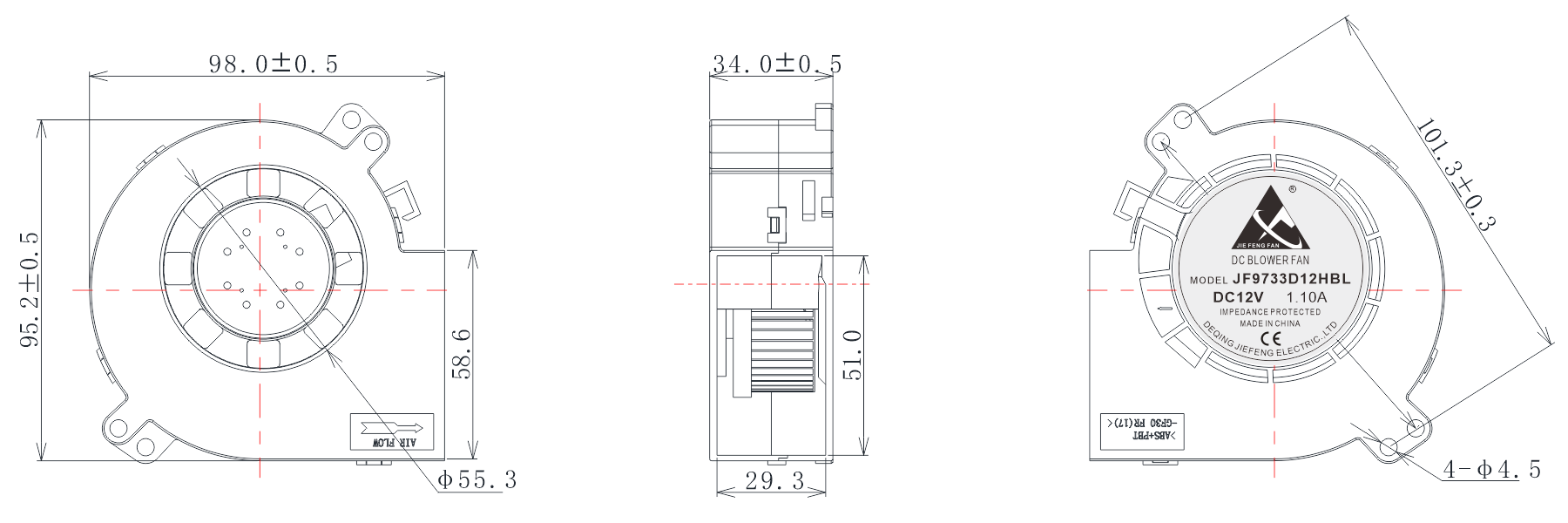

Product dimension drawing:
Unit: mm
Specification Table:
| Model | Rated Voltage | Operating Voltage Range |
Rated Current | Rated Input Power | Speed | Maximum Airflow | Maximum Air Pressure | Noise | ||
| PART.NO. | VDC | VDC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A |
| JF9733D12MHBL | 12 | 7.5~13.5 | 0.900 | 10.80 | 4500 | 1.04 | 36.70 | 41.79 | 1.65 | 56.0 |
| JF9733D12HBL | 12 | 7.5~13.5 | 1.100 | 13.20 | 4850 | 1.11 | 39.20 | 49.95 | 1.97 | 57.0 |
| JF9733D12HHBL | 12 | 7.5~13.5 | 1.400 | 16.80 | 5250 | 1.22 | 43.10 | 62.18 | 2.45 | 59.0 |
| JF9733D12VHBL | 12 | 7.5~13.5 | 1.800 | 21.60 | 5750 | 1.34 | 47.30 | 77.47 | 3.05 | 61.0 |
| JF9733D12HVBL | 12 | 7.5~13.5 | 3.400 | 40.80 | 6850 | 1.61 | 56.80 | 130.49 | 5.14 | 66.0 |
| JF9733D24MHBL | 24 | 18~26.5 | 0.450 | 10.80 | 4500 | 1.04 | 36.70 | 41.79 | 1.65 | 56.0 |
| JF9733D24HBL | 24 | 18~26.5 | 0.550 | 13.20 | 4850 | 1.11 | 39.20 | 49.95 | 1.97 | 57.0 |
| JF9733D24HHBL | 24 | 18~26.5 | 0.700 | 16.80 | 5250 | 1.22 | 43.10 | 62.18 | 2.45 | 59.0 |
| JF9733D24VHBL | 24 | 18~26.5 | 0.830 | 19.90 | 5750 | 1.34 | 47.30 | 77.47 | 3.05 | 61.0 |
| JF9733D24HVBL | 24 | 18~26.5 | 1.620 | 38.88 | 6850 | 1.61 | 56.80 | 130.49 | 5.14 | 66.0 |
