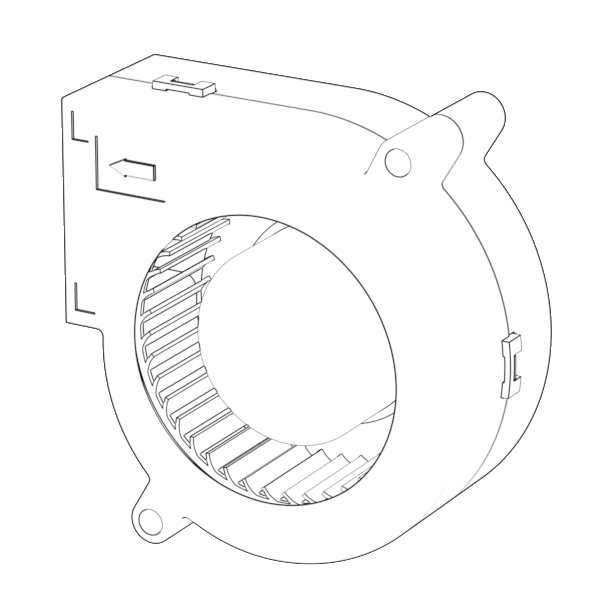

JF7530D12HL
JF7530D12HL from Jiefeng Electric. DC Blower Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM and ODM…
Product overview

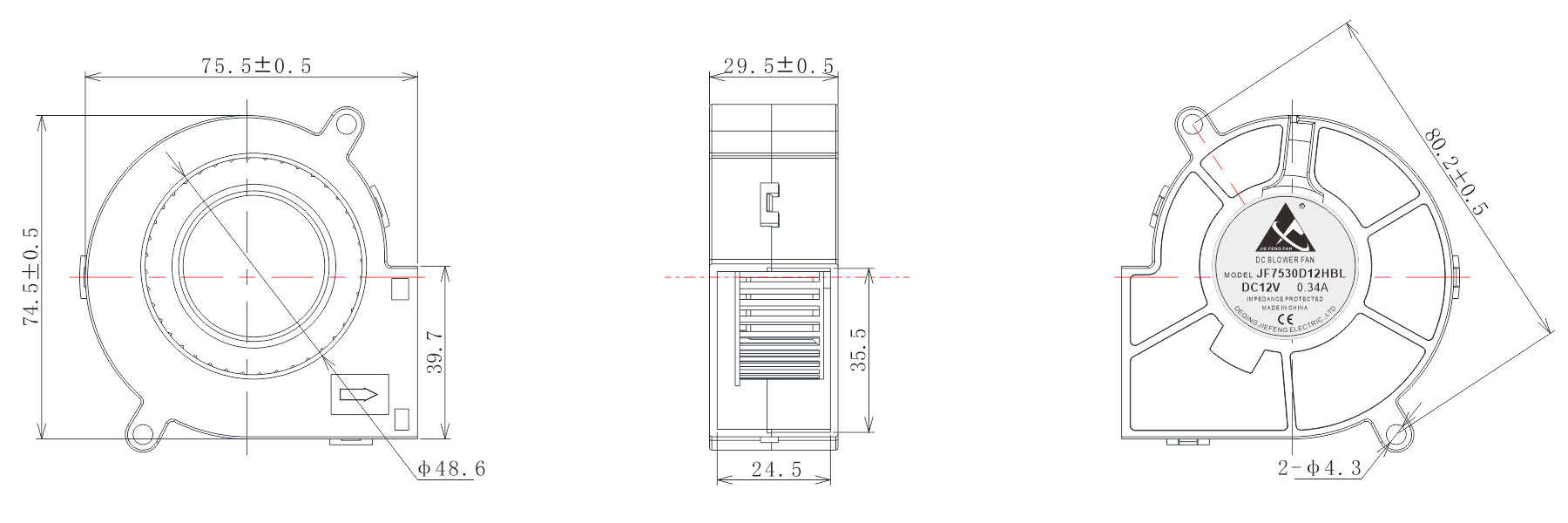

Product dimension drawing: Unit: mm Specification Table: Model Rated Voltage Operating Voltage Range Rated Current Rated Input Power Speed Maximum Airflow Maximum Air Pressure Noise PART.NO. VDC VDC Amp Watt R.P.M M³/min CFM mmH2O InH2O dB-A JF7530D12LBL 12 7.5~13.5 0.160 1.92 2000 0.18 6.37 2.65 0.10 33.2 JF7530D12MBL 12 7.5~13.5 0.260 3.12 2500 0.25 8.87 5.53 0.22 37.5 JF7530D12HBL 12 7.5~13.5 0.340 4.08 3000 0.26 9.25 7.26 0.29 42.7 JF7530D12HHBL 12 7.5~13.5 0.460 5.52 3500 0.31 10.80 11.25 0.44 45.6 JF7530D12VHBL 12 7.5~13.5 0.600 7.20 4000 0.37 12.90 14.37 0.57 46.8 JF7530D24LBL 24 18~26.5 0.080 1.92 2000 0.18 6.37 2.65 0.10 33.2 JF7530D24MBL 24 18~26.5 0.130 3.12 2500 0.25 8.87 5.53 0.22 37.5 JF7530D24HBL 24 18~26.5 0.170 4.08 3000 0.26 9.25 7.26 0.29 42.7 JF7530D24HHBL 24 18~26.5 0.230 5.52 3500 0.31 10.80 11.25 0.44 45.6 JF7530D24VHBL 24 18~26.5 0.300 7.20 4000 0.37 12.90 14.37 0.57 46.8 JF7530D48LBL 48 36~54 0.040 1.92 2000 0.18 6.37 2.65 0.10 33.2 JF7530D48MBL 48 36~54 0.065 3.12 2500 0.25 8.87 5.53 0.22 37.5 JF7530D48HBL 48 36~54 0.085 4.08 3000 0.26 9.25 7.26 0.29 42.7 JF7530D48HHBL 48 36~54 0.115 5.52 3500 0.31 10.80 11.25 0.44 45.6 JF7530D48VHBL 48 36~54 0.150 7.20 4000 0.37 12.90 14.37 0.57 46.8
Product specifications
- productType
- 鼓风机
- brand
- JIEFENGFAN
- housingMaterial
- 塑料PBT+28%GF
- bladeMaterial
- 塑料 PBT+28%GF
- overallSize
- 75.5*74.5*29.3 MM
- mountingSize
- 80.2 MM
- mountingHoleDiameter
- Φ4.3
- Ventilation Opening Size
- φ48.6 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 含油/滚珠
- powerType
- 直流
- ratedVoltage
- 12V/24V/48V
- ratedPower
- 1.92/7.20 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 2000/4000 RPM
- airFlow
- 6.37/12.90 CFM
- airPressure
- 0.104/0.57 inch-H₂O
- noiseLevel
- 46.8 dBA
- protectionGrade
- IP43
- lifeSpan
- 30000/50000 h
- weight
- 79.0 g
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
