JF7525D12HL
JF7525D12HL from Jiefeng Electric. DC Blower Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM and ODM…
Product overview

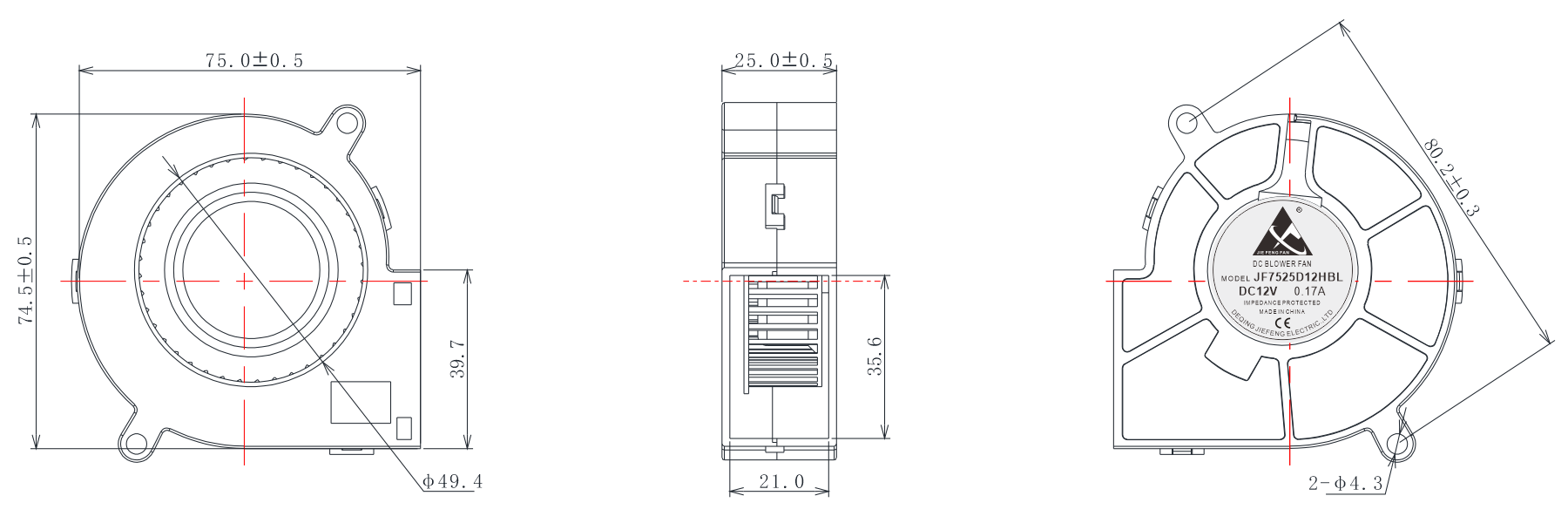

Product dimension drawing: Unit: mm Specification Table: Model Rated Voltage Operating Voltage Range Rated Current Rated Input Power Speed Maximum Airflow Maximum Air Pressure Noise PART.NO. VDC VDC Amp Watt R.P.M M³/min CFM mmH2O InH2O dB-A JF7525D12LBL 12 7.5~13.5 0.040 0.48 2000 0.16 5.77 3.65 0.14 31.7 JF7525D12MBL 12 7.5~13.5 0.100 1.20 2500 0.21 7.27 6.22 0.24 35.4 JF7525D12HBL 12 7.5~13.5 0.170 2.04 3000 0.26 9.11 10.75 0.42 40.5 JF7525D12HHBL 12 7.5~13.5 0.260 3.12 3500 0.30 10.60 15.75 0.62 44.3 JF7525D12VHBL 12 7.5~13.5 0.430 5.16 4000 0.35 12.20 22.71 0.89 47.7 JF7525D12HVBL 12 7.5~13.5 0.640 7.68 4500 0.39 13.90 30.97 1.22 51.7 JF7525D24LBL 24 18~26.5 0.020 0.48 2000 0.16 5.77 3.65 0.14 31.7 JF7525D24MBL 24 18~26.5 0.050 1.20 2500 0.21 7.27 6.22 0.24 35.4 JF7525D24HBL 24 18~26.5 0.090 2.16 3000 0.26 9.11 10.75 0.42 40.5 JF7525D24HHBL 24 18~26.5 0.130 3.12 3500 0.30 10.60 15.75 0.62 44.3 JF7525D24VHBL 24 18~26.5 0.220 5.28 4000 0.35 12.20 22.71 0.89 47.7 JF7525D24HVBL 24 18~26.5 0.320 7.68 4500 0.39 13.90 30.97 1.22 51.7
Product specifications
- productType
- 鼓风机
- brand
- JIEFENGFAN
- housingMaterial
- 塑料PBT+28%GF
- bladeMaterial
- 塑料 PBT+28%GF
- overallSize
- 75.3*74.5*25.0 MM
- mountingSize
- 80.2 MM
- mountingHoleDiameter
- Φ4.3
- Ventilation Opening Size
- φ49.4 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 含油/滚珠
- powerType
- 直流
- ratedVoltage
- 12V/24V
- ratedPower
- 0.48/7.68 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 2000/4500 RPM
- airFlow
- 5.77/13.9 CFM
- airPressure
- 0.143/1.219 inch-H₂O
- noiseLevel
- 51.7 dBA
- protectionGrade
- IP43
- lifeSpan
- 30000/50000 h
- weight
- 65.0 g
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
