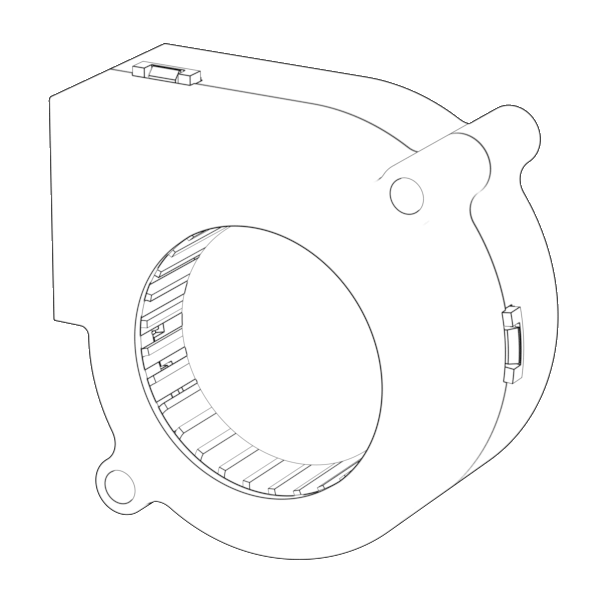

JF6028D12HL
JF6028D12HL from Jiefeng Electric. DC Blower Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM and ODM…
Product overview
Product dimension drawing: Unit: mm Specification Table: Model Rated Voltage Operating Voltage Range Rated Current Rated Input Power Speed Maximum Airflow Maximum Air Pressure Noise PART.NO. VDC VDC Amp Watt R.P.M M³/min CFM mmH2O InH2O dB-A JF6028D12LBL 12 7.5~13.5 0.100 1.20 2500 0.06 2.24 3.31 0.13 24.4 JF6028D12MBL 12 7.5~13.5 0.140 1.68 3000 0.08 2.78 5.12 0.20 25.5 JF6028D12HBL 12 7.5~13.5 0.220 2.64 3500 0.09 3.16 7.13 0.28 33.6 JF6028D12HHBL 12 7.5~13.5 0.300 3.60 4000 0.10 3.67 9.72 0.38 36.9 JF6028D12VHBL 12 7.5~13.5 0.350 4.20 4500 0.12 4.13 12.70 0.50 40.5 JF6028D12HVBL 12 7.5~13.5 0.400 4.80 5000 0.13 4.54 16.62 0.65 43.5 JF6028D24LBL 24 18~26.5 0.050 1.20 2500 0.06 2.24 3.31 0.13 24.4 JF6028D24MBL 24 18~26.5 0.070 1.68 3000 0.08 2.78 5.12 0.20 25.5 JF6028D24HBL 24 18~26.5 0.110 2.64 3500 0.09 3.16 7.13 0.28 33.6 JF6028D24HHBL 24 18~26.5 0.150 3.60 4000 0.10 3.67 9.72 0.38 36.9 JF6028D24VHBL 24 18~26.5 0.160 3.84 4500 0.12 4.13 12.70 0.50 40.5 JF6028D24HVBL 24 18~26.5 0.180 4.32 5000 0.13 4.54 16.62 0.65 43.5
Product specifications
- productType
- 鼓风机
- brand
- JIEFENGFAN
- housingMaterial
- 塑料PBT+28%GF
- bladeMaterial
- 塑料 PBT+28%GF
- overallSize
- 59.2*56.6*28.0 MM
- mountingSize
- 61.5 MM
- mountingHoleDiameter
- Φ4.3
- Ventilation Opening Size
- φ35.6 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 含油/滚珠
- powerType
- 直流
- ratedVoltage
- 12V/24V
- ratedPower
- 1.2/4.32 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 2500/5000 RPM
- airFlow
- 2.24/4.54 CFM
- airPressure
- 0.13/0.654 inch-H₂O
- noiseLevel
- 43.5 dBA
- protectionGrade
- IP43
- lifeSpan
- 30000 h
- weight
- 85.0 g
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
