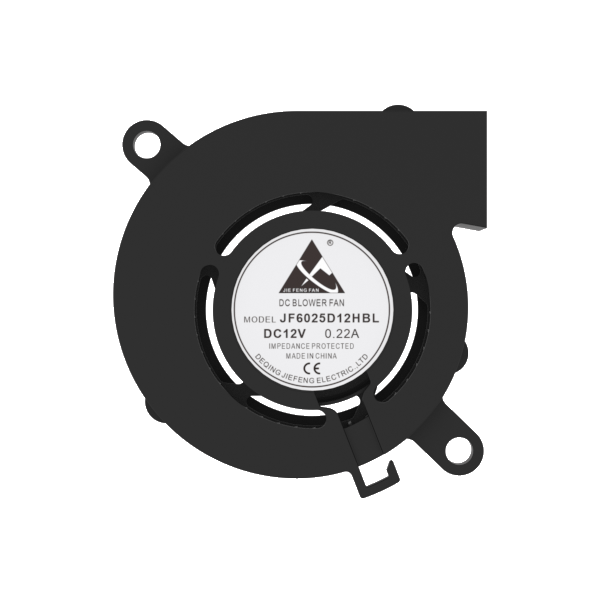

JF6025D12HL
Product Parameters:
- Brand：
- JIEFENGFAN
- Housing Material：
- Plastic PBT+28%GF
- Impeller Material：
- Plastic PBT+28%GF
- Overall Size：
- 59.2*59.2*24.5 MM
- Mounting Size：
- 70.5 MM
- Mounting Hole Diameter：
- Φ4.3
- Ventilation Opening Size：
- φ35.5 MM
- Motor Type：
- 无刷Motor
- Insulation Class：
- Class B
- Drive Type：
- Sleeve/Ball
- Power Type：
- DC
- Rated Voltage：
- 12V/24V
- Rated Power：
- 1.2/4.32 W
- Working Temperature：
- -30℃~+70℃
- Working Humidity：
- 30%~70%RH
- Speed：
- 2500/5000 RPM
- Air Flow：
- 2.24/4.54 CFM
- Air Pressure：
- 0.13/0.654 inch-H₂O
- Noise Level：
- 43.5 dBA
- Protection Grade：
- IP43
- Life Span：
- 30000 h
- Weight：
- 78.0 g
- Connection Method：
- Lead Wire/Terminal
- Safety Certification：
- CE/ROHS
- Custom Function：
- RD/FG/PWM/Locked Rotor/Soft Start

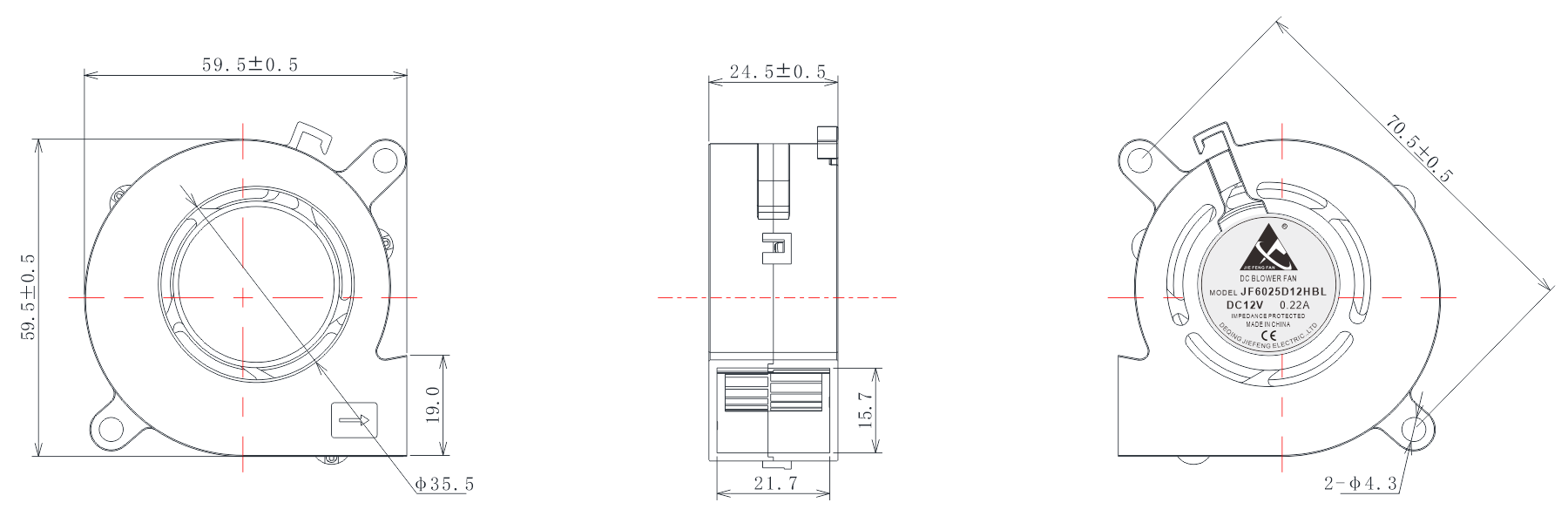

Product dimension drawing:
Unit: mm
Specification Table:
| Model | Rated Voltage | Operating Voltage Range |
Rated Current | Rated Input Power | Speed | Maximum Airflow | Maximum Air Pressure | Noise | ||
| PART.NO. | VDC | VDC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A |
| JF6025D12LBL | 12 | 7.5~13.5 | 0.100 | 1.20 | 2500 | 0.06 | 2.24 | 3.31 | 0.13 | 24.4 |
| JF6025D12MBL | 12 | 7.5~13.5 | 0.140 | 1.68 | 3000 | 0.08 | 2.78 | 5.12 | 0.20 | 25.5 |
| JF6025D12HBL | 12 | 7.5~13.5 | 0.220 | 2.64 | 3500 | 0.09 | 3.16 | 7.13 | 0.28 | 33.6 |
| JF6025D12HHBL | 12 | 7.5~13.5 | 0.300 | 3.60 | 4000 | 0.10 | 3.67 | 9.72 | 0.38 | 36.9 |
| JF6025D12VHBL | 12 | 7.5~13.5 | 0.350 | 4.20 | 4500 | 0.12 | 4.13 | 12.70 | 0.50 | 40.5 |
| JF6025D12HVBL | 12 | 7.5~13.5 | 0.400 | 4.80 | 5000 | 0.13 | 4.54 | 16.62 | 0.65 | 43.5 |
| JF6025D24LBL | 24 | 18~26.5 | 0.050 | 1.20 | 2500 | 0.06 | 2.24 | 3.31 | 0.13 | 24.4 |
| JF6025D24MBL | 24 | 18~26.5 | 0.070 | 1.68 | 3000 | 0.08 | 2.78 | 5.12 | 0.20 | 25.5 |
| JF6025D24HBL | 24 | 18~26.5 | 0.110 | 2.64 | 3500 | 0.09 | 3.16 | 7.13 | 0.28 | 33.6 |
| JF6025D24HHBL | 24 | 18~26.5 | 0.150 | 3.60 | 4000 | 0.10 | 3.67 | 9.72 | 0.38 | 36.9 |
| JF6025D24VHBL | 24 | 18~26.5 | 0.160 | 3.84 | 4500 | 0.12 | 4.13 | 12.70 | 0.50 | 40.5 |
| JF6025D24HVBL | 24 | 18~26.5 | 0.180 | 4.32 | 5000 | 0.13 | 4.54 | 16.62 | 0.65 | 43.5 |
