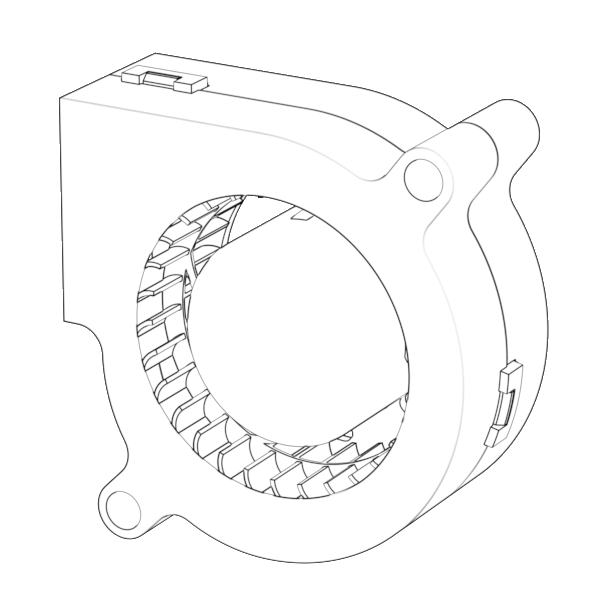

JF5020D12HL
JF5020D12HL from Jiefeng Electric. DC Blower Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM and ODM…
Product overview

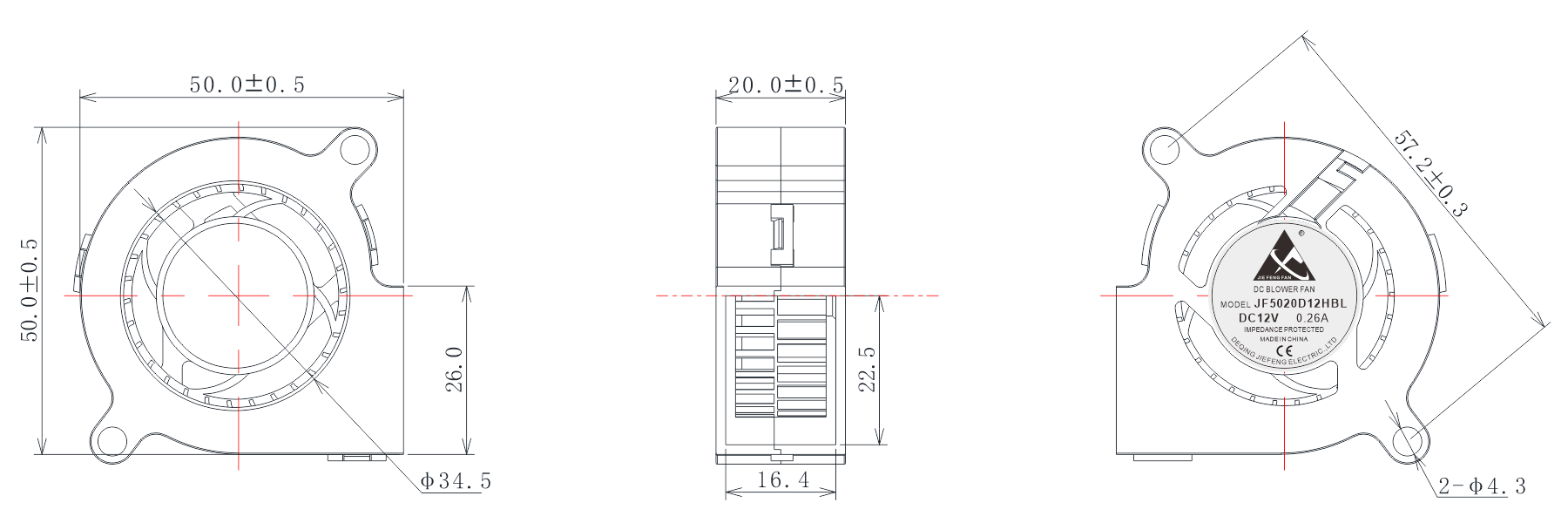

Product dimension drawing: Unit: mm Specification Table: Model Rated Voltage Operating Voltage Range Rated Current Rated Input Power Speed Maximum Airflow Maximum Air Pressure Noise PART.NO. VDC VDC Amp Watt R.P.M M³/min CFM mmH2O InH2O dB-A JF5020D05LBL 5 3.6~6.8 0.340 1.68 4000 0.06 2.13 4.00 0.16 31.5 JF5020D05LLBL 5 3.6~6.8 0.430 2.16 4500 0.09 3.04 6.68 0.26 34.2 JF5020D05MBL 5 3.6~6.8 0.530 2.64 5000 0.10 3.40 8.56 0.34 38.9 JF5020D12LBL 12 7.5~13.5 0.140 1.68 4000 0.06 2.13 4.00 0.16 31.5 JF5020D12LLBL 12 7.5~13.5 0.180 2.16 4500 0.09 3.04 6.68 0.26 34.2 JF5020D12MBL 12 7.5~13.5 0.220 2.64 5000 0.10 3.40 8.56 0.34 38.9 JF5020D12HBL 12 7.5~13.5 0.260 3.12 5500 0.10 3.60 10.81 0.43 39.9 JF5020D12HHBL 12 7.5~13.5 0.300 3.60 6000 0.11 3.79 13.33 0.53 42.7 JF5020D24LBL 24 18~26.5 0.070 1.68 4000 0.06 2.13 4.00 0.16 31.5 JF5020D24LLBL 24 18~26.5 0.090 2.16 4500 0.09 3.04 6.68 0.26 34.2 JF5020D24MBL 24 18~26.5 0.110 2.64 5000 0.10 3.40 8.56 0.34 38.9 JF5020D24HBL 24 18~26.5 0.130 3.12 5500 0.10 3.60 10.81 0.43 39.9 JF5020D24HHBL 24 18~26.5 0.150 3.60 6000 0.11 3.79 13.33 0.53 42.7
Product specifications
- productType
- 鼓风机
- brand
- JIEFENGFAN
- housingMaterial
- 塑料PBT+28%GF
- bladeMaterial
- 塑料 PBT+28%GF
- overallSize
- 50.0*50.0*19.8 MM
- mountingSize
- 57.2 MM
- mountingHoleDiameter
- Φ4.3
- Ventilation Opening Size
- φ34.5 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 液压/含油/滚珠
- powerType
- 直流
- ratedVoltage
- 5V/12V/24V
- ratedPower
- 1.68/3.6 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 4000/6000 RPM
- airFlow
- 2.13/3.79 CFM
- airPressure
- 0.157/0.525 inch-H₂O
- noiseLevel
- 42.7 dBA
- protectionGrade
- IP43
- lifeSpan
- 30000 h
- weight
- 32.0 g
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
