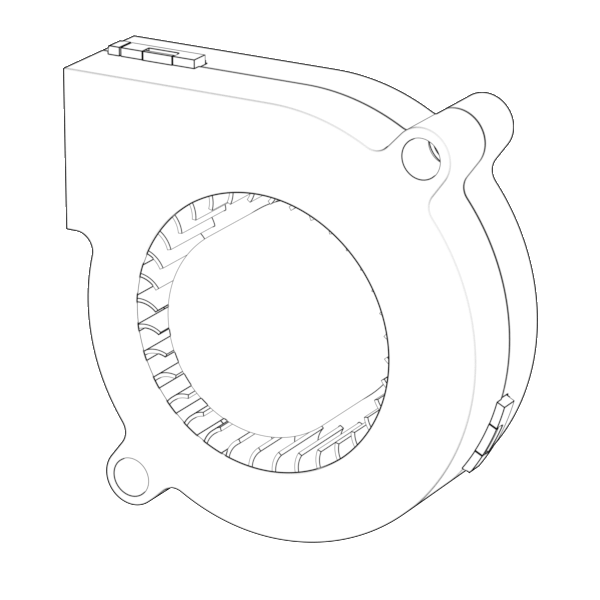

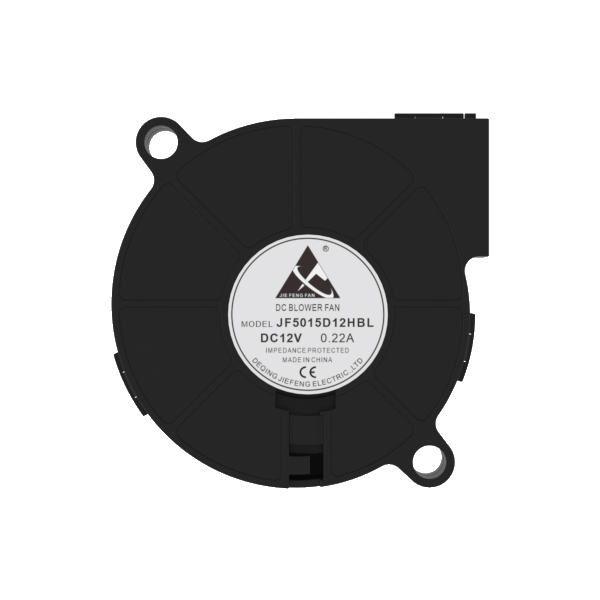

JF5015D12HL
JF5015D12HL from Jiefeng Electric. DC Blower Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM and ODM…
Product overview

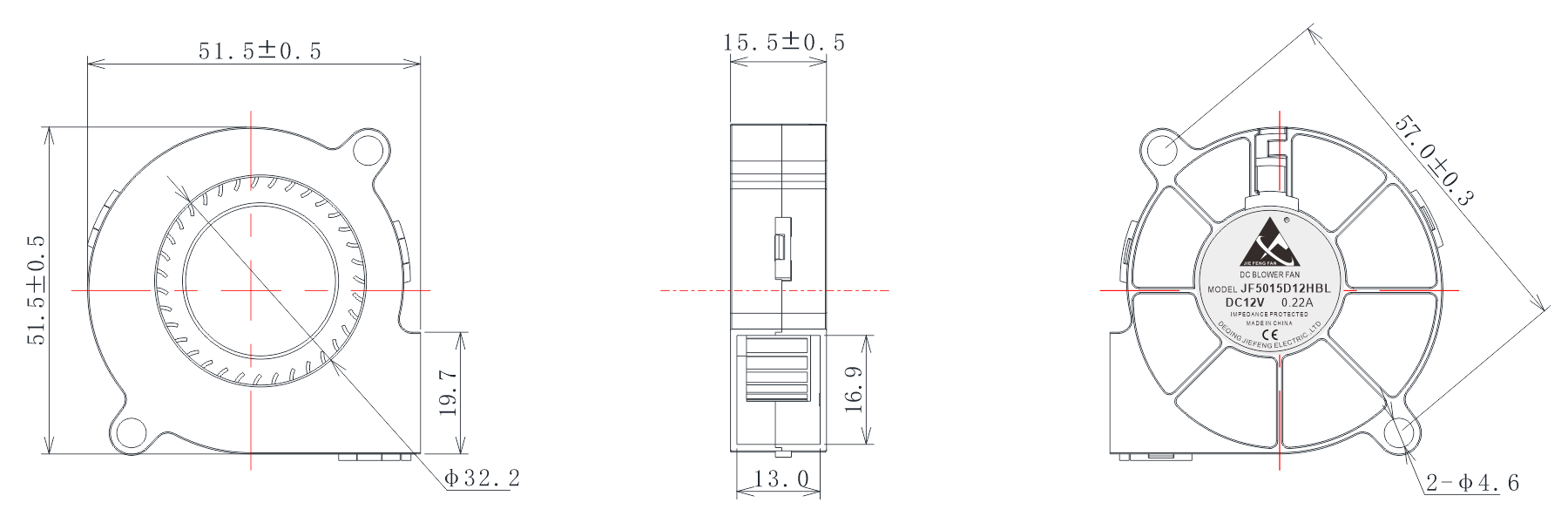

Product dimension drawing: Unit: mm Specification Table: Model Rated Voltage Operating Voltage Range Rated Current Rated Input Power Speed Maximum Airflow Maximum Air Pressure Noise PART.NO. VDC VDC Amp Watt R.P.M M³/min CFM mmH2O InH2O dB-A JF5015D05LBL 5 3.6~6.8 0.340 1.68 4000 0.08 2.81 7.56 0.26 34.3 JF5015D05MBL 5 3.6~6.8 0.430 2.16 4500 0.09 3.15 9.69 0.38 37.1 JF5015D05HBL 5 3.6~6.8 0.530 2.64 5000 0.10 3.54 12.57 0.50 39.6 JF5015D05HHBL 5 3.6~6.8 0.620 3.12 5500 0.11 3.96 16.12 0.64 42.5 JF5015D05VHBL 5 3.6~6.8 0.720 3.60 6000 0.12 4.23 19.38 0.76 44.3 JF5015D05HVBL 5 3.6~6.8 0.768 3.84 6500 0.13 4.71 23.98 0.94 46.3 JF5015D12LBL 12 7.5~13.5 0.140 1.68 4000 0.08 2.81 7.56 0.26 34.3 JF5015D12MBL 12 7.5~13.5 0.180 2.16 4500 0.09 3.15 9.69 0.38 37.1 JF5015D12HBL 12 7.5~13.5 0.220 2.64 5000 0.10 3.54 12.57 0.50 39.6 JF5015D12HHBL 12 7.5~13.5 0.260 3.12 5500 0.11 3.96 16.12 0.64 42.5 JF5015D12VHBL 12 7.5~13.5 0.300 3.60 6000 0.12 4.23 19.38 0.76 44.3 JF5015D12HVBL 12 7.5~13.5 0.320 3.84 6500 0.13 4.71 23.98 0.94 46.3
Product specifications
- productType
- 鼓风机
- brand
- JIEFENGFAN
- housingMaterial
- 塑料PBT+28%GF
- bladeMaterial
- 塑料 PBT+28%GF
- overallSize
- 51.5*51.5*15.5 MM
- mountingSize
- 57.0 MM
- mountingHoleDiameter
- Φ4.6
- Ventilation Opening Size
- φ32.2 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 液压/含油/滚珠
- powerType
- 直流
- ratedVoltage
- 5V/12V
- ratedPower
- 1.68/3.84 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 4000/6500 RPM
- airFlow
- 2.81/4.71 CFM
- airPressure
- 0.258/0.944 inch-H₂O
- noiseLevel
- 46.3 dBA
- protectionGrade
- IP43
- lifeSpan
- 30000 h
- weight
- 27.0 g
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
