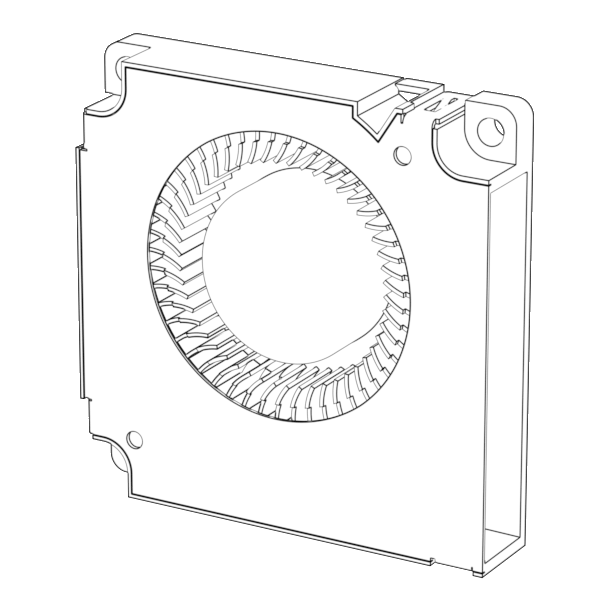

JF5010D12HL-M
JF5010D12HL-M from Jiefeng Electric. DC Blower Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM and O…
Product overview

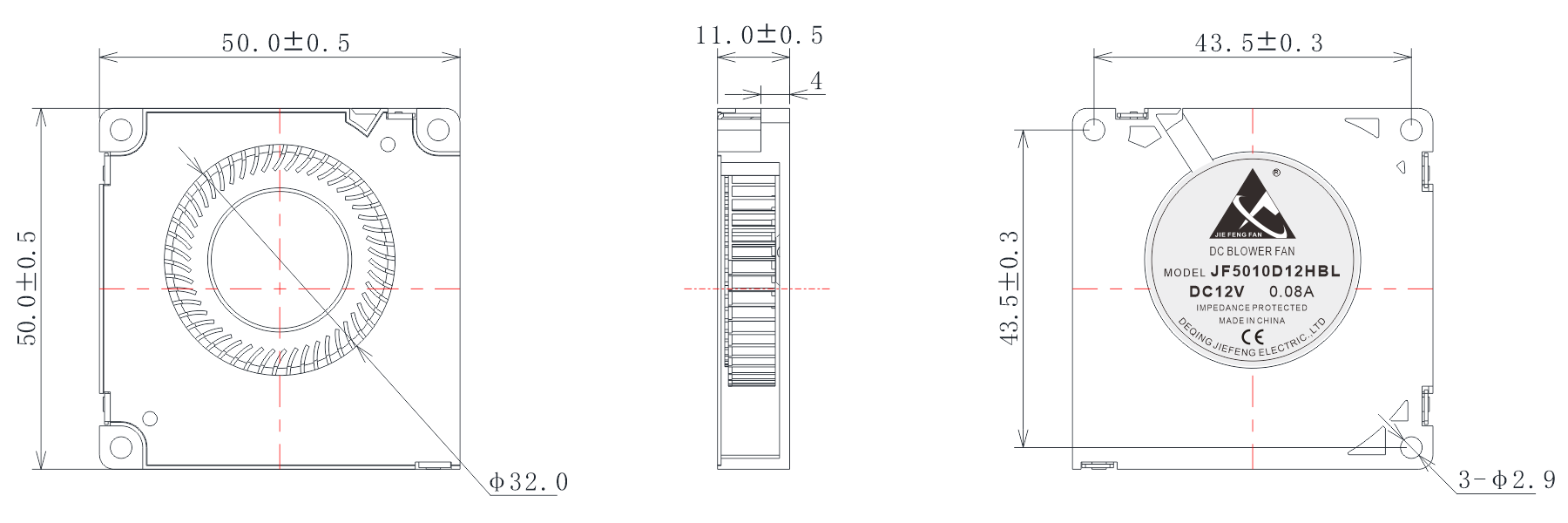

Product dimension drawing: Unit: mm Specification Table: Model Rated Voltage Operating Voltage Range Rated Current Rated Input Power Speed Maximum Airflow Maximum Air Pressure Noise PART.NO. VDC VDC Amp Watt R.P.M M³/min CFM mmH2O InH2O dB-A JF5010D05LBL 5 3.6~6.8 0.050 0.25 3500 0.05 1.87 3.18 0.13 22.5 JF5010D05MBL 5 3.6~6.8 0.070 0.35 4500 0.07 2.40 5.64 0.22 28.0 JF5010D05HBL 5 3.6~6.8 0.120 0.60 5500 0.09 3.04 9.47 0.37 32.5 JF5010D05HHBL 5 3.6~6.8 0.160 0.80 6500 0.11 3.88 13.43 0.53 37.5 JF5010D12LBL 12 7.5~13.5 0.040 0.48 3500 0.05 1.87 3.18 0.13 22.5 JF5010D12MBL 12 7.5~13.5 0.050 0.60 4500 0.07 2.40 5.64 0.22 28.0 JF5010D12HBL 12 7.5~13.5 0.080 0.96 5500 0.09 3.04 9.47 0.37 32.5 JF5010D12HHBL 12 7.5~13.5 0.090 1.08 6500 0.11 3.88 13.43 0.53 37.5
Product specifications
- productType
- 鼓风机
- brand
- JIEFENGFAN
- housingMaterial
- 塑料PBT+28%GF
- bladeMaterial
- 塑料 PBT+28%GF
- overallSize
- 50.0*50.0*11.0 MM
- mountingSize
- 43.5*43.5 MM
- mountingHoleDiameter
- Φ2.9
- Ventilation Opening Size
- φ32.0 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 液压/含油/滚珠
- powerType
- 直流
- ratedVoltage
- 5V/12V
- ratedPower
- 0.25/1.08 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 3500/6500 RPM
- airFlow
- 1.87/3.88 CFM
- airPressure
- 0.125/0.525 inch-H₂O
- noiseLevel
- 37.5 dBA
- protectionGrade
- IP43
- lifeSpan
- 30000/50000 h
- weight
- 16 g
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
