YZF5-13
Product Parameters:
- Brand：
- JIEFENGFAN
- Housing Material：
- ADC/12
- Surface Treatment：
- 干式喷砂
- Impeller Material：
- Aluminum板1060
- Impeller Diameter：
- φ172/φ200 MM
- Blade Quantity：
- 5
- Overall Size：
- 83.5*83.5*77.0 MM
- Mounting Size：
- 18.0 MM
- Mounting Hole Diameter：
- Φ4.3
- Motor Type：
- Shaded Pole Motor
- Insulation Class：
- Class B
- Drive Type：
- Ball
- Power Type：
- AC
- Rated Voltage：
- 110V/220V
- Rated Power：
- 25/33 W
- Working Temperature：
- -30℃~+60℃
- Working Humidity：
- 30%~70%RH
- Speed：
- 1300/1550 RPM
- Protection Grade：
- IP43
- Life Span：
- 40000 h
- Weight：
- 0.8 kg
- Connection Method：
- Lead Wire/Terminal
- Safety Certification：
- 3C/CE/ROHS
- Custom Function：
- Dual Voltage

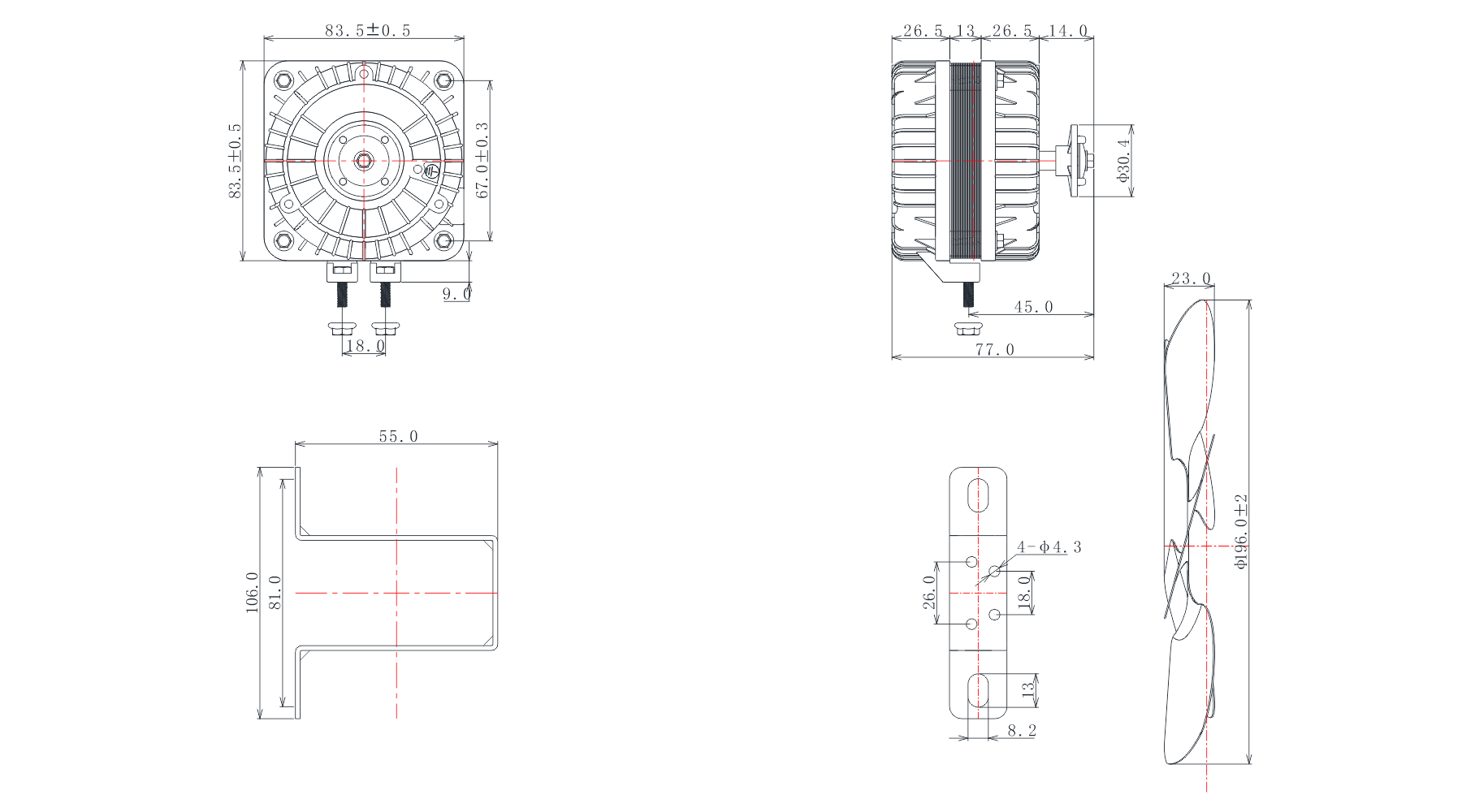

Product dimension drawing:
Unit: mm
Specification Table:
| Model | Voltage | Freq | Input Power | Output Power | Current | Speed | Fan Blade | Bracket |
| PART.NO. | VAC | Hz | Watt | Watt | AMP | RPM | mm | mm |
| YZF3-13 | 220 | 50 | 25 | 3 | 0.18 | 1300 | 172 | H72 |
| 110 | 60 | 25 | 3 | 0.33 | 1550 | 172 | H72 | |
| YZL5-13 | 220 | 50 | 33 | 5 | 0.21 | 1300 | 200 | H72 |
| 110 | 60 | 33 | 5 | 0.40 | 1550 | 200 | H72 |
