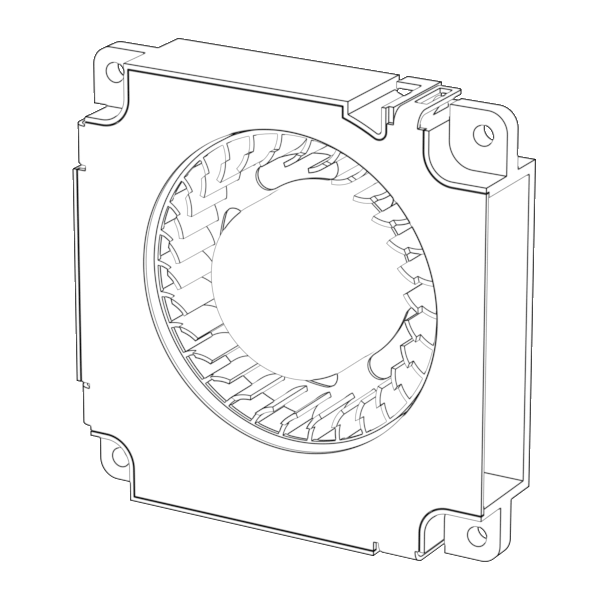

JF4510D12HL-M
Product Parameters:
- Brand：
- JIEFENGFAN
- Housing Material：
- Plastic PBT+28%GF
- Impeller Material：
- Plastic PBT+28%GF
- Overall Size：
- 45.3*45.3*10.5 MM
- Mounting Size：
- 40.0*40.0 MM
- Mounting Hole Diameter：
- Φ1.8
- Ventilation Opening Size：
- φ32.0 MM
- Motor Type：
- 无刷Motor
- Insulation Class：
- Class B
- Drive Type：
- 液压/Sleeve/Ball
- Power Type：
- DC
- Rated Voltage：
- 5V/12V
- Rated Power：
- 0.90/2.05 W
- Working Temperature：
- -30℃~+70℃
- Working Humidity：
- 30%~70%RH
- Speed：
- 6000/10000 RPM
- Air Flow：
- 2.22/4.17 CFM
- Air Pressure：
- 0.267/0.747 inch-H₂O
- Noise Level：
- 39 dBA
- Protection Grade：
- IP43
- Life Span：
- 30000/50000 h
- Weight：
- 17.0 g
- Connection Method：
- Lead Wire/Terminal
- Safety Certification：
- CE/ROHS
- Custom Function：
- RD/FG/PWM/Locked Rotor/Soft Start

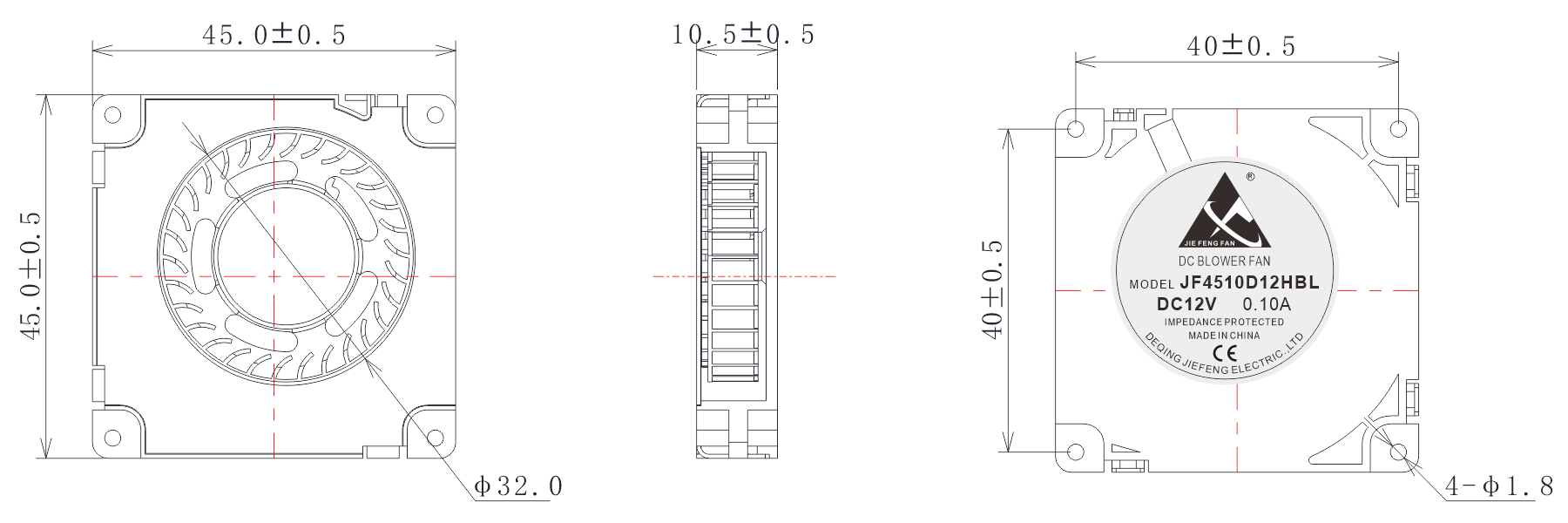

Product dimension drawing:
Unit: mm
Specification Table:
| Model | Rated Voltage | Operating Voltage Range |
Rated Current | Rated Input Power | Speed | Maximum Airflow | Maximum Air Pressure | Noise | ||
| PART.NO. | VDC | VDC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A |
| JF4510D05MBL | 5 | 3.6~6.8 | 0.180 | 0.90 | 6000 | 0.06 | 2.22 | 6.78 | 0.27 | 27.8 |
| JF4510D05HBL | 5 | 3.6~6.8 | 0.240 | 1.20 | 7000 | 0.08 | 2.72 | 9.95 | 0.39 | 31.2 |
| JF4510D05HHBL | 5 | 3.6~6.8 | 0.250 | 1.45 | 8000 | 0.09 | 3.21 | 13.20 | 0.52 | 34.0 |
| JF4510D05VHBL | 5 | 3.6~6.8 | 0.350 | 1.75 | 9000 | 0.10 | 3.67 | 17.03 | 0.67 | 36.8 |
| JF4510D05HVBL | 5 | 3.6~6.8 | 0.410 | 2.05 | 10000 | 0.12 | 4.17 | 18.96 | 0.75 | 39.0 |
| JF4510D12MBL | 12 | 7.5~13.5 | 0.075 | 0.90 | 6000 | 0.06 | 2.22 | 6.78 | 0.27 | 27.8 |
| JF4510D12HBL | 12 | 7.5~13.5 | 0.100 | 1.20 | 7000 | 0.08 | 2.72 | 9.95 | 0.39 | 31.2 |
| JF4510D12HHBL | 12 | 7.5~13.5 | 0.121 | 1.45 | 8000 | 0.09 | 3.21 | 13.20 | 0.52 | 34.0 |
| JF4510D12VHBL | 12 | 7.5~13.5 | 0.146 | 1.75 | 9000 | 0.10 | 3.67 | 17.03 | 0.67 | 36.8 |
| JF4510D12HVBL | 12 | 7.5~13.5 | 0.171 | 2.05 | 10000 | 0.12 | 4.17 | 18.96 | 0.75 | 39.0 |
