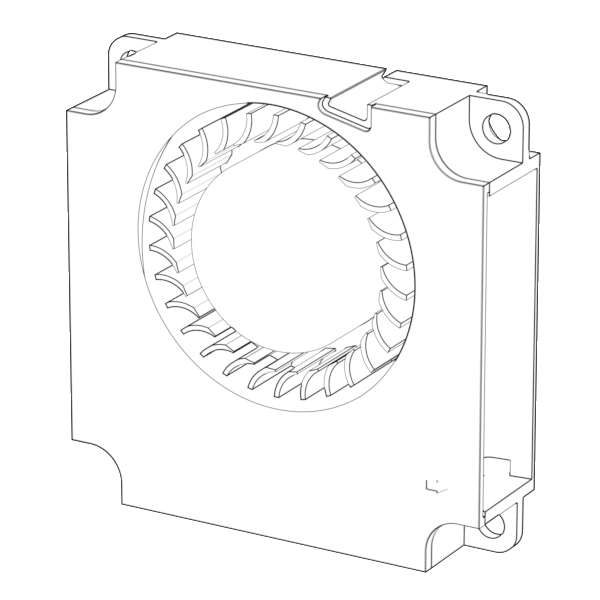

JF4010D12HL
Product Parameters:
- Brand：
- JIEFENGFAN
- Housing Material：
- Plastic PBT+28%GF
- Impeller Material：
- Plastic PBT+28%GF
- Overall Size：
- 39.9*39.9*10.1 MM
- Mounting Size：
- 35.0*35.0 MM
- Mounting Hole Diameter：
- Φ2.4
- Ventilation Opening Size：
- φ27.5 MM
- Motor Type：
- 无刷Motor
- Insulation Class：
- Class B
- Drive Type：
- Sleeve/Ball
- Power Type：
- DC
- Rated Voltage：
- 5V/12V
- Rated Power：
- 0.3/1.75 W
- Working Temperature：
- -30℃~+70℃
- Working Humidity：
- 30%~70%RH
- Speed：
- 4000/10000 RPM
- Air Flow：
- 1.09/3.2 CFM
- Air Pressure：
- 0.085/0.548 inch-H₂O
- Noise Level：
- 37 dBA
- Protection Grade：
- IP43
- Life Span：
- 30000/50000 h
- Weight：
- 10.0 g
- Connection Method：
- Lead Wire/Terminal
- Safety Certification：
- CE/ROHS
- Custom Function：
- RD/FG/PWM/Locked Rotor/Soft Start
Product dimension drawing:
Unit: mm
Specification Table:
| Model | Rated Voltage | Operating Voltage Range |
Rated Current | Rated Input Power | Speed | Maximum Airflow | Maximum Air Pressure | Noise | ||
| PART.NO. | VDC | VDC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A |
| JF4010D05LLBL | 5 | 3.6~6.8 | 0.060 | 0.30 | 4000 | 0.031 | 1.09 | 2.15 | 0.085 | 18.9 |
| JF4010D05LBL | 5 | 3.6~6.8 | 0.110 | 0.55 | 5000 | 0.038 | 1.34 | 3.03 | 0.119 | 23.3 |
| JF4010D05MBL | 5 | 3.6~6.8 | 0.150 | 0.75 | 6000 | 0.046 | 1.64 | 4.89 | 0.193 | 26.0 |
| JF4010D05HBL | 5 | 3.6~6.8 | 0.210 | 1.05 | 7000 | 0.057 | 2.03 | 7.17 | 0.282 | 25.3 |
| JF4010D05HHBL | 5 | 3.6~6.8 | 0.250 | 1.25 | 8000 | 0.069 | 2.42 | 9.50 | 0.374 | 32.1 |
| JF4010D05VHBL | 5 | 3.6~6.8 | 0.25 | 1.45 | 9000 | 0.078 | 2.76 | 12.86 | 0.506 | 35.0 |
| JF4010D05HVBL | 5 | 3.6~6.8 | 0.350 | 1.75 | 10000 | 0.090 | 3.20 | 13.93 | 0.548 | 37.0 |
| JF4010D12LLBL | 12 | 7.5~13.5 | 0.025 | 0.30 | 4000 | 0.031 | 1.09 | 2.15 | 0.085 | 18.9 |
| JF4010D12LBL | 12 | 7.5~13.5 | 0.046 | 0.55 | 5000 | 0.038 | 1.34 | 3.03 | 0.119 | 23.3 |
| JF4010D12MBL | 12 | 7.5~13.5 | 0.062 | 0.75 | 6000 | 0.046 | 1.64 | 4.89 | 0.193 | 26.0 |
| JF4010D12HBL | 12 | 7.5~13.5 | 0.090 | 1.05 | 7000 | 0.057 | 2.03 | 7.17 | 0.282 | 25.3 |
| JF4010D12HHBL | 12 | 7.5~13.5 | 0.100 | 1.25 | 8000 | 0.069 | 2.42 | 9.50 | 0.374 | 32.1 |
| JF4010D12VHBL | 12 | 7.5~13.5 | 0.120 | 1.45 | 9000 | 0.078 | 2.76 | 12.86 | 0.506 | 35.0 |
| JF4010D12HVBL | 12 | 7.5~13.5 | 0.146 | 1.75 | 10000 | 0.090 | 3.20 | 13.93 | 0.548 | 37.0 |
