JF3507D12HL-M
JF3507D12HL-M from Jiefeng Electric. DC Blower Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM and O…
Product overview

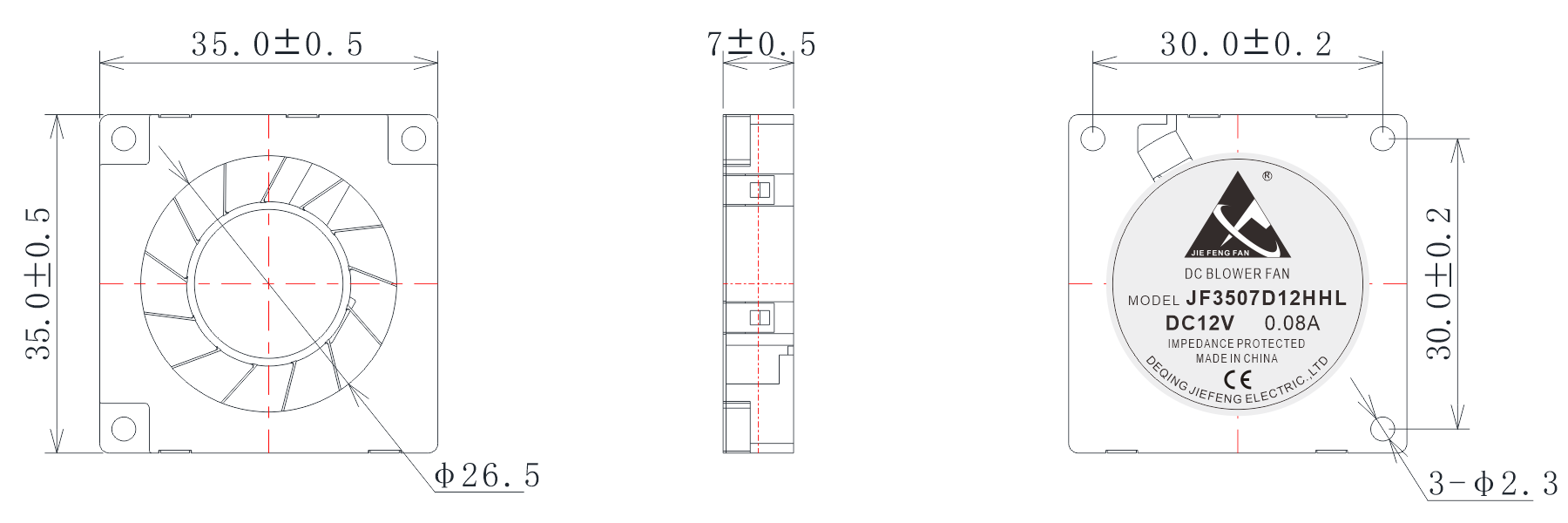

Product dimension drawing: Unit: mm Specification Table: Model Rated Voltage Operating Voltage Range Rated Current Rated Input Power Speed Maximum Airflow Maximum Air Pressure Noise PART.NO. VDC VDC Amp Watt R.P.M M³/min CFM mmH2O InH2O dB-A JF3507D05LHL 5 3.6~6.8 0.080 0.40 5000 0.02 0.84 4.08 0.16 23.9 JF3507D05MHL 5 3.6~6.8 0.120 0.60 6000 0.03 1.11 5.92 0.23 27.2 JF3507D05HHL 5 3.6~6.8 0.180 0.90 7500 0.04 1.39 9.84 0.39 32.3 JF3507D12LHL 12 7.5~13.5 0.033 0.40 5000 0.02 0.84 4.08 0.16 23.9 JF3507D12MHL 12 7.5~13.5 0.050 0.60 6000 0.03 1.11 5.92 0.23 27.2 JF3507D12HHL 12 7.5~13.5 0.075 0.90 7500 0.04 1.39 9.84 0.39 32.3
Product specifications
- productType
- 鼓风机
- brand
- JIEFENGFAN
- housingMaterial
- 塑料PBT+28%GF
- bladeMaterial
- 塑料 PBT+28%GF
- overallSize
- 35.0*35.0*7.32 MM
- mountingSize
- 30.0*30.0 MM
- mountingHoleDiameter
- Φ2.3
- Ventilation Opening Size
- φ26.5 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 液压
- powerType
- 直流
- ratedVoltage
- 5V/12V
- ratedPower
- 0.4/0.9 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 5000/7500 RPM
- airFlow
- 0.84/1.39 CFM
- airPressure
- 0.161/0.387 inch-H₂O
- noiseLevel
- 32.3 dBA
- protectionGrade
- IP43
- lifeSpan
- 30000 h
- weight
- 8.5 g
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
