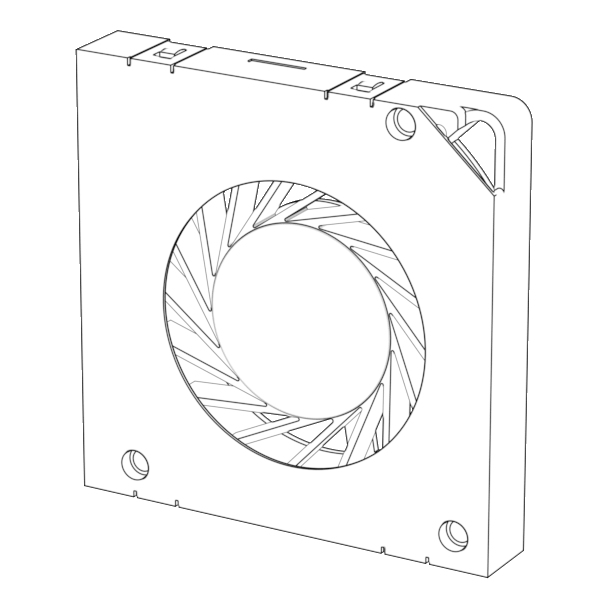

JF3005D05HL-M
Product Parameters:
- Brand：
- JIEFENGFAN
- Housing Material：
- Plastic PBT+28%GF
- Impeller Material：
- Plastic PBT+28%GF
- Overall Size：
- 30.5*30.5*4.8 MM
- Mounting Size：
- 26.0*26.0 MM
- Mounting Hole Diameter：
- Φ1.5
- Ventilation Opening Size：
- φ19.0 MM
- Motor Type：
- 无刷Motor
- Insulation Class：
- Class B
- Drive Type：
- 液压
- Power Type：
- DC
- Rated Voltage：
- 2V/3V/5V
- Rated Power：
- 0.06/0.35 W
- Working Temperature：
- -30℃~+70℃
- Working Humidity：
- 30%~70%RH
- Speed：
- 4300/11000 RPM
- Air Flow：
- 0.26/0.73 CFM
- Air Pressure：
- 0.046/0.376 inch-H₂O
- Noise Level：
- 28.6 dBA
- Protection Grade：
- IP43
- Life Span：
- 30000 h
- Weight：
- 6.0 g
- Connection Method：
- Lead Wire/Terminal
- Safety Certification：
- CE/ROHS
- Custom Function：
- RD/FG/PWM/Locked Rotor/Soft Start

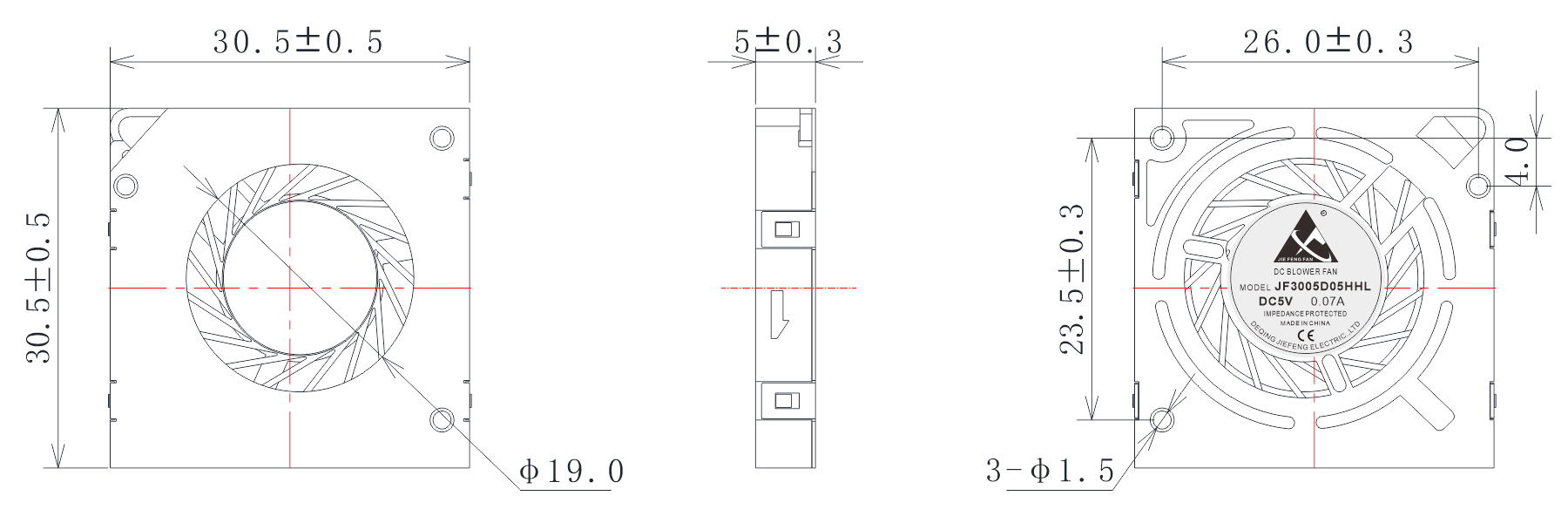

Product dimension drawing:
Unit: mm
Specification Table:
| Model | Rated Voltage | Operating Voltage Range |
Rated Current | Rated Input Power | Speed | Maximum Airflow | Maximum Air Pressure | Noise | ||
| PART.NO. | VDC | VDC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A |
| JF3005D05HHL | 5 | 3.6~6.8 | 0.070 | 0.35 | 11000 | 0.02 | 0.73 | 9.57 | 0.38 | 28.6 |
| JF3005D03HHL | 3 | 1.9~3.5 | 0.050 | 0.17 | 7000 | 0.01 | 0.39 | 3.05 | 0.12 | ＜18 |
| JF3005D02HHL | 2 | 1.9~2.5 | 0.030 | 0.06 | 4300 | 0.01 | 0.26 | 1.16 | 0.05 | ＜18 |
