JF2006D12HL-M
Product Parameters:
- Brand：
- JIEFENGFAN
- Housing Material：
- Plastic PBT+28%GF
- Impeller Material：
- Plastic PBT+28%GF
- Overall Size：
- 20.22*20.22*6.1 MM
- Mounting Size：
- 16.0*16.0 MM
- Mounting Hole Diameter：
- Φ1.5
- Ventilation Opening Size：
- φ16.0 MM
- Motor Type：
- 无刷Motor
- Insulation Class：
- Class B
- Drive Type：
- 液压
- Power Type：
- DC
- Rated Voltage：
- 5V/12V
- Rated Power：
- 0.2 W
- Working Temperature：
- -30℃~+70℃
- Working Humidity：
- 30%~70%RH
- Speed：
- 10000 RPM
- Air Flow：
- 0.21 CFM
- Air Pressure：
- 0.048 inch-H₂O
- Noise Level：
- 18 dBA
- Protection Grade：
- IP43
- Life Span：
- 30000 h
- Weight：
- 6.0 g
- Connection Method：
- Lead Wire/Terminal
- Safety Certification：
- CE/ROHS
- Custom Function：
- RD/FG/PWM/Locked Rotor/Soft Start

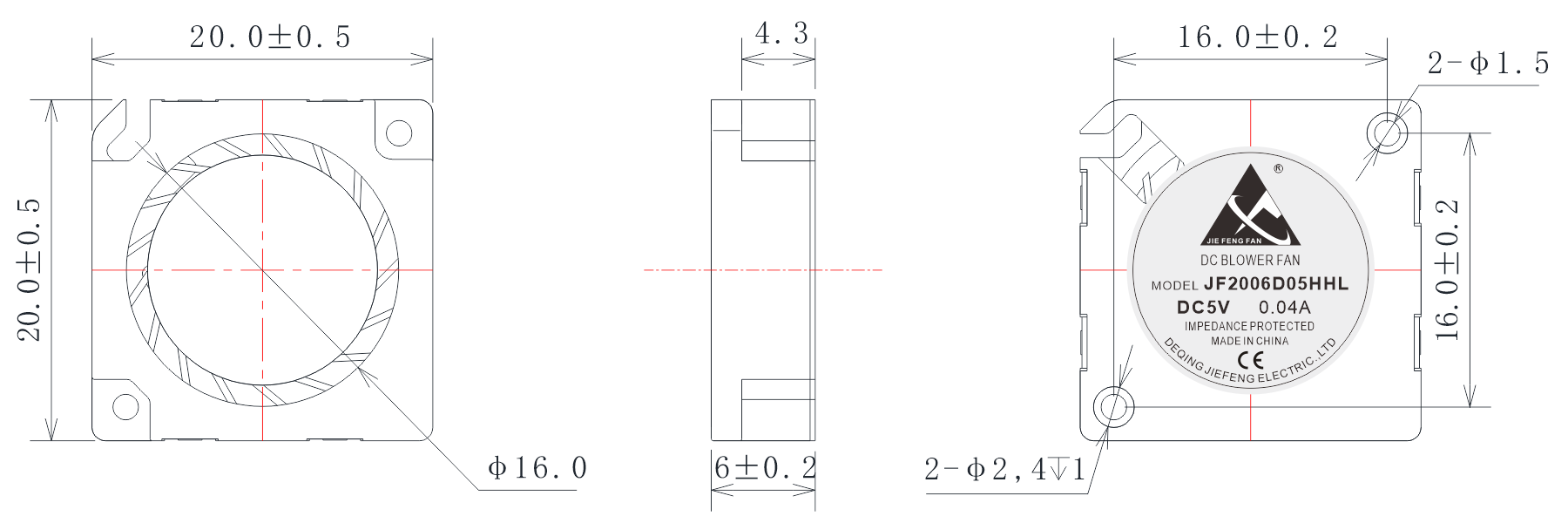

Product dimension drawing:
Unit: mm
Specification Table:
| Model | Rated Voltage | Operating Voltage Range |
Rated Current | Rated Input Power | Speed | Maximum Airflow | Maximum Air Pressure | Noise | ||
| PART.NO. | VDC | VDC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A |
| JF2006D05HHL | 5 | 3.6~6.8 | 0.040 | 0.20 | 10000 | 0.01 | 0.21 | 1.21 | 0.05 | ＜18 |
| JF2006D12HHL | 12 | 7.5~13.5 | 0.017 | 0.20 | 10000 | 0.01 | 0.21 | 1.21 | 0.05 | ＜18 |
