YWFF2E-140-060M-BA
YWFF2E-140-060M-BA from Jiefeng Electric. AC Centrifugal Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications.…
Product overview

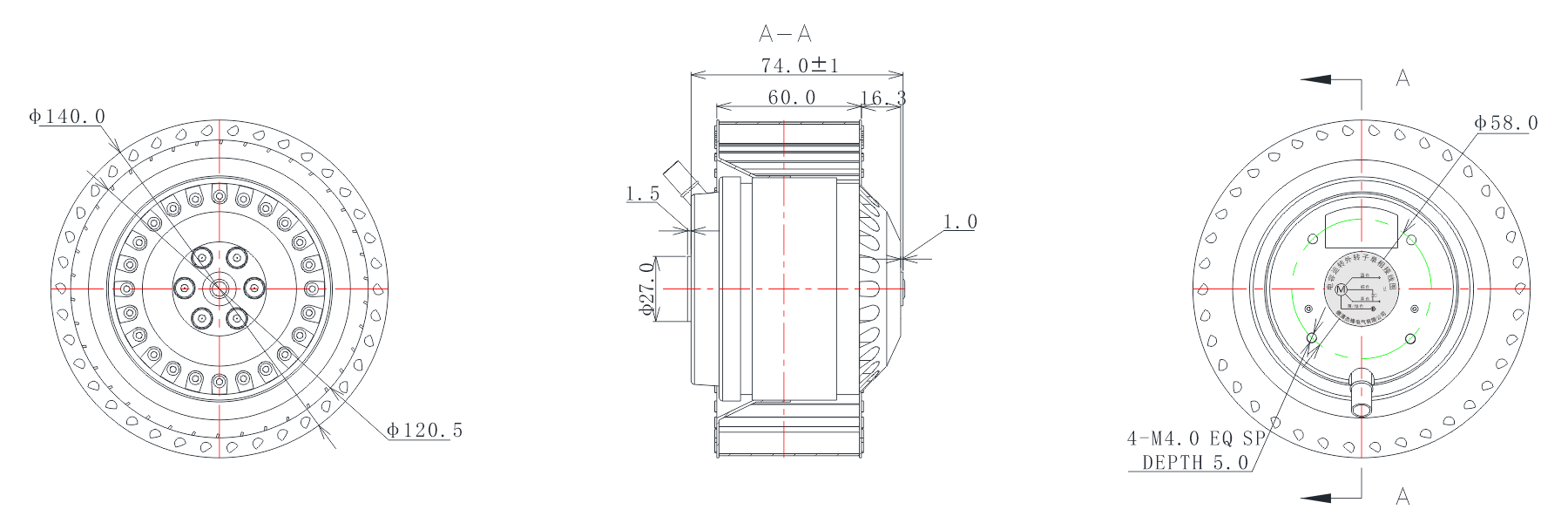

Product dimension drawing: Unit: mm Specification Table: Model Voltage VAC Freq Current Power Speed Capacitor Airflow Temperature Noise Type V Hz A W RPM μF m³/h CFM Min/Max ℃ dB(A) YWFF2E-140-060-BA 220 50 0.42 100 1600 2 340 200 -30/+60 52 220 60 0.47 110 1500 2 306 180 -30/+60 58
Product specifications
- productType
- 离心风机
- brand
- JIEFENGFAN
- bladeMaterial
- 钢板DC01/Q195
- bladeDiameter
- φ140.0 MM
- overallSize
- φ140.0*75.5 MM
- mountingSize
- φ58.0 MM
- mountingHoleDiameter
- M4.0|深度5.0
- Ventilation Opening Size
- φ120.5 MM
- motorType
- 感应异步外转子电机
- insulationClass
- F级
- driveType
- 滚珠
- powerType
- 交流
- ratedVoltage
- 110V/220V/380V
- capacitorModel
- 2 µF
- ratedPower
- 100/110 W
- workingTemperature
- -30℃~+60℃
- workingHumidity
- 30%~70%RH
- speed
- 1500/1600 RPM
- airFlow
- 180/200 CFM
- airPressure
- 1.3/1.91 inch-H₂O
- noiseLevel
- 58 dBA
- protectionGrade
- IP44
- lifeSpan
- 40000 h
- weight
- 2.1 kg
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- 双电压 速度可调
