YWFF2E-133-073M-BA
YWFF2E-133-073M-BA from Jiefeng Electric. AC Centrifugal Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications.…
Reliable Thermal Management Technology

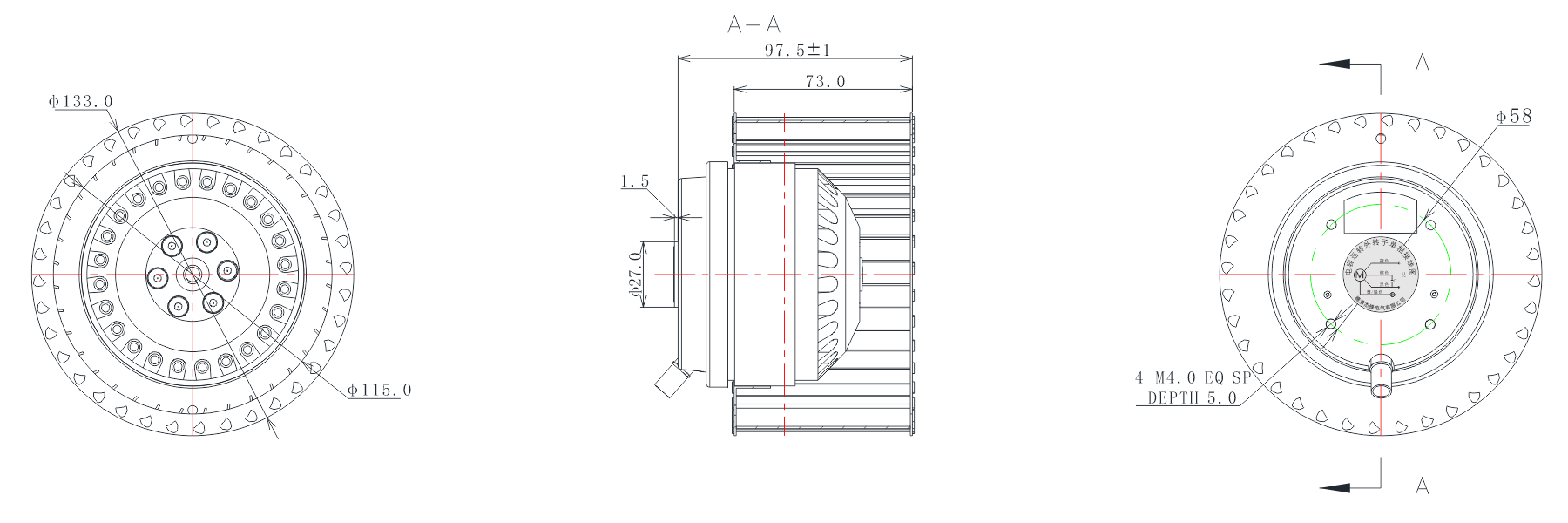

Product dimension drawing:
Unit: mm
Specification Table:
| Model | Voltage VAC | Freq | Current | Power | Speed | Capacitor | Airflow | Temperature | Noise | |
| Type | V | Hz | A | W | RPM | μF | m³/h | CFM | Min/Max ℃ | dB(A) |
| YWFF2E-133-073-BA | 220 | 50 | 0.32 | 70 | 2300 | 2 | 272 | 160 | -30/+60 | 61 |
| 220 | 60 | 0.40 | 85 | 2350 | 2 | 289 | 170 | -30/+60 | 63 | |
Product Parameters
- Product Type
- 离心风机
- Brand
- JIEFENGFAN
- Impeller Material
- 钢板Q195
- Impeller Diameter
- φ133.0 MM
- Overall Size
- φ133.0*99.0 MM
- Mounting Size
- φ58.0 MM
- Mounting Hole Diameter
- M4.0|深度5.0
- Ventilation Opening Size
- φ115.0 MM
- Motor Type
- 感应异步外转子电机
- Insulation Class
- F级
- Drive Type
- 滚珠
- Power Type
- 交流
- Rated Voltage
- 110V/220V/380V
- Capacitor Model
- 2 µF
- Rated Power
- 70/80 W
- Working Temperature
- -30℃~+60℃
- Working Humidity
- 30%~70%RH
- Speed
- 2300/2350 RPM
- Air Flow
- 160/170 CFM
- Air Pressure
- 1.4/1.8 inch-H₂O
- Noise Level
- 63 dBA
- Protection Grade
- IP44
- Life Span
- 40000 h
- Weight
- 1.7 kg
- Connection Method
- 引线/端子
- Safety Certification
- CE/ROHS
- Custom Function
- 双电压 速度可调
