JF220D24HBL
JF220D24HBL from Jiefeng Electric. DC Centrifugual Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM a…
Reliable Thermal Management Technology

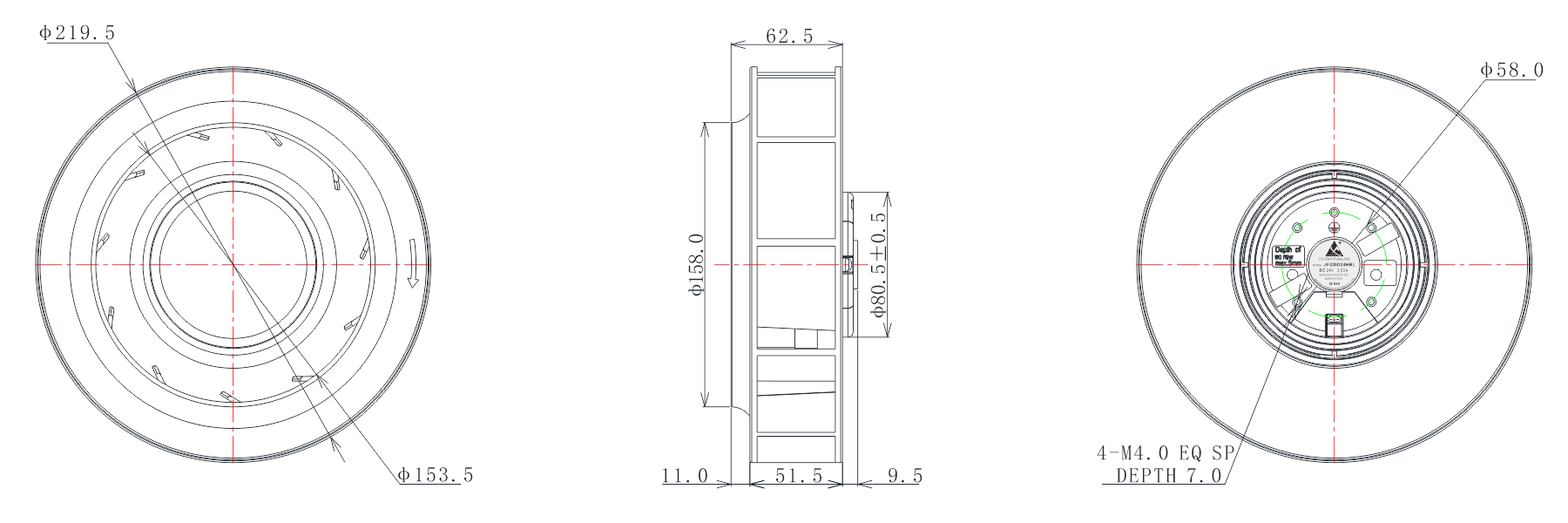

Product dimension drawing:
Unit: mm
Specification Table:
| Model | Rated Voltage | Operating Voltage Range |
Current | Power | Speed | Maximum Airflow | Maximum Air Pressure | Noise | ||
| PART NO. | VDC | VDC | A | W | R.P.M | M³/min | CFM | InH2O | pa | dBA |
| JF220D24LBL | 24 | 18~26.5 | 1.88 | 45.0 | 2300 | 12.74 | 450.00 | 1.38 | 343.62 | 65.0 |
| JF220D24MBL | 24 | 18~26.5 | 3.54 | 85.0 | 2600 | 14.43 | 510.00 | 1.64 | 408.36 | 71.0 |
| JF220D24HBL | 24 | 18~26.5 | 4.17 | 100.0 | 3100 | 15.99 | 565.00 | 2.71 | 674.79 | 74.0 |
| JF220D48LBL | 48 | 36~54 | 0.94 | 45.0 | 2300 | 12.74 | 450.00 | 1.38 | 343.62 | 65.0 |
| JF220D48MBL | 48 | 36~54 | 1.77 | 85.0 | 2600 | 14.43 | 510.00 | 1.64 | 408.36 | 71.0 |
| JF220D48HBL | 48 | 36~54 | 2.08 | 100.0 | 3100 | 15.99 | 565.00 | 2.71 | 674.79 | 74.0 |
Product Parameters
- Product Type
- 离心风机
- Brand
- JIEFENGFAN
- Impeller Material
- 塑料 PBT+28%GF
- Impeller Diameter
- φ219.5 MM
- Overall Size
- φ219.5*73.0 MM
- Mounting Size
- φ58.0 MM
- Mounting Hole Diameter
- M4.0|深度7.0
- Ventilation Opening Size
- φ153.5 MM
- Motor Type
- 无刷电机
- Insulation Class
- B级
- Drive Type
- 滚珠
- Power Type
- 直流
- Rated Voltage
- 24V/48V
- Rated Power
- 45/100 W
- Working Temperature
- -30℃~+70℃
- Working Humidity
- 30%~70%RH
- Speed
- 2300/3100 RPM
- Air Flow
- 450/565 CFM
- Air Pressure
- 1.38/2.71 inch-H₂O
- Noise Level
- 74 dBA
- Protection Grade
- IP43
- Life Span
- 40000 h
- Weight
- 1400.0 g
- Connection Method
- 引线/端子
- Safety Certification
- CE/ROHS
- Custom Function
- RD/FG/PWM/堵转/缓启
