JF190D24HBL
JF190D24HBL from Jiefeng Electric. DC Centrifugual Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM a…
Reliable Thermal Management Technology

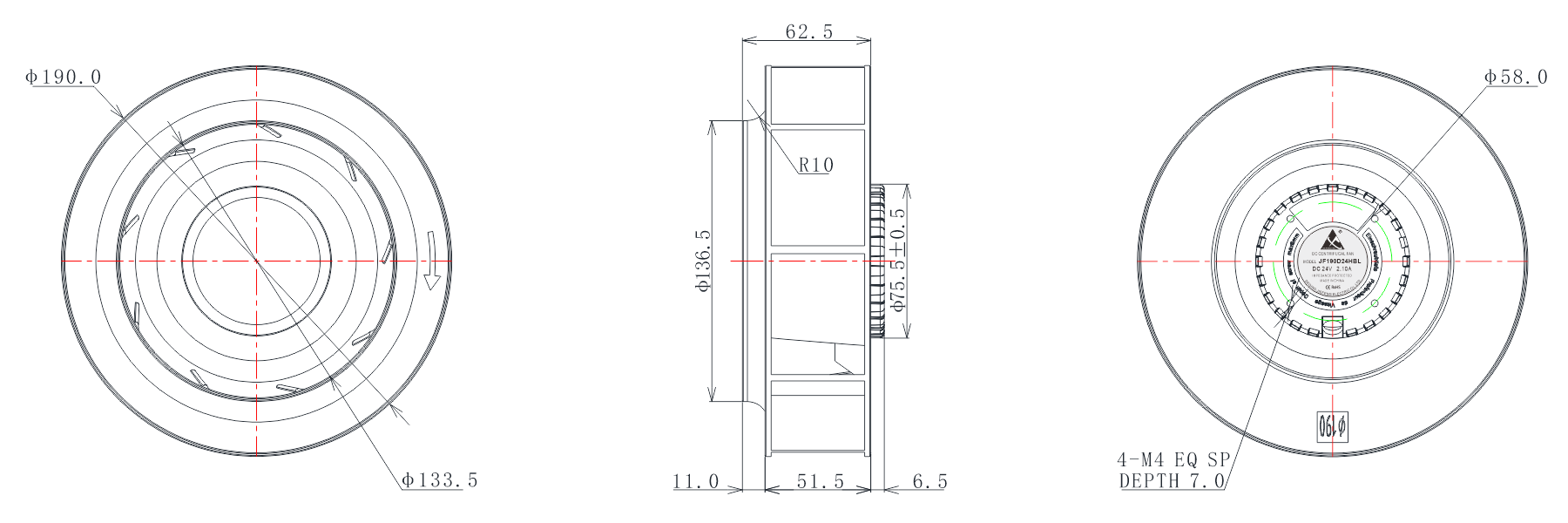

Product dimension drawing:
Unit: mm
Specification Table:
| Model | Rated Voltage | Operating Voltage Range |
Current | Power | Speed | Maximum Airflow | Maximum Air Pressure | Noise | ||
| PART NO. | VDC | VDC | A | W | R.P.M | M³/min | CFM | InH2O | pa | dBA |
| JF190D24LBL | 24 | 18~26.5 | 1.00 | 24.0 | 1900 | 5.28 | 186.50 | 1.63 | 407.20 | 42.8 |
| JF190D24MBL | 24 | 18~26.5 | 2.10 | 50.4 | 2600 | 7.22 | 255.20 | 2.23 | 557.20 | 58.6 |
| JF190D24HBL | 24 | 18~26.5 | 4.70 | 112.8 | 3500 | 9.72 | 343.60 | 3.00 | 750.00 | 78.9 |
| JF190D48LBL | 48 | 36~54 | 0.40 | 19.2 | 1800 | 5.00 | 176.70 | 1.54 | 385.70 | 40.6 |
| JF190D48MBL | 48 | 36~54 | 1.00 | 48.0 | 2600 | 7.22 | 255.20 | 2.23 | 557.20 | 58.6 |
| JF190D48HBL | 48 | 36~54 | 2.50 | 120.0 | 3500 | 9.72 | 343.60 | 3.04 | 760.20 | 78.9 |
Product Parameters
- Product Type
- 离心风机
- Brand
- JIEFENGFAN
- Impeller Material
- 塑料 PBT+28%GF
- Impeller Diameter
- φ190.0 MM
- Overall Size
- φ190.0*69.0 MM
- Mounting Size
- φ58.0 MM
- Mounting Hole Diameter
- M4.0|深度7.0
- Ventilation Opening Size
- φ133.5 MM
- Motor Type
- 无刷电机
- Insulation Class
- B级
- Drive Type
- 滚珠
- Power Type
- 直流
- Rated Voltage
- 24V/48V
- Rated Power
- 24/120 W
- Working Temperature
- -30℃~+70℃
- Working Humidity
- 30%~70%RH
- Speed
- 1900/3500 RPM
- Air Flow
- 186.5/343.6 CFM
- Air Pressure
- 1.63/3.04 inch-H₂O
- Noise Level
- 78.9 dBA
- Protection Grade
- IP43
- Life Span
- 40000 h
- Weight
- 1300.0 g
- Connection Method
- 引线/端子
- Safety Certification
- CE/ROHS
- Custom Function
- RD/FG/PWM/堵转/缓启
