JF175D24HBL
JF175D24HBL from Jiefeng Electric. DC Centrifugual Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM a…
Reliable Thermal Management Technology

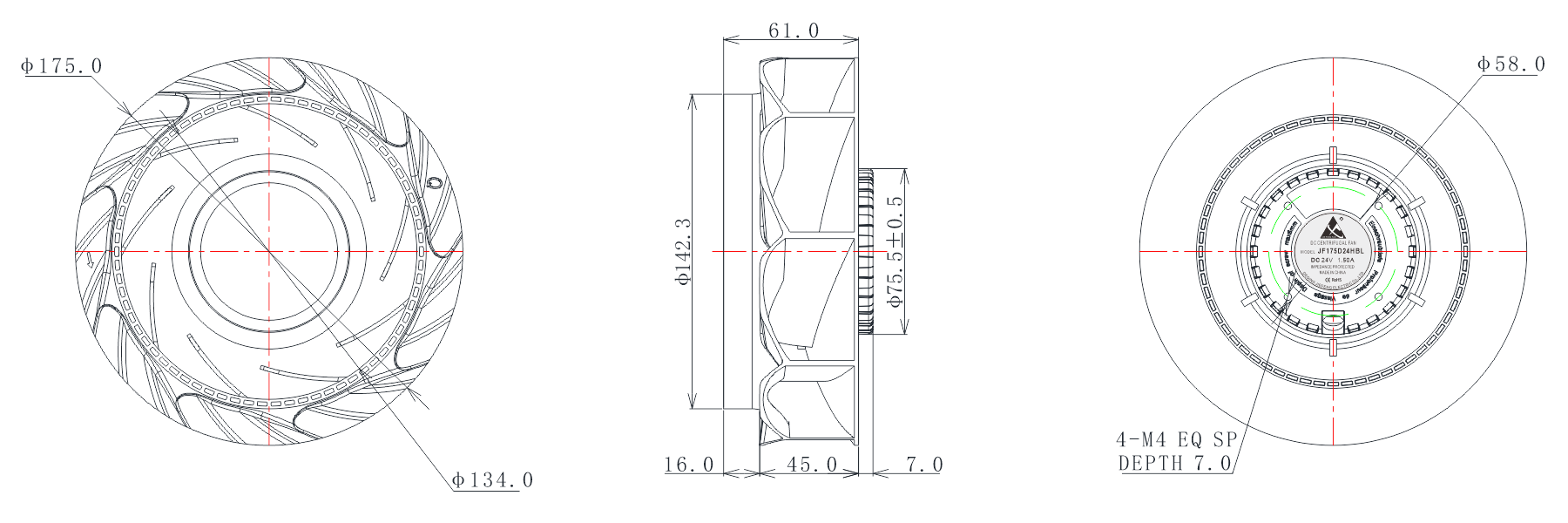

Product dimension drawing:
Unit: mm
Specification Table:
| Model | Rated Voltage | Operating Voltage Range |
Rated Current | Rated Input Power | Speed | Maximum Airflow | Maximum Air Pressure | Noise | ||
| PART NO. | VDC | VDC | AMP | Watt | RPM | M³/min | CFM | InH2O | pa | dBA |
| JF175D12LBL | 12 | 7.5~13.5 | 1.00 | 12.0 | 1500 | 4.56 | 161.30 | 0.39 | 96.86 | 41.8 |
| JF175D12MBL | 12 | 7.5~13.5 | 2.00 | 24.0 | 2000 | 6.13 | 216.64 | 0.68 | 170.07 | 51.2 |
| JF175D12HBL | 12 | 7.5~13.5 | 3.00 | 36.0 | 2500 | 7.54 | 266.35 | 1.05 | 260.70 | 57.2 |
| JF175D12HHBL | 12 | 7.5~13.5 | 4.00 | 48.0 | 3000 | 9.27 | 327.60 | 1.53 | 381.72 | 61.2 |
| JF175D12VHBL | 12 | 7.5~13.5 | 5.00 | 60.0 | 3300 | 9.78 | 345.68 | 1.78 | 443.97 | 64.2 |
| JF175D12HVBL | 12 | 7.5~13.5 | 6.00 | 72.0 | 3600 | 10.83 | 382.75 | 2.12 | 527.38 | 65.8 |
| JF175D24LBL | 24 | 18~26.5 | 0.50 | 12.0 | 1500 | 4.56 | 161.30 | 0.39 | 96.86 | 41.8 |
| JF175D24MBL | 24 | 18~26.5 | 1.00 | 24.0 | 2000 | 6.13 | 216.64 | 0.68 | 170.07 | 51.2 |
| JF175D24HBL | 24 | 18~26.5 | 1.50 | 36.0 | 2500 | 7.54 | 266.35 | 1.05 | 260.70 | 57.2 |
| JF175D24HHBL | 24 | 18~26.5 | 2.00 | 48.0 | 3000 | 9.27 | 327.60 | 1.53 | 381.72 | 61.2 |
| JF175D24VHBL | 24 | 18~26.5 | 2.50 | 60.0 | 3300 | 9.78 | 345.68 | 1.78 | 443.97 | 64.2 |
| JF175D24HVBL | 24 | 18~26.5 | 3.00 | 72.0 | 3600 | 10.83 | 382.75 | 2.12 | 527.38 | 65.8 |
| JF175D48LBL | 48 | 36~54 | 0.25 | 12.0 | 1500 | 4.56 | 161.30 | 0.39 | 96.86 | 41.8 |
| JF175D48MBL | 48 | 36~54 | 0.50 | 24.0 | 2000 | 6.13 | 216.64 | 0.68 | 170.07 | 51.2 |
| JF175D48HBL | 48 | 36~54 | 0.75 | 36.0 | 2500 | 7.54 | 266.35 | 1.05 | 260.70 | 57.2 |
| JF175D48HHBL | 48 | 36~54 | 1.00 | 48.0 | 3000 | 9.27 | 327.60 | 1.53 | 381.72 | 61.2 |
| JF175D48VHBL | 48 | 36~54 | 1.25 | 60.0 | 3300 | 9.78 | 345.68 | 1.78 | 443.97 | 64.1 |
| JF175D48HVBL | 48 | 36~54 | 1.50 | 72.0 | 3600 | 10.83 | 382.75 | 2.12 | 527.38 | 65.8 |
Product Parameters
- Product Type
- 离心风机
- Brand
- JIEFENGFAN
- Impeller Material
- 塑料 PBT+28%GF
- Impeller Diameter
- φ175.0 MM
- Overall Size
- φ175.0*68.0 MM
- Mounting Size
- φ58.0 MM
- Mounting Hole Diameter
- M4.0|深度7.0
- Ventilation Opening Size
- φ134.0 MM
- Motor Type
- 无刷电机
- Insulation Class
- B级
- Drive Type
- 滚珠
- Power Type
- 直流
- Rated Voltage
- 12V/24V/48V
- Rated Power
- 12/72 W
- Working Temperature
- -30℃~+70℃
- Working Humidity
- 30%~70%RH
- Speed
- 1500/3600 RPM
- Air Flow
- 161.3/382.75 CFM
- Air Pressure
- 0.39/2.12 inch-H₂O
- Noise Level
- 65.8 dBA
- Protection Grade
- IP43
- Life Span
- 40000 h
- Weight
- 800.0 g
- Connection Method
- 引线/端子
- Safety Certification
- CE/ROHS
- Custom Function
- RD/FG/PWM/堵转/缓启
