JF160D24HBL
JF160D24HBL from Jiefeng Electric. DC Centrifugual Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM a…
Reliable Thermal Management Technology

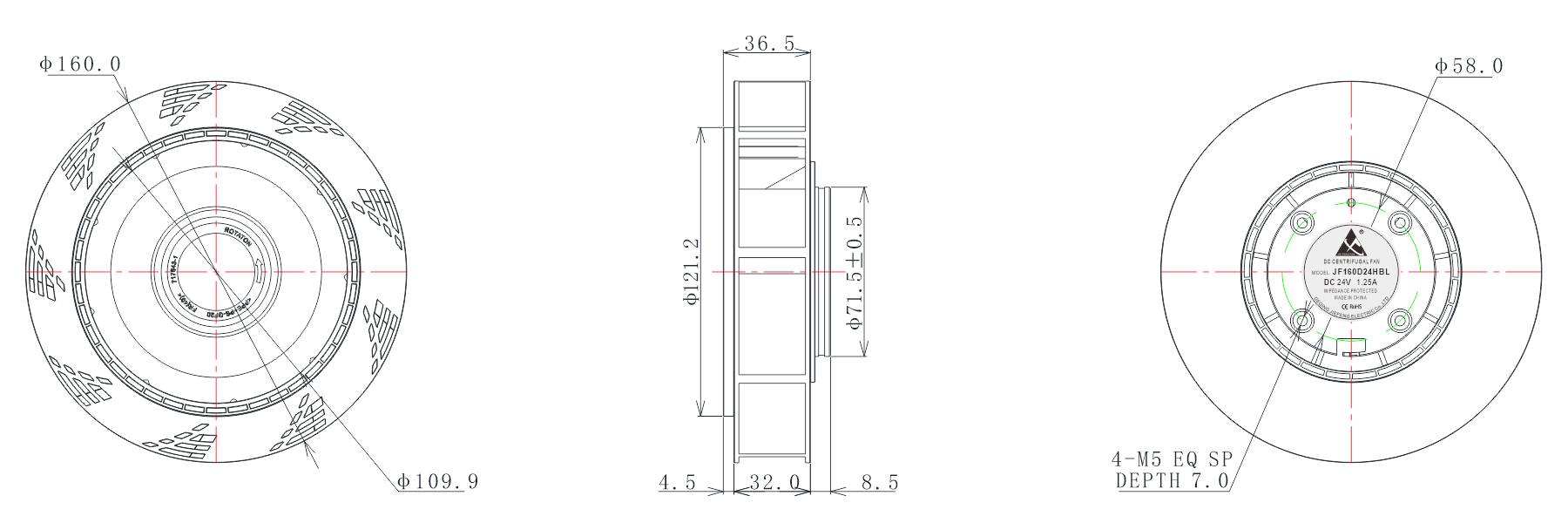

Product dimension drawing:
Unit: mm
Specification Table:
| Model | Rated Voltage | Operating Voltage Range |
Rated Current | Rated Input Power | Speed | Maximum Airflow | Maximum Air Pressure | Noise | ||
| PART NO. | VDC | VDC | AMP | Watt | RPM | M³/min | CFM | InH2O | pa | dBA |
| JF160D24LBL | 24 | 18~26.5 | 0.98 | 23.5 | 2500 | 5.19 | 183.44 | 0.95 | 236.80 | 62.0 |
| JF160D24MBL | 24 | 18~26.5 | 1.25 | 30.0 | 3000 | 6.03 | 213.13 | 1.29 | 320.21 | 65.0 |
| JF160D24HBL | 24 | 18~26.5 | 1.60 | 38.4 | 3500 | 7.34 | 259.34 | 2.05 | 509.21 | 70.0 |
| JF160D48LBL | 48 | 35~52.5 | 0.49 | 23.5 | 2500 | 5.19 | 183.44 | 0.95 | 236.80 | 62.0 |
| JF160D48MBL | 48 | 35~52.5 | 0.63 | 30.0 | 3000 | 6.03 | 213.13 | 1.29 | 320.21 | 65.0 |
| JF160D48HBL | 48 | 35~52.5 | 0.80 | 38.4 | 3500 | 7.34 | 259.34 | 2.05 | 509.21 | 70.0 |
Product Parameters
- Product Type
- 离心风机
- Brand
- JIEFENGFAN
- Impeller Material
- 塑料 PBT+28%GF
- Impeller Diameter
- φ160.0 MM
- Overall Size
- φ160.0*45.0 MM
- Mounting Size
- φ58.0 MM
- Mounting Hole Diameter
- M5.0|深度7.0
- Ventilation Opening Size
- φ109.9 MM
- Motor Type
- 无刷电机
- Insulation Class
- B级
- Drive Type
- 滚珠
- Power Type
- 直流
- Rated Voltage
- 24V/48V
- Rated Power
- 23.5/38.4 W
- Working Temperature
- -30℃~+70℃
- Working Humidity
- 30%~70%RH
- Speed
- 2500/3500 RPM
- Air Flow
- 183.44/259.34 CFM
- Air Pressure
- 0.95/2.05 inch-H₂O
- Noise Level
- 70 dBA
- Protection Grade
- IP43
- Life Span
- 40000 h
- Weight
- 400.0 g
- Connection Method
- 引线/端子
- Safety Certification
- CE/ROHS
- Custom Function
- RD/FG/PWM/堵转/缓启
