JF150D24HBL
JF150D24HBL from Jiefeng Electric. DC Centrifugual Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM a…
Reliable Thermal Management Technology

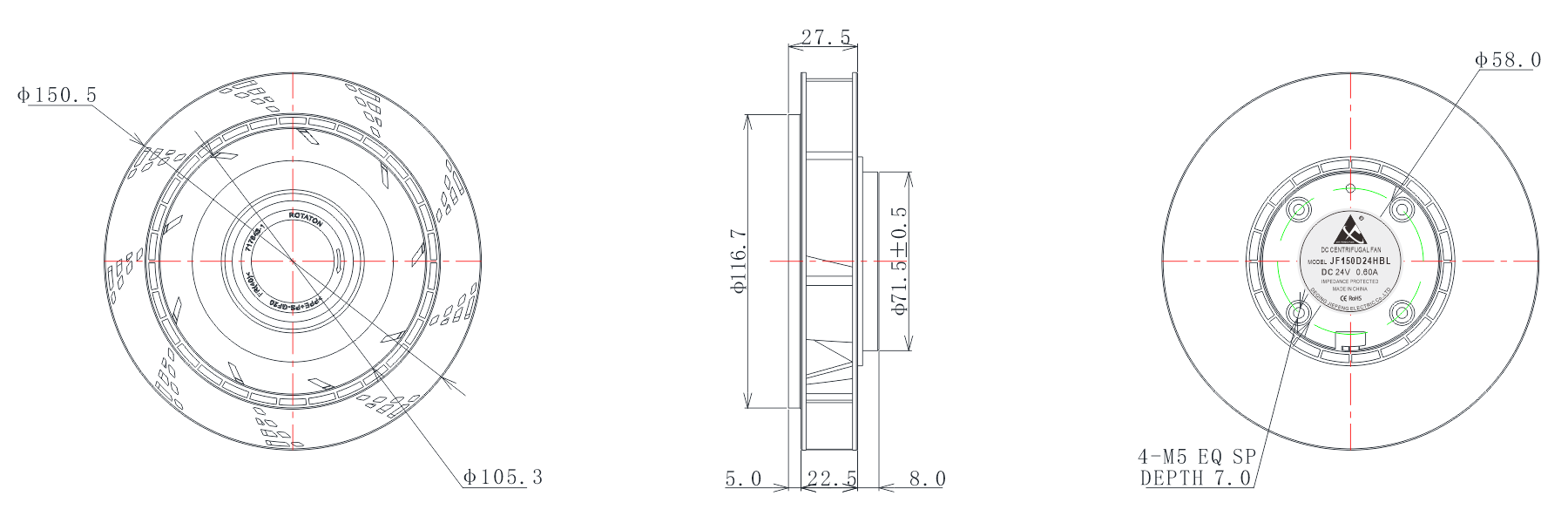

Product dimension drawing:
Unit: mm
Specification Table:
| Model | Rated Voltage | Operating Voltage Range |
Rated Current | Rated Input Power | Speed | Maximum Airflow | Maximum Air Pressure | Noise | ||
| PART NO. | VDC | VDC | AMP | Watt | RPM | M³/min | CFM | InH2O | pa | dBA |
| JF150D24LBL | 24 | 18~26.5 | 0.50 | 12.0 | 2500 | 3.02 | 106.84 | 0.57 | 141.93 | 39.6 |
| JF150D24MBL | 24 | 18~26.5 | 0.60 | 14.4 | 2700 | 3.30 | 116.64 | 0.68 | 170.07 | 43.5 |
| JF150D24HBL | 24 | 18~26.5 | 0.80 | 19.2 | 3800 | 4.79 | 169.16 | 1.36 | 338.14 | 59.3 |
| JF150D48LBL | 48 | 35~52.5 | 0.25 | 12.0 | 2500 | 3.02 | 106.84 | 0.57 | 141.93 | 39.6 |
| JF150D48MBL | 48 | 35~52.5 | 0.30 | 14.4 | 2700 | 3.30 | 116.64 | 0.68 | 170.07 | 42.5 |
| JF150D48HBL | 48 | 35~52.5 | 0.40 | 19.2 | 3800 | 4.79 | 169.16 | 1.36 | 338.14 | 59.3 |
Product Parameters
- Product Type
- 离心风机
- Brand
- JIEFENGFAN
- Impeller Material
- 塑料 PBT+28%GF
- Impeller Diameter
- φ150.5 MM
- Overall Size
- φ150.5*35.5 MM
- Mounting Size
- φ58.0 MM
- Mounting Hole Diameter
- M5.0|深度7.0
- Ventilation Opening Size
- φ105.3 MM
- Motor Type
- 无刷电机
- Insulation Class
- B级
- Drive Type
- 滚珠
- Power Type
- 直流
- Rated Voltage
- 24V/48V
- Rated Power
- 12.0/19.2 W
- Working Temperature
- -30℃~+70℃
- Working Humidity
- 30%~70%RH
- Speed
- 2500/3800 RPM
- Air Flow
- 106.84/169.16 CFM
- Air Pressure
- 0.57/1.36 inch-H₂O
- Noise Level
- 59.3 dBA
- Protection Grade
- IP43
- Life Span
- 40000 h
- Weight
- 330.0 g
- Connection Method
- 引线/端子
- Safety Certification
- CE/ROHS
- Custom Function
- RD/FG/PWM/堵转/缓启
