JF130D24HBL
JF130D24HBL from Jiefeng Electric. DC Centrifugual Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM a…
Reliable Thermal Management Technology

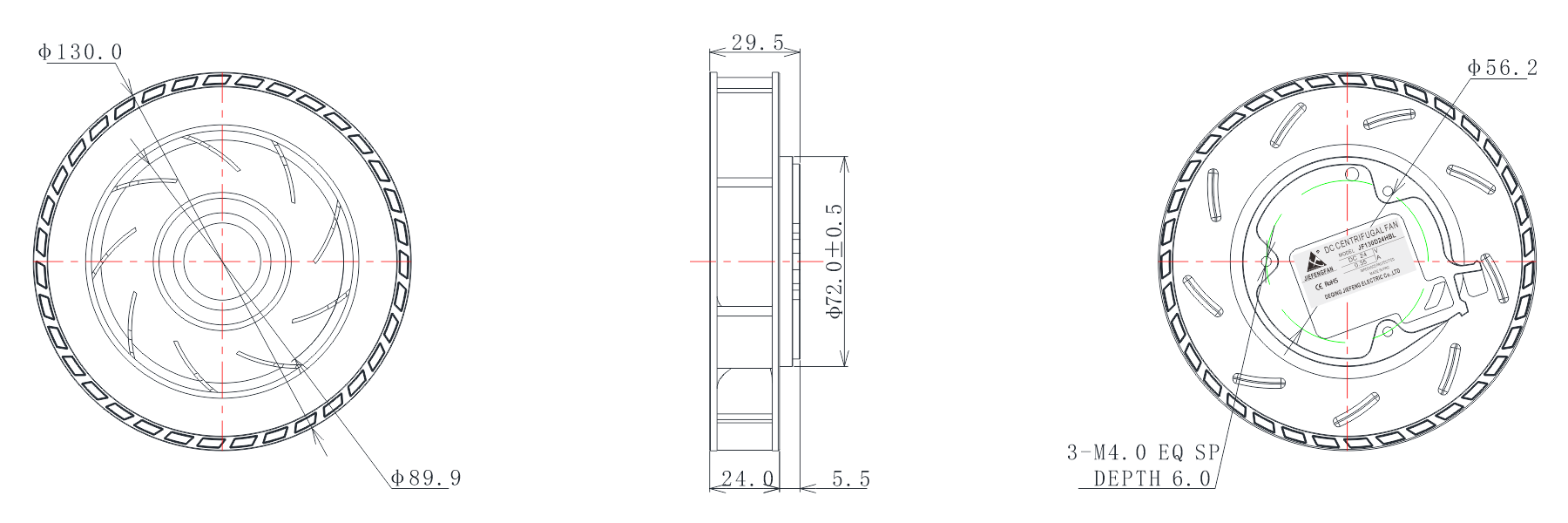

Product dimension drawing:
Unit: mm
Specification Table:
| Model | Rated Voltage | Operating Voltage Range |
Rated Current | Rated Input Power | Speed | Maximum Airflow | Maximum Air Pressure | Noise | ||
| PART NO. | VDC | VDC | AMP | Watt | RPM | M³/min | CFM | InH2O | pa | dBA |
| JF130D12LBL | 12 | 7.5~13.5 | 0.70 | 8.4 | 2500 | 1.82 | 64.48 | 0.69 | 171.81 | 48.0 |
| JF130D12MBL | 12 | 7.5~13.5 | 1.00 | 12.0 | 3000 | 2.26 | 79.80 | 0.81 | 201.69 | 53.0 |
| JF130D12HBL | 12 | 7.5~13.5 | 1.40 | 16.8 | 3500 | 2.72 | 96.00 | 0.93 | 231.65 | 59.0 |
| JF130D24LBL | 24 | 18~26.5 | 0.35 | 8.4 | 2500 | 1.82 | 64.48 | 0.69 | 171.81 | 48.0 |
| JF130D24MBL | 24 | 18~26.5 | 0.50 | 12.0 | 3000 | 2.26 | 79.80 | 0.81 | 201.69 | 53.0 |
| JF130D24HBL | 24 | 18~26.5 | 0.70 | 16.8 | 3500 | 2.72 | 96.00 | 0.93 | 231.65 | 59.0 |
| JF130D48LBL | 48 | 36~54 | 0.18 | 8.4 | 2500 | 1.82 | 64.48 | 0.69 | 171.81 | 48.0 |
| JF130D48MBL | 48 | 36~54 | 0.25 | 12.0 | 3000 | 2.26 | 79.80 | 0.81 | 201.69 | 53.0 |
| JF130D48HBL | 48 | 36~54 | 0.35 | 16.8 | 3500 | 2.72 | 96.00 | 0.93 | 231.65 | 59.0 |
Product Parameters
- Product Type
- 离心风机
- Brand
- JIEFENGFAN
- Impeller Material
- 塑料 PBT+28%GF
- Impeller Diameter
- φ130.0 MM
- Overall Size
- φ130.0*29.5 MM
- Mounting Size
- φ56.2 MM
- Mounting Hole Diameter
- M4.0|深度6.0
- Ventilation Opening Size
- φ89.9 MM
- Motor Type
- 无刷电机
- Insulation Class
- B级
- Drive Type
- 滚珠
- Power Type
- 直流
- Rated Voltage
- 12V/24V/48V
- Rated Power
- 8.4/16.8 W
- Working Temperature
- -30℃~+70℃
- Working Humidity
- 30%~70%RH
- Speed
- 2500/3500 RPM
- Air Flow
- 64.48/96.00 CFM
- Air Pressure
- 0.69/0.93 inch-H₂O
- Noise Level
- 59.0 dBA
- Protection Grade
- IP43
- Life Span
- 40000 h
- Weight
- 280.0 g
- Connection Method
- 引线/端子
- Safety Certification
- CE/ROHS
- Custom Function
- RD/FG/PWM/堵转/缓启
