JF120D24HBL
JF120D24HBL from Jiefeng Electric. DC Centrifugual Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM a…
Reliable Thermal Management Technology

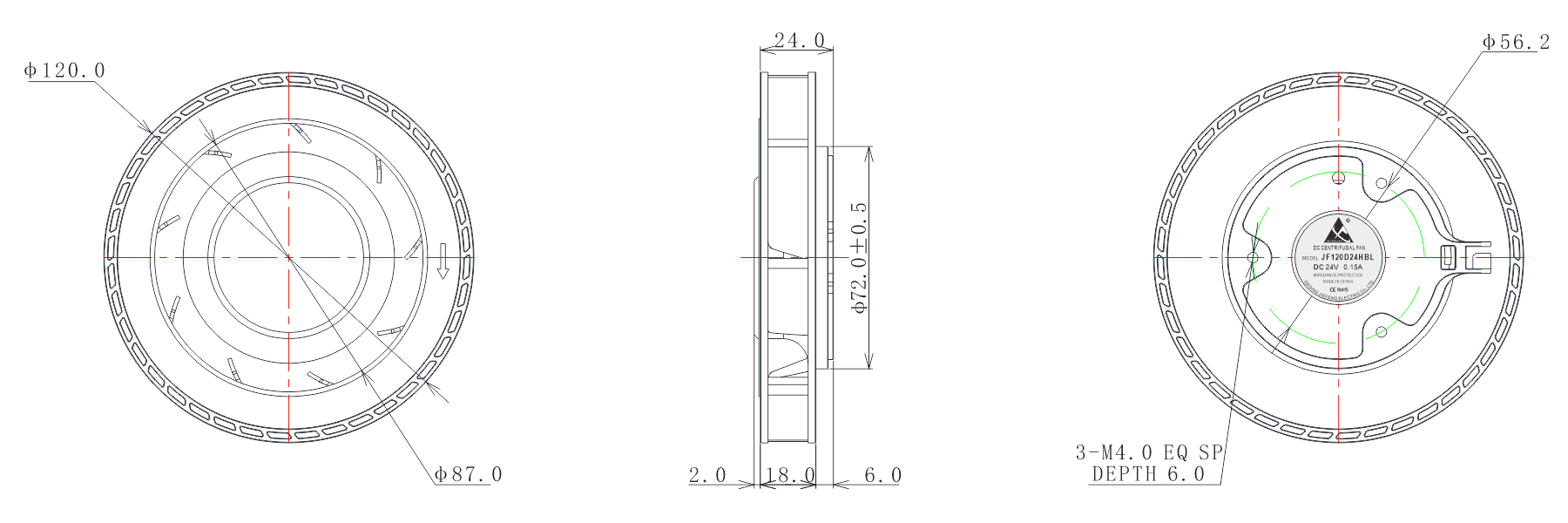

Product dimension drawing:
Unit: mm
Specification Table:
| Model | Rated Voltage | Operating Voltage Range |
Rated Current | Rated Input Power | Speed | Maximum Airflow | Maximum Air Pressure | Noise | ||
| PART NO. | VDC | VDC | AMP | Watt | RPM | M³/min | CFM | InH2O | pa | dBA |
| JF120D12LBL | 12 | 7.5~13.5 | 0.60 | 7.2 | 2500 | 1.62 | 57.29 | 0.55 | 136.70 | 45 |
| JF120D12MBL | 12 | 7.5~13.5 | 0.80 | 9.6 | 3000 | 1.79 | 63.14 | 0.70 | 173.80 | 49.6 |
| JF120D12HBL | 12 | 7.5~13.5 | 1.20 | 14.4 | 3500 | 1.97 | 69.69 | 0.83 | 207.42 | 53.5 |
| JF120D24LBL | 24 | 18~26.5 | 0.30 | 7.2 | 2500 | 1.62 | 57.29 | 0.55 | 136.70 | 45 |
| JF120D24MBL | 24 | 18~26.5 | 0.40 | 9.6 | 3000 | 1.79 | 63.14 | 0.70 | 173.80 | 49.6 |
| JF120D24HBL | 24 | 18~26.5 | 0.60 | 14.4 | 3500 | 1.97 | 69.69 | 0.83 | 207.42 | 53.5 |
| JF120D48LBL | 48 | 36~54 | 0.15 | 7.2 | 2500 | 1.62 | 57.29 | 0.55 | 136.70 | 45 |
| JF120D48MBL | 48 | 36~54 | 0.20 | 9.6 | 3000 | 1.79 | 63.14 | 0.70 | 173.80 | 49.6 |
| JF120D48HBL | 48 | 36~54 | 0.32 | 14.4 | 3500 | 1.97 | 69.69 | 0.83 | 207.42 | 53.5 |
Product Parameters
- Product Type
- 离心风机
- Brand
- JIEFENGFAN
- Impeller Material
- 塑料 PBT+28%GF
- Impeller Diameter
- φ120.0 MM
- Overall Size
- φ120.2*26.0 MM
- Mounting Size
- φ56.2 MM
- Mounting Hole Diameter
- M4.0|深度6.0
- Ventilation Opening Size
- φ87.0 MM
- Motor Type
- 无刷电机
- Insulation Class
- B级
- Drive Type
- 滚珠
- Power Type
- 直流
- Rated Voltage
- 12V/24V/48V
- Rated Power
- 7.2/14.4 W
- Working Temperature
- -30℃~+70℃
- Working Humidity
- 30%~70%RH
- Speed
- 2500/3500 RPM
- Air Flow
- 57.29/69.69 CFM
- Air Pressure
- 0.55/0.83 inch-H₂O
- Noise Level
- 53.5 dBA
- Protection Grade
- IP43
- Life Span
- 40000 h
- Weight
- 155.0 g
- Connection Method
- 引线/端子
- Safety Certification
- CE/ROHS
- Custom Function
- RD/FG/PWM/堵转/缓启
