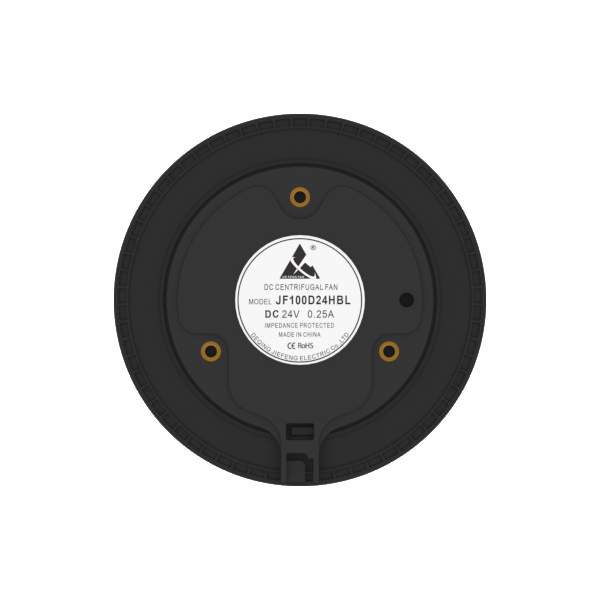

JF100D24HBL
JF100D24HBL from Jiefeng Electric. DC Centrifugual Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM a…
Reliable Thermal Management Technology

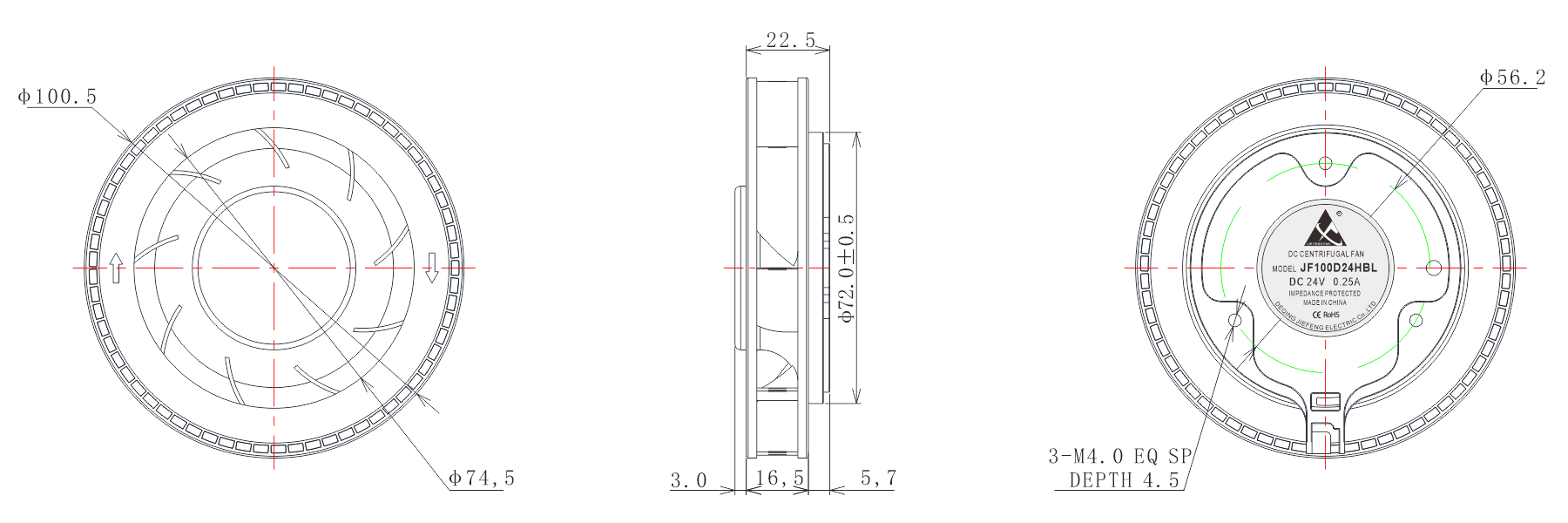

Product dimension drawing:
Unit: mm
Specification Table:
| Model | Rated Voltage | Operating Voltage Range |
Rated Current | Rated Input Power | Speed | Maximum Airflow | Maximum Air Pressure | Noise | ||
| PART NO. | VDC | VDC | AMP | Watt | RPM | M³/min | CFM | InH2O | pa | dBA |
| JF100D12LBL | 12 | 3~13.5 | 0.29 | 3.5 | 2500 | 0.68 | 24.10 | 0.52 | 128.98 | 31.0 |
| JF100D12MBL | 12 | 3~13.5 | 0.35 | 4.2 | 3000 | 0.82 | 29.00 | 0.62 | 154.88 | 37.2 |
| JF100D12HBL | 12 | 3~13.5 | 0.41 | 4.9 | 3500 | 0.96 | 33.80 | 0.73 | 180.53 | 43.5 |
| JF100D12HHBL | 12 | 3~13.5 | 0.47 | 5.6 | 4000 | 1.09 | 38.60 | 0.83 | 206.42 | 49.7 |
| JF100D12VHBL | 12 | 3~13.5 | 0.53 | 6.4 | 4500 | 1.23 | 43.50 | 0.92 | 229.83 | 55.9 |
| JF100D24LBL | 24 | 12~28 | 0.15 | 3.6 | 2500 | 0.68 | 24.10 | 0.52 | 128.98 | 31.0 |
| JF100D24MBL | 24 | 12~28 | 0.18 | 4.3 | 3000 | 0.82 | 29.00 | 0.62 | 154.88 | 37.2 |
| JF100D24HBL | 24 | 12~28 | 0.21 | 5.0 | 3500 | 0.96 | 33.80 | 0.73 | 180.53 | 43.5 |
| JF100D24HHBL | 24 | 12~28 | 0.24 | 5.8 | 4000 | 1.09 | 38.60 | 0.83 | 206.42 | 49.7 |
| JF100D24VHBL | 24 | 12~28 | 0.27 | 6.5 | 4500 | 1.23 | 43.50 | 0.92 | 229.83 | 55.9 |
Product Parameters
- Product Type
- 离心风机
- Brand
- JIEFENGFAN
- Impeller Material
- 塑料 PBT+28%GF
- Impeller Diameter
- φ100.7 MM
- Overall Size
- φ100.7*25.5 MM
- Mounting Size
- φ56.2 MM
- Mounting Hole Diameter
- M4.0|深度4.5
- Ventilation Opening Size
- φ74.3 MM
- Motor Type
- 无刷电机
- Insulation Class
- B级
- Drive Type
- 滚珠
- Power Type
- 直流
- Rated Voltage
- 12V/24V
- Rated Power
- 3.48/6.48 W
- Working Temperature
- -30℃~+70℃
- Working Humidity
- 30%~70%RH
- Speed
- 2500/4500 RPM
- Air Flow
- 24.1/43.5 CFM
- Air Pressure
- 0.52/0.92 inch-H₂O
- Noise Level
- 55.9 dBA
- Protection Grade
- IP43
- Life Span
- 40000 h
- Weight
- 121.0 g
- Connection Method
- 引线/端子
- Safety Certification
- CE/ROHS
- Custom Function
- RD/FG/PWM/堵转/缓启
