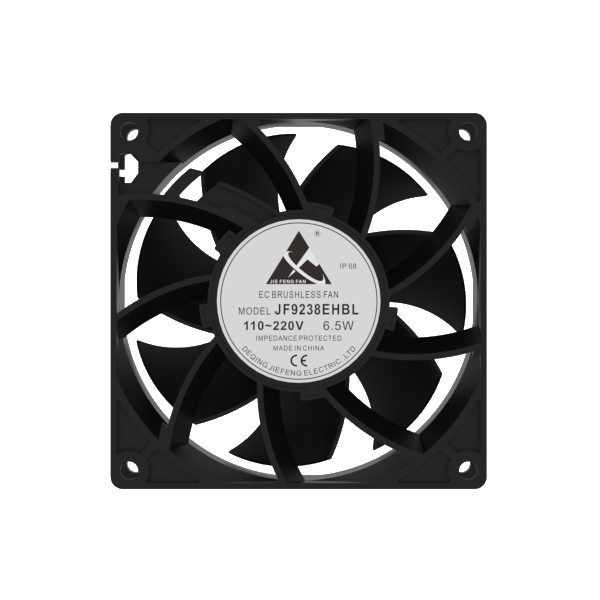

JF9238EHBL-7
Product Parameters:
- Brand：
- JIEFENGFAN
- Frame Type：
- High-Pressure Plastic Frame
- Housing Material：
- Plastic PBT+28%GF
- Impeller Material：
- Plastic PBT+28%GF
- Blade Quantity：
- 7
- Overall Size：
- 92.0*92.0*37.7 MM
- Mounting Size：
- 82.5*82.5 MM
- Mounting Hole Diameter：
- Φ4.3
- Ventilation Opening Size：
- φ88.8 MM
- Motor Type：
- Brushless Motor
- Insulation Class：
- Class B
- Drive Type：
- Ball Bearing
- Power Type：
- EC
- Rated Voltage：
- 110V/220V
- Rated Power：
- 4.5/8.3 W
- Working Temperature：
- -30℃~+70℃
- Working Humidity：
- 30%~70%RH
- Speed：
- 3000/4000
- Air Flow：
- 57.24/75.18 CFM
- Air Pressure：
- 0.24/0.39 inch-H₂O
- Noise Level：
- 47.1 dBA
- Protection Grade：
- IP68
- Life Span：
- 40000 h
- Weight：
- 175.0 g
- Connection Method：
- Lead Wire
- Safety Certification：
- CE/ROHS
- Custom Function：
- RD/FG/PWM/Locked Rotor Protection/Soft Start

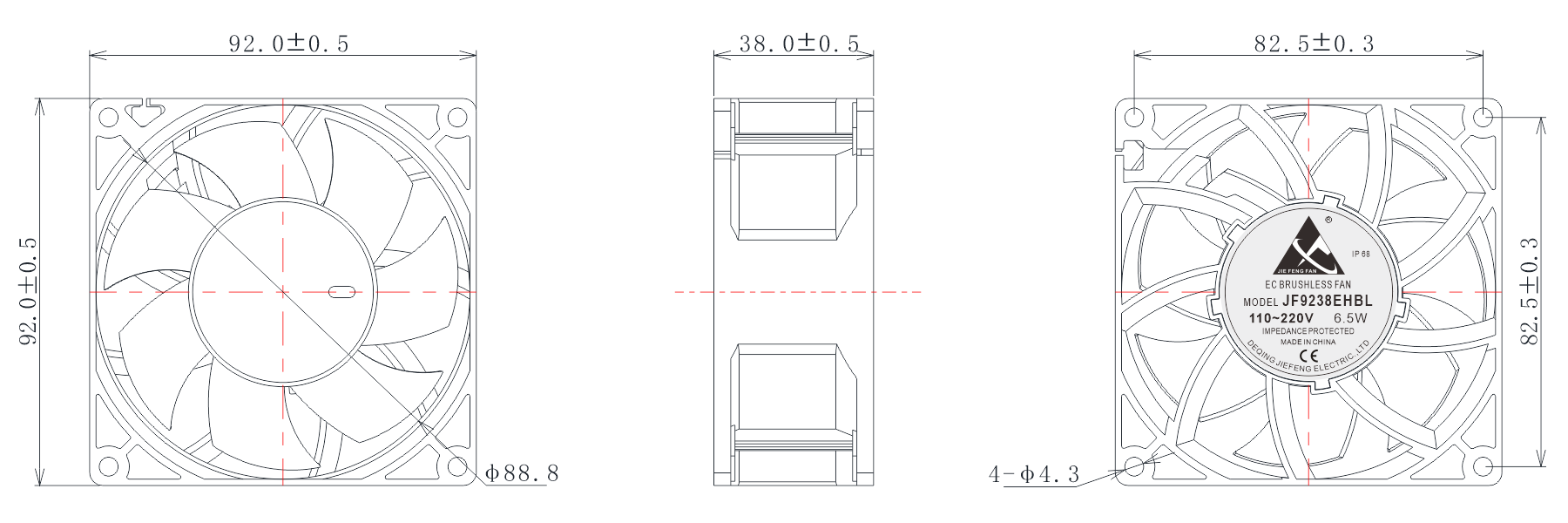

Product dimension drawing:
Unit: mm
Specification Table:
| Model | Voltage | Operating Voltage Range |
Current | Power | Speed | Airflow | Pressure | Noise | ||
| PART.NO. | VDC | VDC | AMP | Watt | RPM | M³/min | CFM | mmH2O | InH2O | dBA |
| JF9238D12LBL | 12 | 8.5～13.5 | 0.85 | 10.20 | 3000 | 1.64 | 57.98 | 5.59 | 0.22 | 42.7 |
| JF9238D12MBL | 12 | 8.5～13.5 | 0.98 | 11.80 | 3500 | 2.01 | 70.86 | 8.26 | 0.33 | 48.0 |
| JF9238D12HBL | 12 | 8.5～13.5 | 1.08 | 13.00 | 4000 | 2.36 | 83.51 | 11.68 | 0.46 | 51.0 |
| JF9238D12HHBL | 12 | 8.5～13.5 | 1.21 | 14.50 | 4500 | 2.66 | 94.09 | 14.25 | 0.56 | 55.1 |
| JF9238D24LBL | 24 | 18～26.5 | 0.43 | 10.20 | 3000 | 1.64 | 57.98 | 5.59 | 0.22 | 42.7 |
| JF9238D24MBL | 24 | 18～26.5 | 0.49 | 11.80 | 3500 | 2.01 | 70.86 | 8.26 | 0.33 | 48.0 |
| JF9238D24HBL | 24 | 18～26.5 | 0.54 | 13.00 | 4000 | 2.36 | 83.51 | 11.68 | 0.46 | 51.0 |
| JF9238D24HHBL | 24 | 18～26.5 | 0.60 | 14.50 | 4500 | 2.66 | 94.09 | 14.25 | 0.56 | 55.1 |
