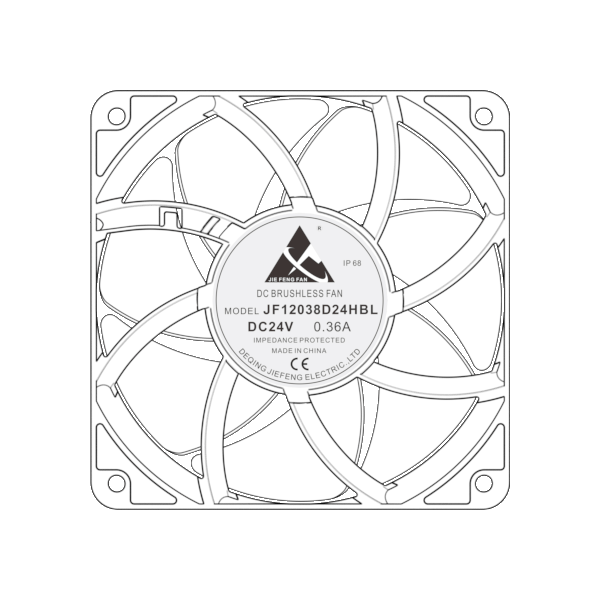

JF12038D24HBL-7
Product Parameters:
- Brand：
- JIEFENGFAN
- Frame Type：
- High-Pressure Plastic Frame
- Housing Material：
- Plastic PBT+28%GF
- Impeller Material：
- Plastic PBT+28%GF
- Number of Blades：
- 7
- Overall Size：
- 120.0*120.0*37.7 MM
- Mounting Size：
- 105.0*105.0 MM
- Mounting Hole Diameter：
- Φ4.3
- Ventilation Opening Size：
- φ116.5 MM
- Motor Type：
- Brushless Motor
- Insulation Class：
- Class B
- Drive Type：
- Ball Bearing
- Power Type：
- DC
- Rated Voltage：
- 12V/24V/48V
- Rated Power：
- 5.4/22.8 W
- Working Temperature：
- -30℃~+70℃
- Working Humidity：
- 30%~70%RH
- Speed：
- 2500/5000 RPM
- Air Flow：
- 96.55/189.97 CFM
- Static Pressure：
- 0.23/0.96 inch-H₂O
- Noise Level：
- 62.1 dBA
- Protection Grade：
- IP68
- Service Life：
- 40000 h
- Weight：
- 300.0 g
- Connection Method：
- Lead Wire
- Safety Certification：
- CE/ROHS
- Custom Function：
- RD/FG/PWM/Locked Rotor Protection/Soft Start
Product dimension drawing:
Unit: mm
Specification Table:
| Model | Voltage | Operating Voltage Range |
Current | Power | Speed | Airflow | Pressure | Noise | ||
| PART.NO. | VDC | VDC | AMP | Watt | RPM | M³/min | CFM | mmH2O | InH2O | dBA |
| JF12038D12LBL | 12 | 8.5～13.5 | 0.45 | 5.40 | 2500 | 2.73 | 96.55 | 5.92 | 0.23 | 43.4 |
| JF12038D12LMBL | 12 | 8.5～13.5 | 0.72 | 8.60 | 3000 | 3.15 | 111.26 | 8.66 | 0.34 | 47.7 |
| JF12038D12MBL | 12 | 8.5～13.5 | 1.13 | 13.50 | 3500 | 3.74 | 132.14 | 11.94 | 0.47 | 52.8 |
| JF12038D12LHBL | 12 | 8.5～13.5 | 1.40 | 16.80 | 4000 | 4.33 | 152.89 | 15.47 | 0.61 | 54.5 |
| JF12038D12MHBL | 12 | 8.5～13.5 | 1.63 | 19.60 | 4500 | 4.79 | 169.37 | 19.74 | 0.78 | 58.1 |
| JF12038D12HBL | 12 | 8.5～13.5 | 1.90 | 22.80 | 5000 | 5.38 | 189.97 | 24.41 | 0.96 | 62.1 |
| JF12038D24LBL | 24 | 18～26.5 | 0.23 | 5.40 | 2500 | 2.73 | 96.55 | 5.92 | 0.23 | 43.4 |
| JF12038D24LMBL | 24 | 18～26.5 | 0.36 | 8.60 | 3000 | 3.15 | 111.26 | 8.66 | 0.34 | 47.7 |
| JF12038D24MBL | 24 | 18～26.5 | 0.56 | 13.50 | 3500 | 3.74 | 132.14 | 11.94 | 0.47 | 52.8 |
| JF12038D24LHBL | 24 | 18～26.5 | 0.70 | 16.80 | 4000 | 4.33 | 152.89 | 15.47 | 0.61 | 54.5 |
| JF12038D24MHBL | 24 | 18～26.5 | 0.82 | 19.60 | 4500 | 4.79 | 169.37 | 19.74 | 0.78 | 58.1 |
| JF12038D24HBL | 24 | 18～26.5 | 0.95 | 22.80 | 5000 | 5.38 | 189.97 | 24.41 | 0.96 | 62.1 |
| JF12038D48LBL | 48 | 36～54 | 0.11 | 5.40 | 2500 | 2.73 | 96.55 | 5.92 | 0.23 | 43.4 |
| JF12038D48LMBL | 48 | 36～54 | 0.18 | 8.60 | 3000 | 3.15 | 111.26 | 8.66 | 0.34 | 47.7 |
| JF12038D48MBL | 48 | 36～54 | 0.28 | 13.50 | 3500 | 3.74 | 132.14 | 11.94 | 0.47 | 52.8 |
| JF12038D48LHBL | 48 | 36～54 | 0.35 | 16.80 | 4000 | 4.33 | 152.89 | 15.47 | 0.61 | 54.5 |
| JF12038D48MHBL | 48 | 36～54 | 0.41 | 19.60 | 4500 | 4.79 | 169.37 | 19.74 | 0.78 | 58.1 |
| JF12038D48HBL | 48 | 36～54 | 0.48 | 22.80 | 5000 | 5.38 | 189.97 | 24.41 | 0.96 | 62.1 |
