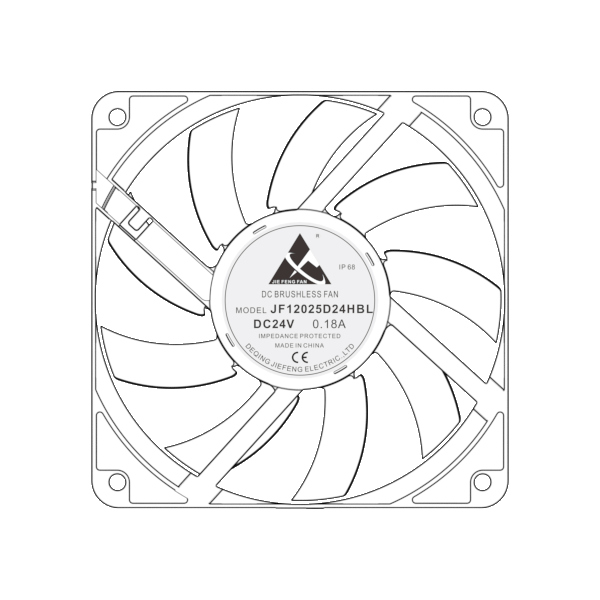

JF12025D24HBL-9
JF12025D24HBL-9 from Jiefeng Electric. DC Axial Waterproof Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling application…
Product overview
Product dimension drawing: Unit: mm Specification Table: Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise PART.NO. VDC VDC AMP Watt RPM M ³ /min CFM mmH2O InH2O dBA JF12025D12LBL 12 8.5～13.5 0.20 2.40 1500 1.83 64.63 2.08 0.08 30.9 JF12025D12LMBL 12 8.5～13.5 0.30 3.60 2000 2.18 77.03 2.77 0.11 36.9 JF12025D12MBL 12 8.5～13.5 0.35 4.20 2500 2.45 86.74 4.32 0.17 42.5 JF12025D12LHBL 12 8.5～13.5 0.45 5.40 3000 2.75 97.32 5.36 0.21 47.5 JF12025D24LBL 24 18～26.5 0.10 2.40 1500 1.83 64.63 2.08 0.08 30.9 JF12025D24LMBL 24 18～26.5 0.15 3.60 2000 2.18 77.03 2.77 0.11 36.9 JF12025D24MBL 24 18～26.5 0.18 4.20 2500 2.45 86.74 4.32 0.17 42.5 JF12025D24LHBL 24 18～26.5 0.23 5.40 3000 2.75 97.32 5.36 0.21 47.5 JF12025D48LBL 48 36～54 0.05 2.40 1500 1.83 64.63 2.08 0.08 30.9 JF12025D48LMBL 48 36～54 0.08 3.60 2000 2.18 77.03 2.77 0.11 36.9 JF12025D48MBL 48 36～54 0.09 4.20 2500 2.45 86.74 4.32 0.17 42.5 JF12025D48LHBL 48 36～54 0.11 5.40 3000 2.75 97.32 5.36 0.21 47.5
Product specifications
- productType
- 防水轴流风机
- brand
- JIEFENGFAN
- housingType
- 普通塑胶框
- housingMaterial
- 塑料PBT+28%GF
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 9
- overallSize
- 120.2*120.2*27.8 MM
- mountingSize
- 105.0*105.0 MM
- mountingHoleDiameter
- Φ4.3
- Ventilation Opening Size
- φ118.0 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 滚珠
- powerType
- 直流
- ratedVoltage
- 12V/24V/48V
- ratedPower
- 2.4/5.4 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 1500/3000 RPM
- airFlow
- 64.63/97.32 CFM
- airPressure
- 0.08/0.21 inch-H₂O
- noiseLevel
- 47.5 dBA
- protectionGrade
- IP68
- lifeSpan
- 40000 h
- weight
- 175.0 g
- wiringMethod
- 引线
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
