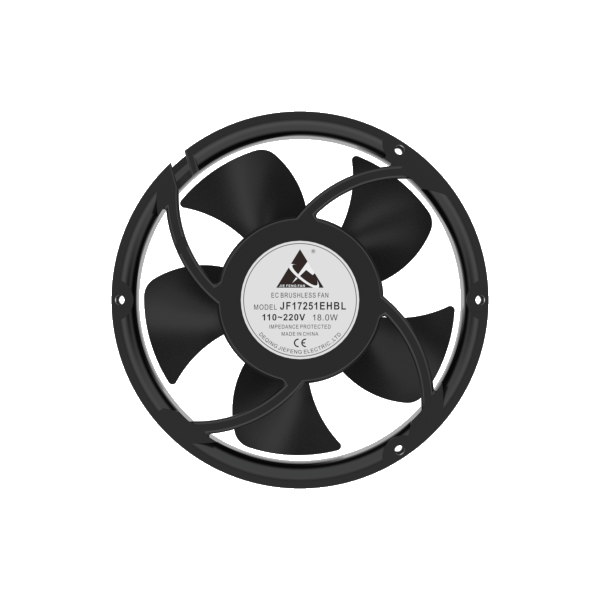

JF17251EHBL-5(Round)
Product Parameters:
- Brand：
- JIEFENGFAN
- Frame Type：
- Metal框
- Housing Material：
- ADC/12
- Surface Treatment：
- Electrophoresis
- Impeller Material：
- Plastic PBT+28%GF
- Blade Quantity：
- 5
- Overall Size：
- φ172.0*50.9 MM
- Mounting Size：
- 162.0*162.0 MM
- Mounting Hole Diameter：
- Φ3.9
- Ventilation Opening Size：
- φ149.5 MM
- Motor Type：
- Brushless Motor
- Insulation Class：
- Class B
- Drive Type：
- Ball Bearing
- Power Type：
- EC
- Rated Voltage：
- 110V/220V
- Rated Power：
- 10.0/25.0 W
- Working Temperature：
- -30℃~+70℃
- Working Humidity：
- 30%~70%RH
- Speed：
- 2000/4000 RPM
- Air Flow：
- 147.45/289.61 CFM
- Air Pressure：
- 0.29/0.97 inch-H₂O
- Noise Level：
- 58.4 dBA
- Protection Grade：
- IP43
- Life Span：
- 30000/50000 h
- Weight：
- 630.0 g
- Connection Method：
- Lead Wire
- Safety Certification：
- CE/ROHS
- Custom Function：
- RD/FG/PWM/Locked Rotor Protection/Soft Start

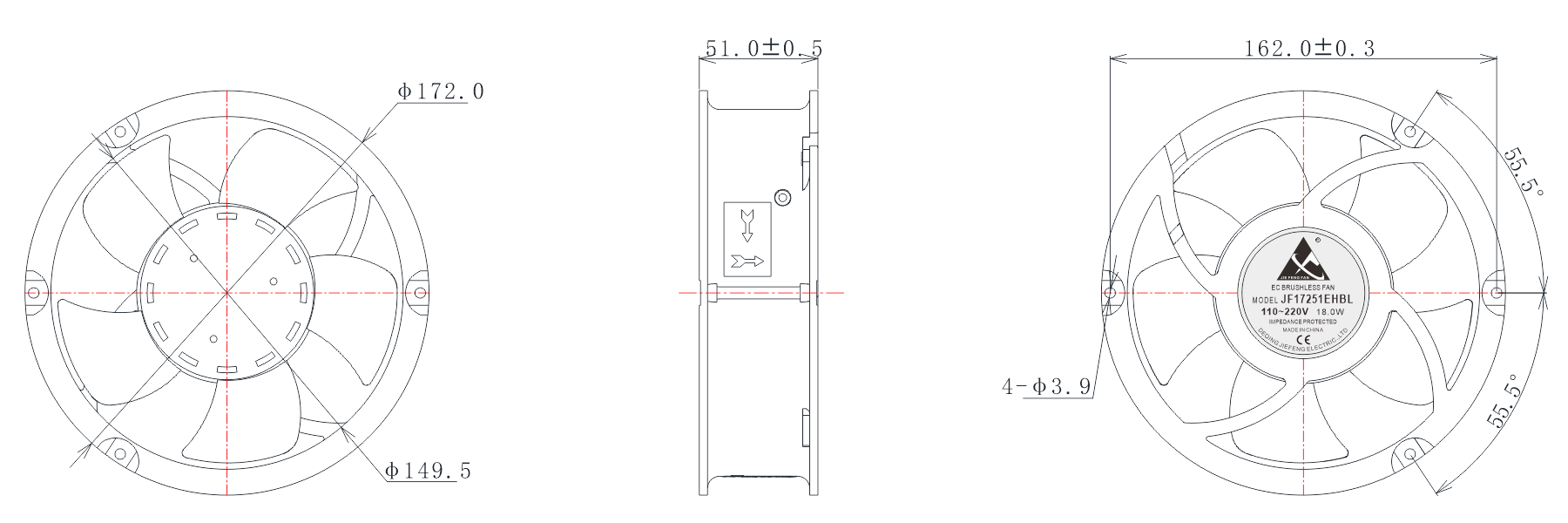

Product dimension drawing:
Unit: mm
Specification Table:
| Model | Voltage | Operating Voltage Range |
Power | Speed | Airflow | Pressure | Noise | ||
| PART.NO. | VAC/DC | VAC/DC | Watt | RPM | M³/min | CFM | mmH2O | InH2O | dBA |
| JF17251ELBL | 110~220 | 85～260 | 10.00 | 2000 | 4.173 | 147.45 | 7.37 | 0.29 | 39.30 |
| JF17251EMBL | 110~220 | 85～260 | 12.00 | 2500 | 5.140 | 181.63 | 10.67 | 0.42 | 45.90 |
| JF17251EHBL | 110~220 | 85～260 | 18.00 | 3000 | 6.085 | 215.01 | 13.72 | 0.54 | 49.60 |
| JF17251EHHBL | 110~220 | 85～260 | 19.00 | 3500 | 7.141 | 252.34 | 18.80 | 0.74 | 53.90 |
| JF17251EVHBL | 110~220 | 85～260 | 25.00 | 4000 | 8.196 | 289.61 | 24.64 | 0.97 | 58.40 |
