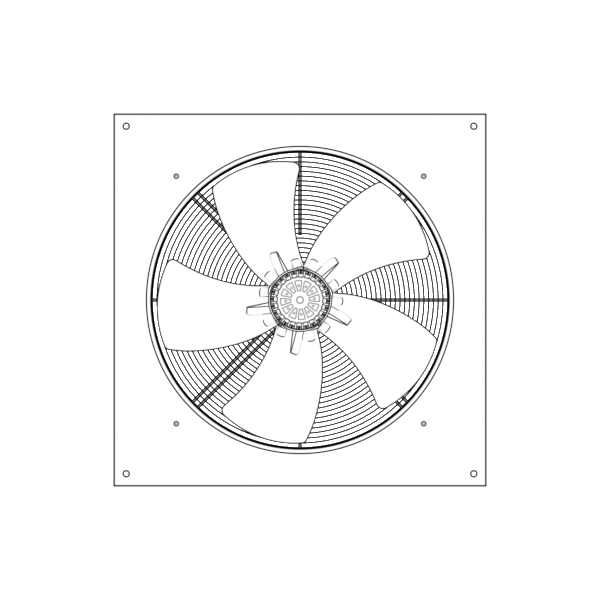

YWF-4E630S-5FA
Product Parameters:
- Brand：
- JIEFENGFAN
- Frame Type：
- Panel Type
- Housing Material：
- Steel Sheet DC01/Q195
- Surface Treatment：
- Powder Coating
- Impeller Material：
- Steel Sheet Q195
- Impeller Diameter：
- φ630.0 MM
- Number of Blades：
- 5
- Overall Size：
- 805.0*805.0*217.0 MM
- Mounting Size：
- φ750.0*750.0 MM
- Mounting Hole Diameter：
- Φ10.0
- Ventilation Opening Size：
- φ645.0 MM
- Motor Type：
- Induction Asynchronous External Rotor Motor
- Insulation Class：
- Class F
- Drive Type：
- Ball Bearing
- Power Type：
- AC
- Rated Voltage：
- 110V/220V/380V
- Capacitor Model：
- 16 μf
- Rated Power：
- 520/1010 W
- Working Temperature：
- -30℃~+60℃
- Working Humidity：
- 30%~70%RH
- Speed：
- 900/1540 RPM
- Air Flow：
- 3296.0/6474.4 CFM
- Static Pressure：
- 0.06/0.44 inch-H₂O
- Noise Level：
- 75 dBA
- Protection Grade：
- IP44
- Service Life：
- 30000 h
- Weight：
- 15.0 kg
- Connection Method：
- Lead Wire / Terminal
- Safety Certification：
- CE/ROHS
- Custom Function：
- Dual Voltage, Adjustable Speed
Product dimension drawing：
Unit: mm
Specification Table:
| Model | Voltage VAC | Freq Hz | Current AMP | Power Watt | Capacitor | Speed RPM | Airflow | Pst | Temperature | Noise dBA | Weight |
| Type | V | Hz | A | W | μF | RPM | m³/h | Pa | Min/Max ℃ | dB(A) | Kg |
| YWF4E-630S-5 | 220 | 50 | 3.70 | 850.00 | 16 | 1360 | 6500/10800 | 30 | -30/+60 | 74 | 15 |
| 60 | 5.34 | 1150.00 | 1500 | 6600/11000 | 60 | 75 | |||||
| YWF4D-630S-5 | 380 | 50 | 1.80 | 850.00 | / | 1350 | 6500/10800 | 30 | -30/+60 | 74 | |
| 60 | 2.00 | 1010.00 | 1540 | 6600/11000 | 90 | 75 | |||||
| YWF6E-630S-5 | 220 | 50 | 2.50 | 520.00 | 12 | 900 | 5600/9300 | 15 | -30/+60 | 67 | |
| 60 | 3.25 | 705.00 | 1050 | 6300/10500 | 110 | 71 | |||||
| YWF6D-630S-5 | 380 | 50 | 1.40 | 550.00 | / | 900 | 5600/9300 | 15 | -30/+60 | 67 | |
| 60 | 1.56 | 740.00 | 1060 | 6300/10500 | 110 | 71 |
